OnCell G3100 Series Getting Started
2-7

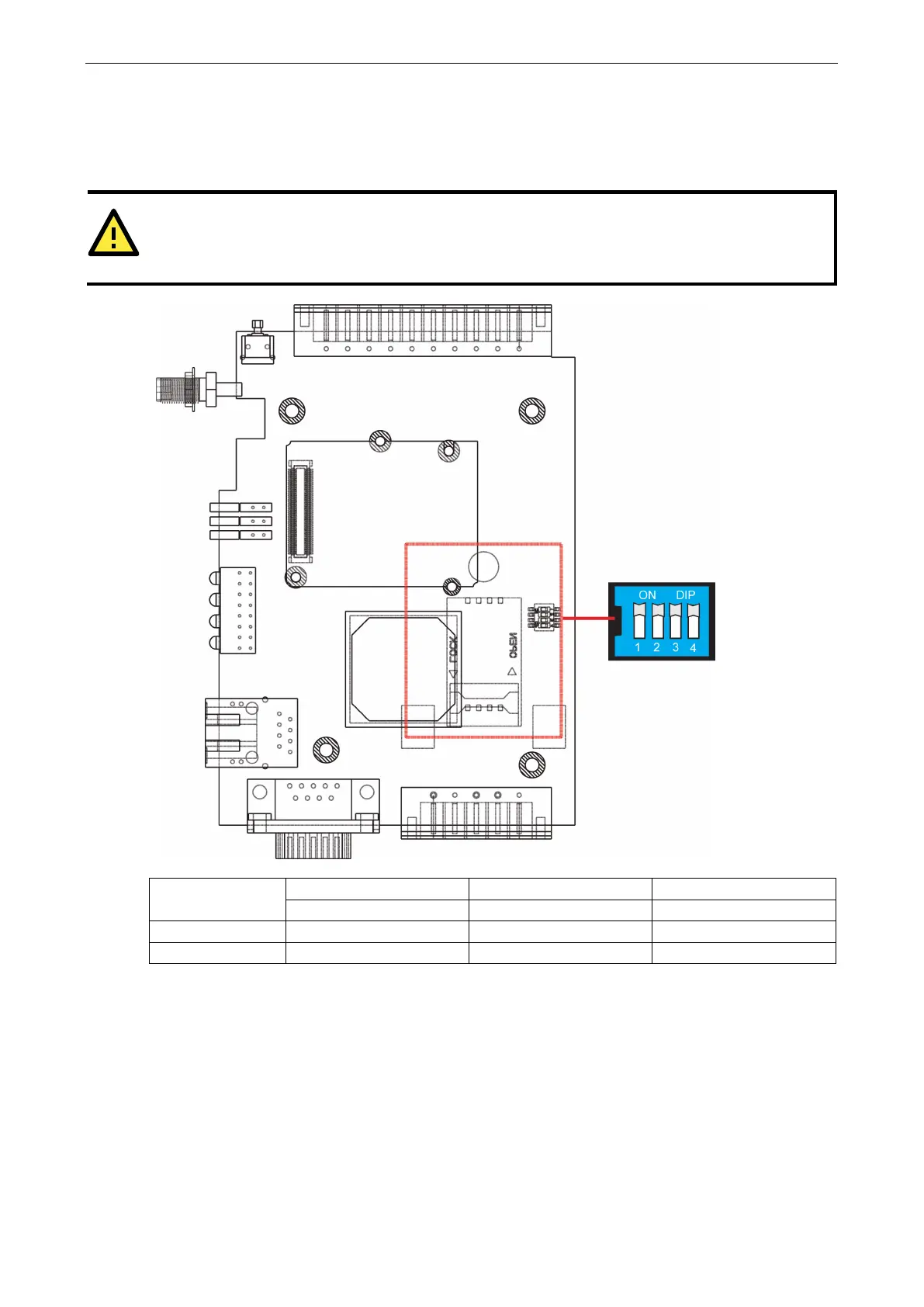

• To set the termination resistor to 150 K
Ω
, make sure both of the assigned DIP switches are in the OFF
position. This is the default setting.
• To set the termination resistor to 1 K
Ω
, make sure both of the assigned DIP switches are in the ON
position.
ATTENTION
Do
not use the 1 KΩ setting on the OnCell when using the RS-232 interface. Doing so will degrade the RS-
232
signals
and shorten the maximum allowed communication distance.
SW 1 2 3
Pull High Pull Low Terminator
ON 1 KΩ 1 KΩ 120 KΩ
OFF 150 KΩ 150 KΩ –
