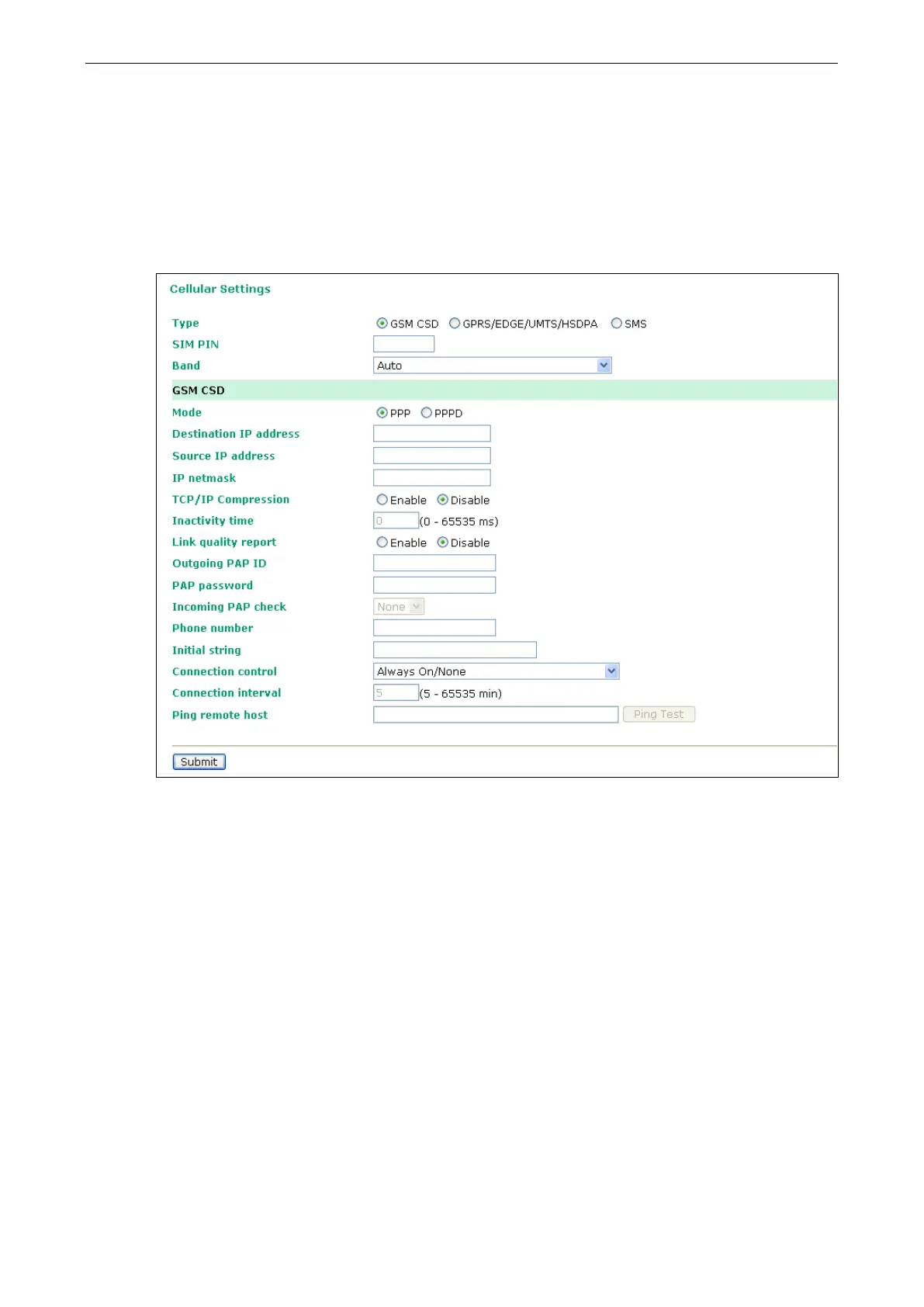

OnCell G3100 Series Cellular Network Settings
SIM PIN: This is a pin code that locks the SIM card until you enter the correct code. Use the pin to protect your
account. The default code is set by the Service Provider. Note that a cell phone must be used to change the PIN.
Selecting the Radio Band: Although GSM-900 and GSM-1800 are used in most parts of the world, operators
in United States, Canada, and many other countries in the Americas use GSM-800, GSM-850, GSM-1900, AWS
1700, or GSM-2100. The GSM/GPRS/EDGE/UMTS/HSPA band for the module is configured to auto by default.
GSM or GSM (CSD) Operation Mode
PPP Mode: PPP provides standard PPP dial-out service.
PPPD Mode: PPPD (PPP Daemon) is used for dial-in services, since it provides PPP services only when
receiving a request from a remote PC.
Destination IP address, Source IP address, IP netmask: If you do not configure these three parameters,
they will be filled in automatically by the remote side of the connection.
TCP/IP compression (default=Disable): The setting of this field depends on whether the remote user’s
application requests compression.
Inactivity time (default=0 ms): This field specifies the idle time setting for auto-disconnection. A setting of
0 ms will cause the port to remain connected even if idle.
Link quality report (default=Disable): Setting this field to Enable allows the OnCell G3100 to check the
PPP connection status with a base station that supports link monitoring.
Outgoing PAP ID: This is the dial-out user ID account.
PAP password: This is the dial-out user password.
Incoming PAP check (default=None): This field allows you to configure the method used, if any, to verify
a user’s ID and authorization.
