OnCell G3100 Series Configuring Virtual Modem Mode

10-3

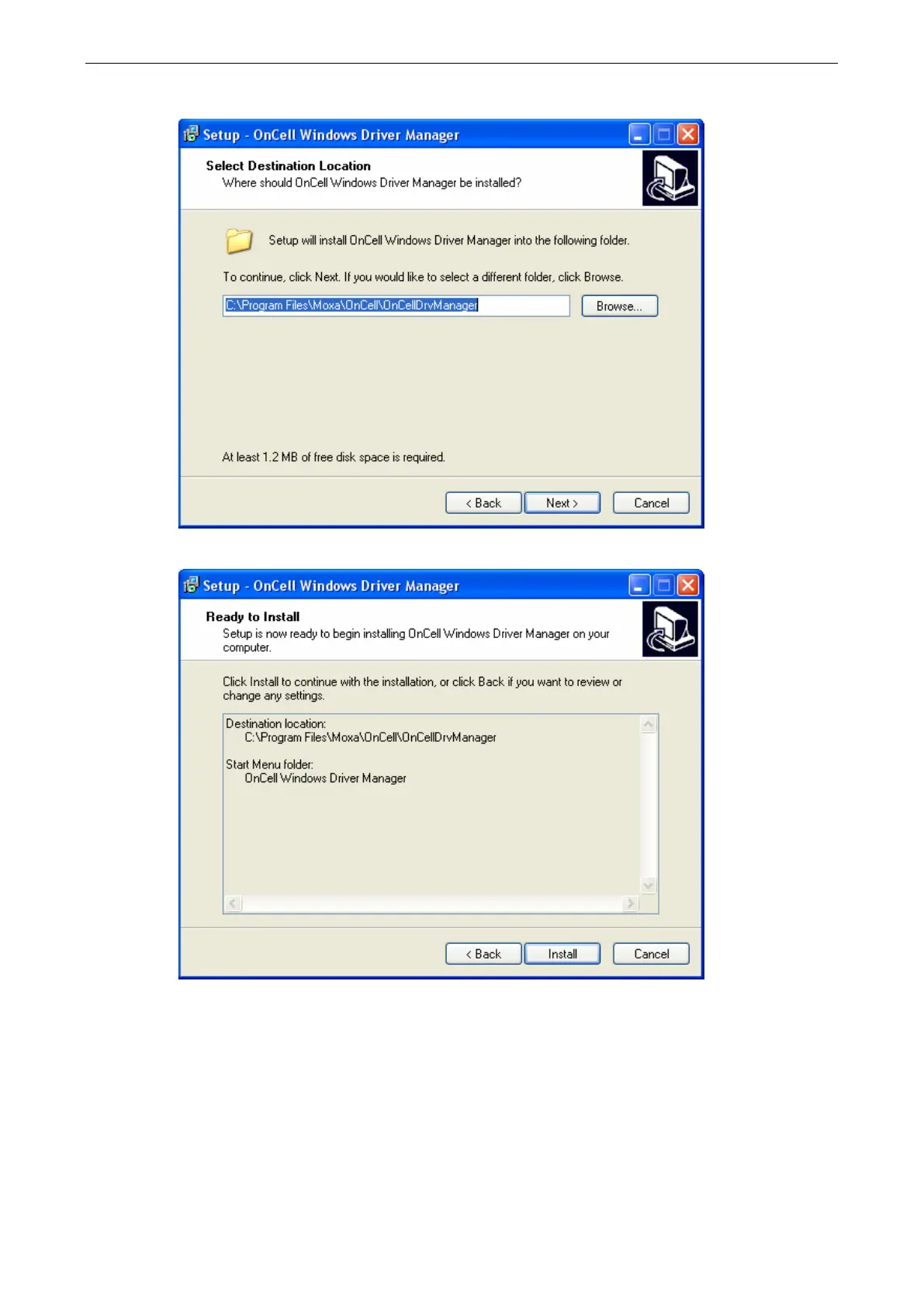

3. Click Next to install program files to the default directory, or click Browse to select an alternate location.

4. The Setup window will display a summary of the installation options. Click Install to begin the installation.
