4 Handling the printer VJ-1624/1624W OPERATION MANUAL
4-20

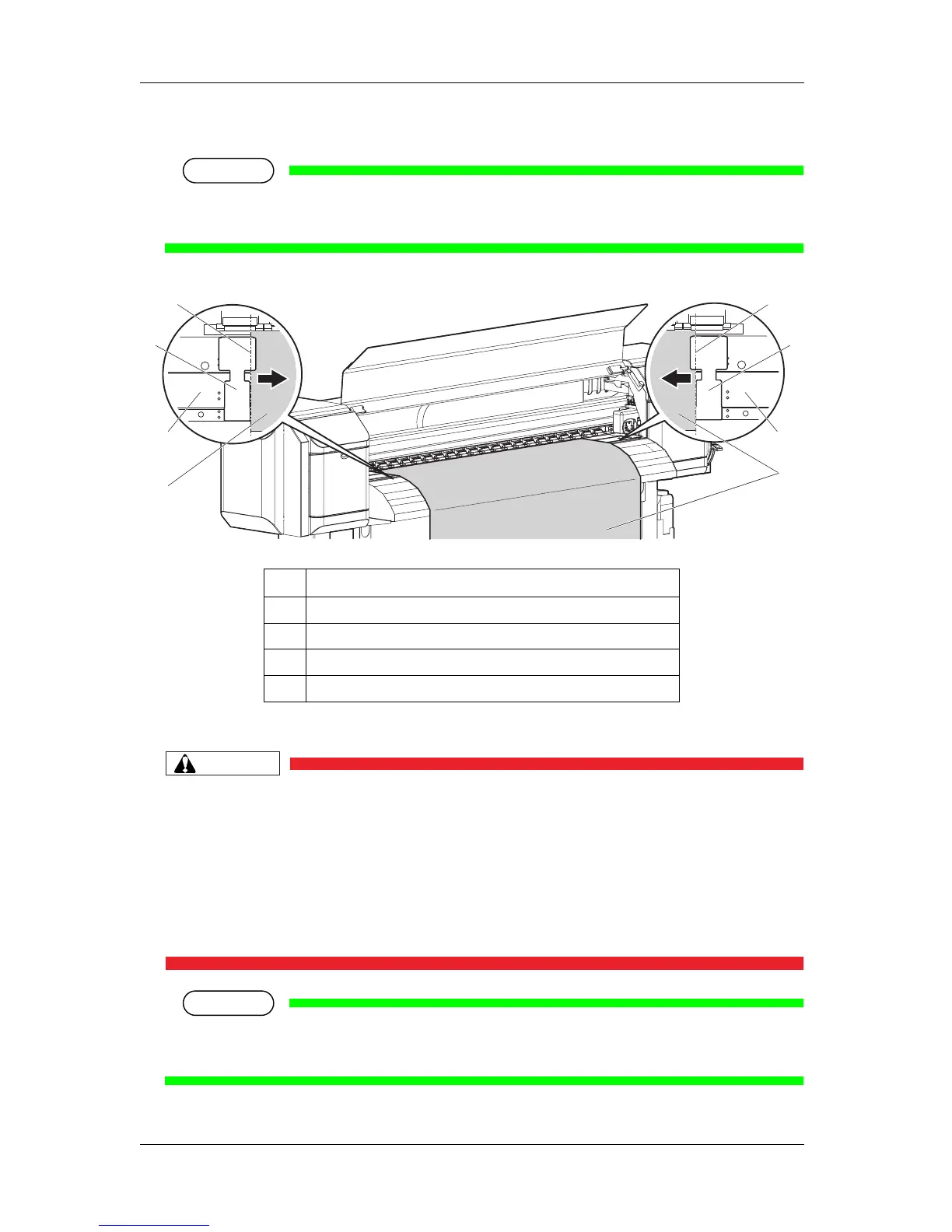

4. Set Media holder plates by sliding them from both sides of Platen.
NOTE
• Do not use Media holder plates for the media whose thickness is 400µm (0.4mm) or thicker.
The media holder plate may interfere with Print head.
5. After installing Media holder plates, make sure that they do not interfere with media feeding.
CAUTION
• If the media jams when using Media holder plates, the plates may be deformed.
When Media holder plates are deformed:
• Do not remove the clogged media by force.
• Stop using the printer.
Using the printer with deformed Media plates may damage Grid roller or Print
heads.
Contact your local MUTOH dealer.
NOTE
• If there is interference with the media as it is fed through the printer after Media holder plates
have been installed, Media holder plates should not be used.
No. Name
1 Roll media
2 Media holder plates
3 Media loading position
4 Platen
1
4
2
3
1
4
3
2
