VJ-1624/1624W OPERATION MANUAL 3 Before using
3-97

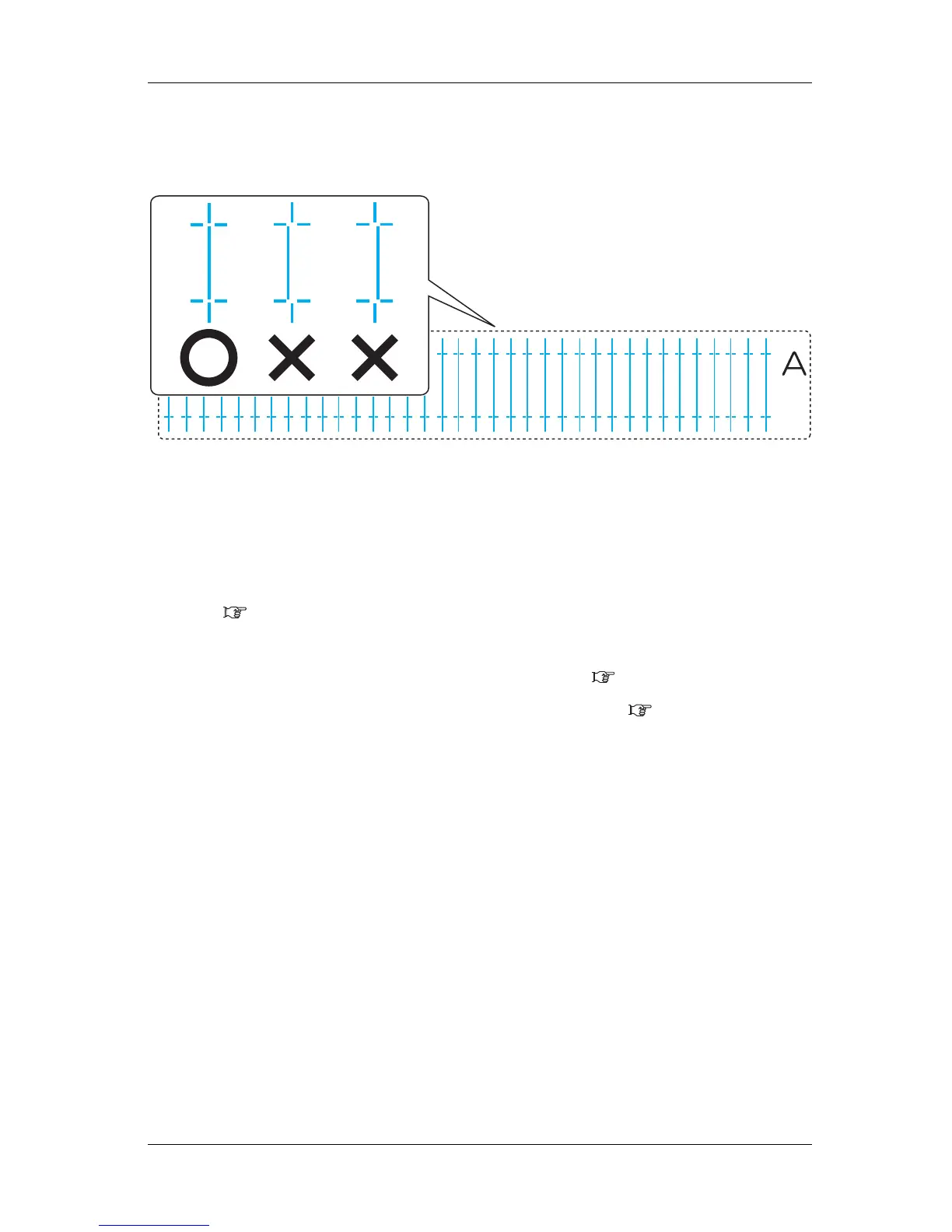

4. Confirm that the confirmation pattern printing result is as follows.
• Check each of the confirmation patterns A to F.
a. When the printing result is OK;
You do not need perform print quality adjustment.
The procedure for print quality adjustment is complete.
b. When the printing result is NG;
You need to perform print quality adjustment.
• Perform rough adjustment when the degree of misalignment is big.
3.6.2.2 Custom rough adjustment pattern
• Perform micro adjustment when the degree of misalignment is small.
• When adjustment is required for all patterns (A to F): 3.6.2.3.1Adj. PatternALL
• When adjustment is required for one of the patterns (A to F): 3.6.2.3.1 Individual Adj.
pattern
3.6.2.2 Custom rough adjustment pattern
Perform rough adjustment when the degree of misalignment is big.
Print rough adjustment pattern and register the set values.
1. Display the Custom Adjust Print menu on Operation panel in the same way as Step 2 of "3.6.2.1
Custom confirmation pattern".
