5. Loosen the fixing levers of the right and left roll media holders, move the roll media to the center and
tighten the levers.
NOTE
• When tightening Fixing lever, press Roll media holder toward the printer. If you do not press
Roll media holder, Fixing lever may not be completely locked because of the weight of the roll
media.
3.4.2 Setting Roll Media
This section explains how to set the roll media.
Follow the procedure below to set the roll media.

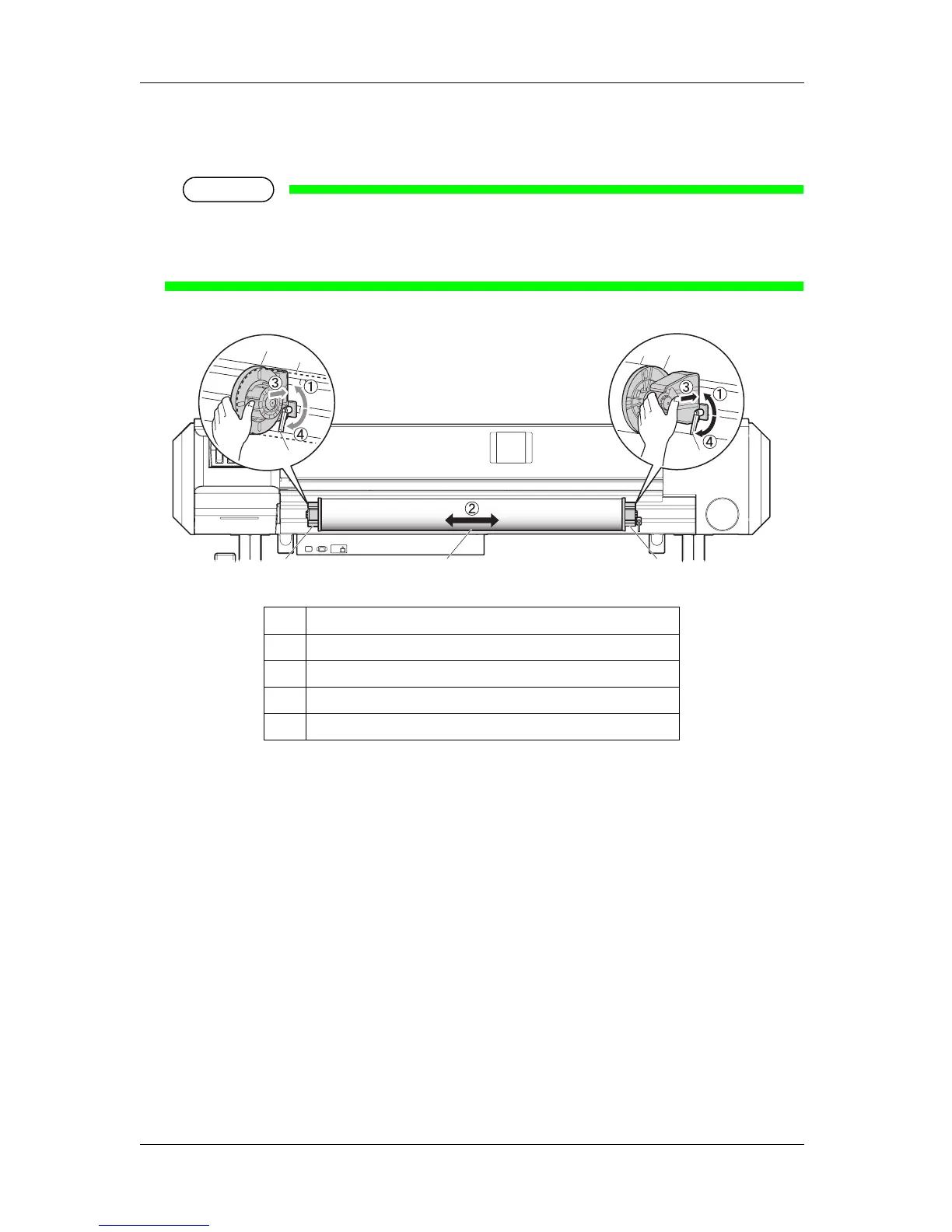

No. Name
1 Roll media holder (Left)
2 Roll media holder (Right)
3 Roll media
4 Fixing lever
2
3
31 2
1
3
4
4
