3 Before using VJ-1624/1624W OPERATION MANUAL
3-28

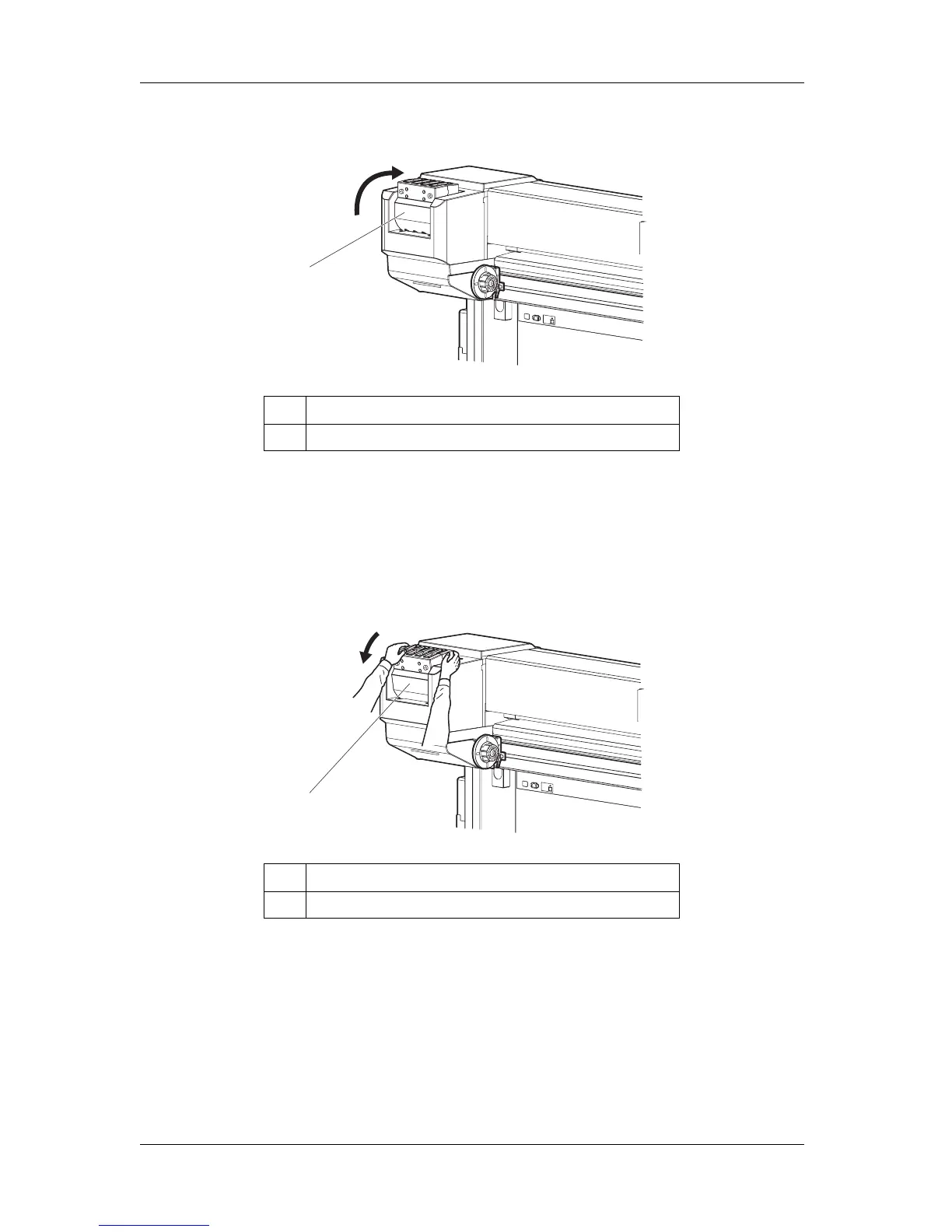

1. Rotale Ink cartridge slot by 90 degrees upward.
2. Check if Ink cartridge slot is vertical.
3.3.3.2 When inserting Ink cartridges horizontally
Before installing High-capacity ink pack adapters, change the angle as follows.
1. Tilt Ink cartridge slot slightly toward the rear side of the printer.
No. Name
1 Ink cartridge slot
No. Name
1 Ink cartridge slot
