166

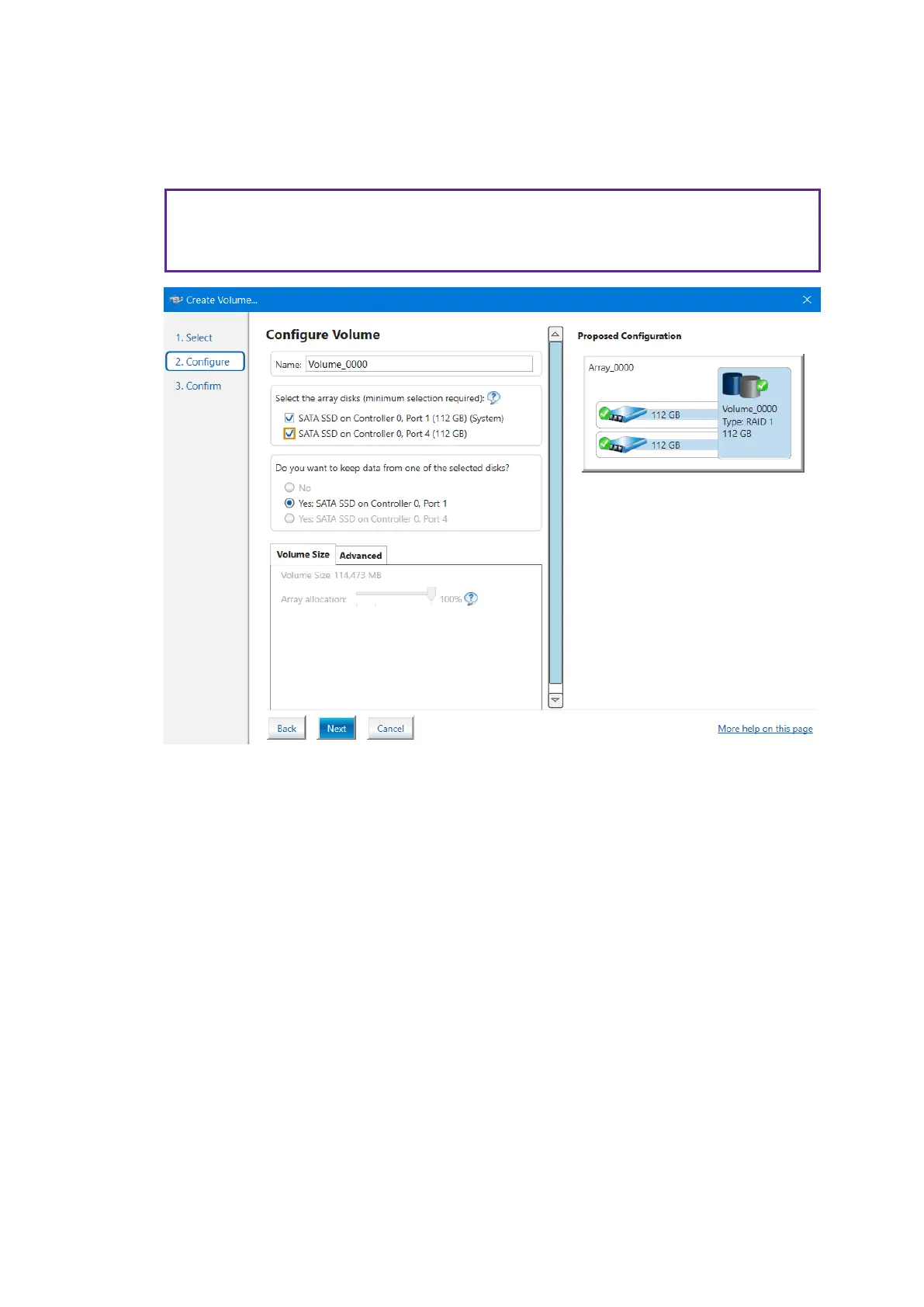

9. Select the check boxes for both disks.

RAID 0 Only: Specify the amount of space to be used by the new RAID volume.

Use the slider to enter a percentage.

Note

If you create a volume that uses less than 100% of the hard drive space, you

may create a second RAID volume to use the remaining space.

10. Select Next.
