77

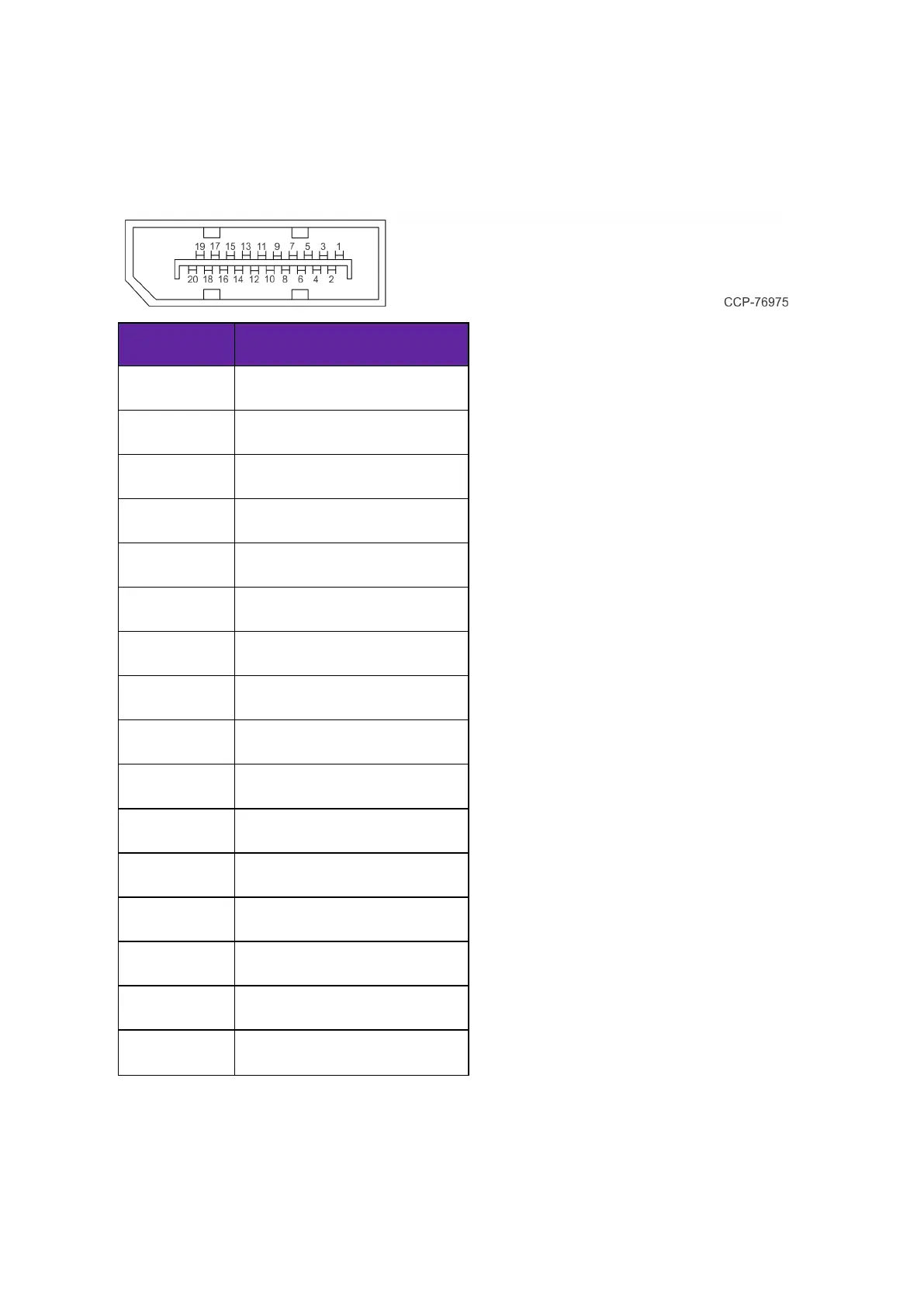

DisplayPort
The
I/O
Board
provides
a
2-lane
DisplayPort.
Lanes
2
and
3
of
the
DisplayPort
are
not
connected
internally.
Pin
Signal
Name
1
ML_Lane0
(p)
2
GND
3
ML_Lane0
(n)
4
ML_Lane1
(p)
5
GND
6
ML_Lane1
(n)
7
ML_Lane2
(p)
8
GND
9
ML_Lane2
(n)
10
ML_Lane3
(p)
11
GND
12
ML_Lane3
(n)
13
CONFIG1
14
CONFIG2
15
AUXCH
(p)
16
GND
76
78
Table of Contents
Table of Contents
10
Product Overview
20
Base Models
22
Cx7
22
Cx7Ii
23
Features
24
Optional Features
30
USBC Cable Options
31
Operating Systems
33
Specifications
35
Cx7
35
Cx7Ii
43
Migration
49
Mounting Configurations
51
Remote I/O Chassis - Pole Mount
53
Remote I/O Chassis Options
53
Remote I/O Chassis Cable Options
53
Pole Mount Options
53
Integrated I/O Chassis - Stand/Wall/Pole Mount
54
Integrated I/O Chassis Options
55
Mounting Options
55
CX Head Ports
56
CX Head (Motherboard) Connector Pinouts
57
USB-C (USB Type C Display)
57
Lan
58
USB-C (Power/Data)
59
I/O Ports
61
USB Centric I/O (Retail)
62
Base
62
Integrated I/O
64
Remote I/O Chassis
66
Serial Centric I/O (Hospitality)
67
Base
67
Integrated I/O
69
Remote I/O Chassis
71
I/O Board Connector Pinouts
73
12V USB + Power
73
Cash Drawer
75
Displayport
77
Lan
78
Power in
79
Usb-C
80
Usb 3.0
81
Confidential and Proprietary Information of NCR Corporation
81
Serial Ports
81
Serial (Standard UART)
82
RJ50 Serial (Enhanced UART)
83
RJ12 Serial (Two Enhanced UART and Two Standard UART)
84
RJ45 Serial (One Enhanced UART and One Standard UART)
85
Operator Controls
86
Power Switch
86
Image Recovery Button
87
Trusted Platform Module (TPM)
88
Imager
89
Programming the Imager
89
Keypad
90
Keypad/Keyboard Remap Utility
90
Label Locations
91
CX7 15" 4:3 Display with Base
91
CX7 15.6" 16:9 or 18.5" Display with Base
92
CX7 15" 4:3 or 15.6" 16:9 or 18.5" Display with Integrated I/O
93
CX7 15" 4:3 Display with Remote I/O
94
CX7 15.6" 16:9 or 18.5" Display with Remote I/O
95
Hardware Installation
96
Installation Restrictions
96
Ergonomic Workplace
96
Installing the Terminal
97
Connecting AC Power
98
Power Consumption
99
Connecting to a Network
100
Installing the Cash Drawer
102
Installing the Second Cash Drawer
104
Second Cash Drawer for USB Centric I/O (Retail)
104
Second Cash Drawer for Serial Centric I/O (Hospitality)
105
24V Cash Drawers
105
12V Cash Drawers
106
Configuring Cash Drawer Switch Polarity
107
Gen3
107
For 64-Bit Operating Systems
107
For 32-Bit Operating Systems
108
Rpsw
109
Opos
109
Configuring through RSM le Utility
109
Configuring through Windows Registry
109
Javapos
110
Configuring through RSM le Utility
110
Configuring through Config.xml Settings
110
Rpsl
111
Javapos
111
Configuring through Fitclient le Utility
111
Configuring through Config.xml Settings
111
Ncrpsw/Ncrpsl
112
Configuring through the DAL
112
Configuring through the Configuration File
113
Configuring through the Device Configuration Tool
114
Additional Reference
115
Installing the Transaction Printer
116
Powering up the Terminal
117
Led
118
Power LED
118
Diagnostic Leds
119
LAN Diagnostic Leds
124
I/O Panel LED
125
Base
126
Integrated I/O Expansion
127
Remote I/O Chassis
128
Operation and Cleaning
129
Administrator Login
129
Projected Capacitive (PCAP) Touchscreen
130
Using the PCAP Touchscreen
130
Cleaning the Touchscreen
131
Magnetic Stripe Reader
132
Using the MSR
132
Care of Cards
132
Card Thickness
132
Cleaning the MSR
133
Cleaning Frequency
133
Biometrics Fingerprint Reader
134
Using the Biometrics Reader
134
Cleaning the Sensor
135
Software Drivers
135
Cleaning the CX7 Cabinet
136
Cleaning the Cooling Vents
137
Disk Image Backup and NCR Image Recovery Tool
138
Introduction
138
Running the NCR Image Recovery Tool
139
Starting the NCR Image Recovery Tool
139
Main Screen
140
Save or Load Image
141
Saving an Image
143
Loading an Image
148
Change Settings
155
Change Network Settings
156
Change Password
157
Replace Recovery Image
158
Change Language
160
Creating a Disk Image
162
Configuring a Second SSD for RAID
163
Introduction
163
Configuring a RAID System
164
SLES 15 SP4 Software RAID Gold Master Image
169
Power Management
189
Computer States
189
G3 Mechanical off
189
G2/S5 Soft off
189
G1 Sleeping
190
G0 Working
190
ACPI Sleep States (S0 - S5)
190
Enabling Wake on LAN
194
BIOS Setup
198
Administrator Password
198
Entering Setup
198
Selecting Menu Options
198
Enabling ONESHOT
199
Accessing Serial Number and Class-Model Information
199
Restoring Factory Settings
200
BIOS Updating Procedure
201
Introduction
201
Prerequisites
201
USB Flash Key Update Prerequisites
201
Windows Flash Executable Update Prerequisites
201
SPI/BIOS Updating Procedures
201
Using the Bootable USB Flash Key
201
Using the Windows Flash Executable
206
Initial Terminal Imaging
207
Introduction
207
Imaging Procedure
207
Wireless Adapter Switching
208
Installing the Software and Driver
208
Enabling Intel® Vpro (Active Management Technology)
214
Overview
214
Preconditions
215
Enabling Intel® Active Management in BIOS Utility
216
Configuring Intel® AMT Settings in Intel® Mebx Menu
217
Activating Network Access
218
Configuring a Static Ipv4 Address
218
Verifying Intel® AMT Using Internet Explorer
219
Verifying Intel® AMT Using Meshcommander
220
Reference
227
Configuring AMT
228
Configuring the Terminal
228
APA Graphical Display
234
Configuring the APA Graphical Display
234
Flip Functionality
240
CX Display Touch Tool
242
Other manuals for NCR VOYIX CX7
Kit Instructions
20 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the NCR VOYIX CX7 and is the answer not in the manual?
Ask a question
NCR VOYIX CX7 Specifications
General
Brand
NCR
Model
VOYIX CX7
Category
Touch terminals
Language
English
Related product manuals
NCR CX5
172 pages
NCR 7600
116 pages
NCR 7607
152 pages
NCR P1235
37 pages
NCR CX3 POS
86 pages
NCR POS XR8
152 pages
NCR RealPOS XR7
22 pages
NCR 7772 Series
95 pages
NCR RealPOS 5953
100 pages
NCR RealPOS 5977
172 pages
NCR PX10 POS 7746
82 pages
NCR RealPOS 70XRT 7403
50 pages
