Confidential and proprietary information of NCRCorporation.

Unauthorized use, reproduction and/or distribution is strictly prohibited.

Cash Drawer

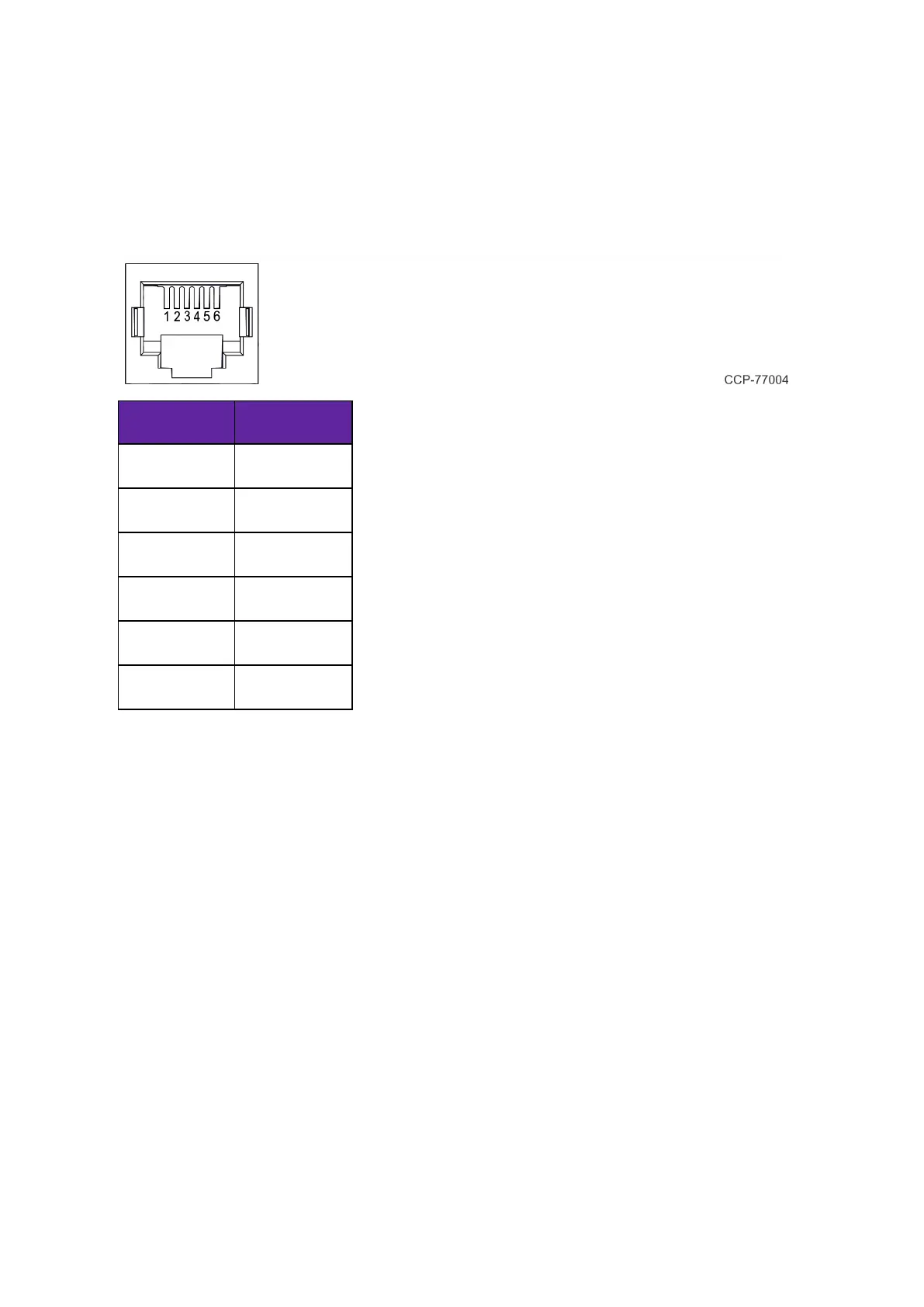

Cash Drawer Connector for USBCentric I/O

The USBCentric I/O Board provides a single 6-position RJ12 connector (Molex 44248-

0065 or NCR approved equivalent).

Pin Signal Name

1 Frame Gnd

2 Solenoid A

3 Drawer A/B

4 +24V/12V

5 Solenoid B

6 Logic Gnd
