Remote I/OChassis

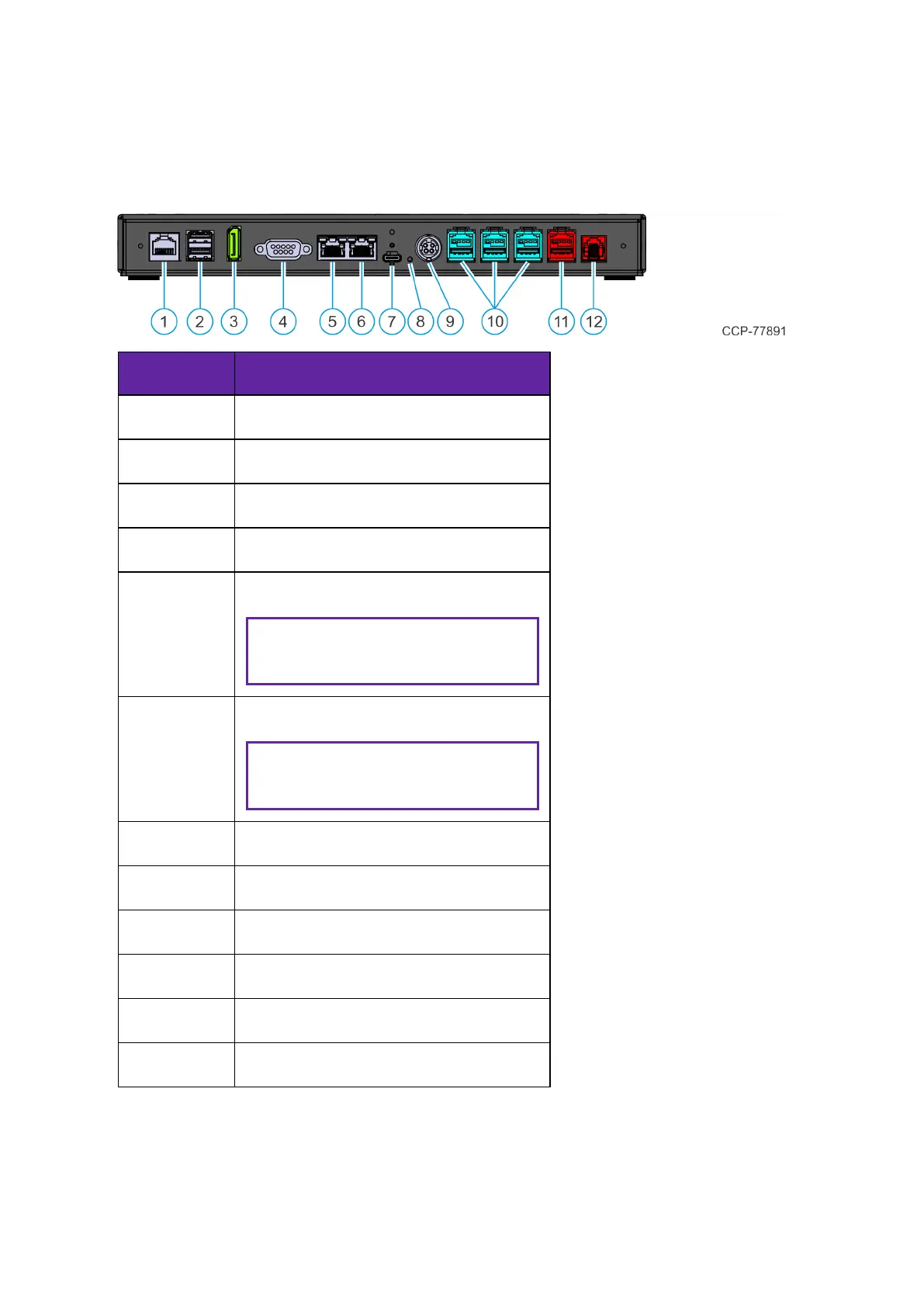

The following are the default I/O ports for the NCR CX7 All-in-One POS (7772) Remote
USBCentric I/O(Retail)Chassis.
Callout Port Name
1 RJ50 Serial (Enhanced UART)
2 Dual USB 3.0
3 DisplayPort
4 DB9 Serial (Standard UART)
5 LAN In
Note
Connect to Ethernet Network
6 LANOut
Note
Connect to the CXHead
7 USB-C
8 LED
9 24VPower In
10 USB12V
11 USB24V
12 Cash Drawer
