194
Enabling
Wake
on
LAN
In
order
for
Wake
on
LAN
to
function,
the
Network
driver
must
be
enabled
(factory
default).

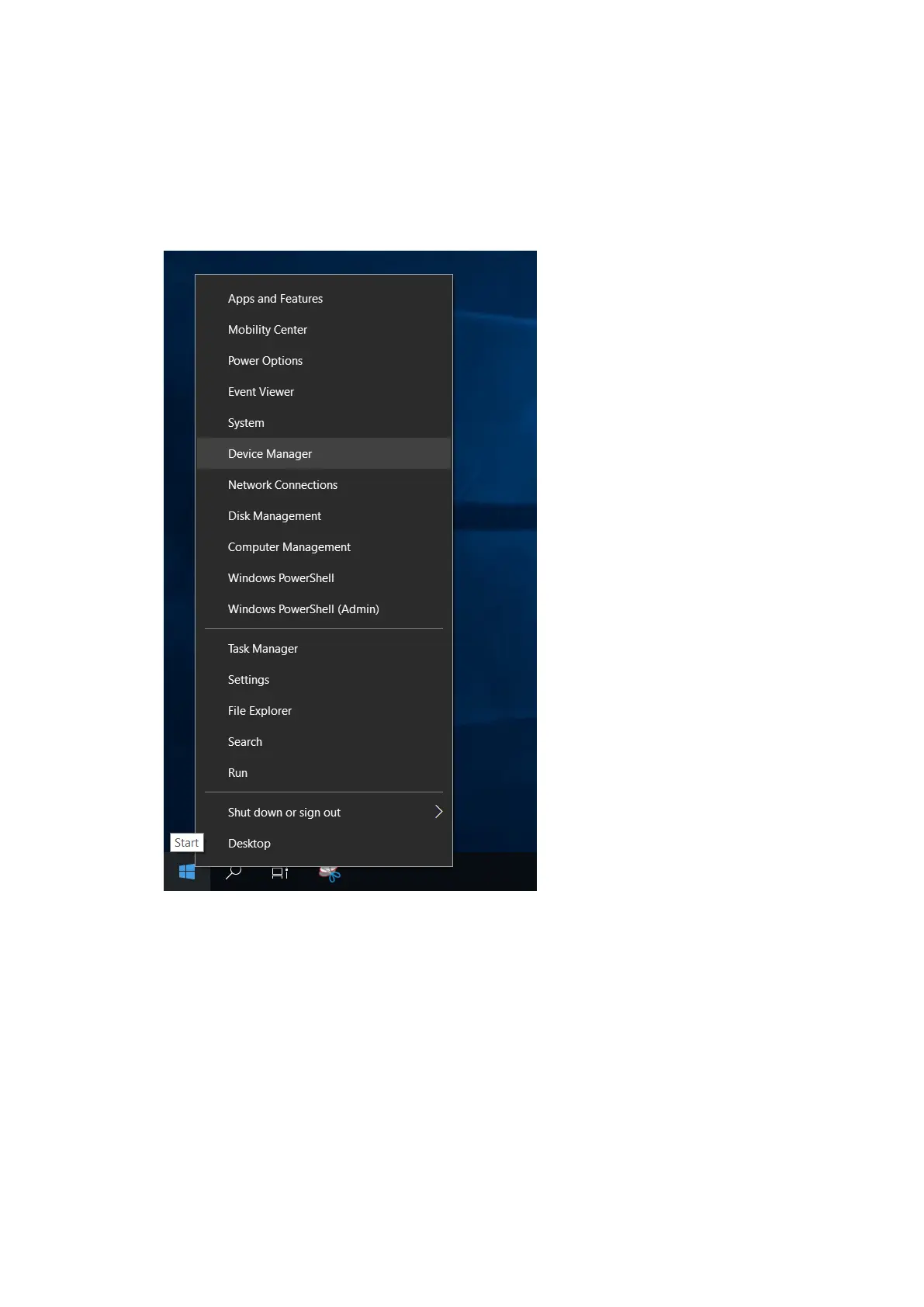

1.
Right-click
on
Start
,
then
select
Device
Manager
.
2.
Select
Network
adapters
.
193
