NEC DS1000 - Analog Trunk Cards - 4 ATRU (P;N 80010;A) and 8 ATRU (P;N 80011;A); Analog Station Cards - 4 ASTU (P;N 80040;A) and 8 ASTU (P;N 80041;A)

DS1000/2000 Correspondence Course
DS2000 System Hardware
38 ◆ DS1000/2000 Workbook NEC America

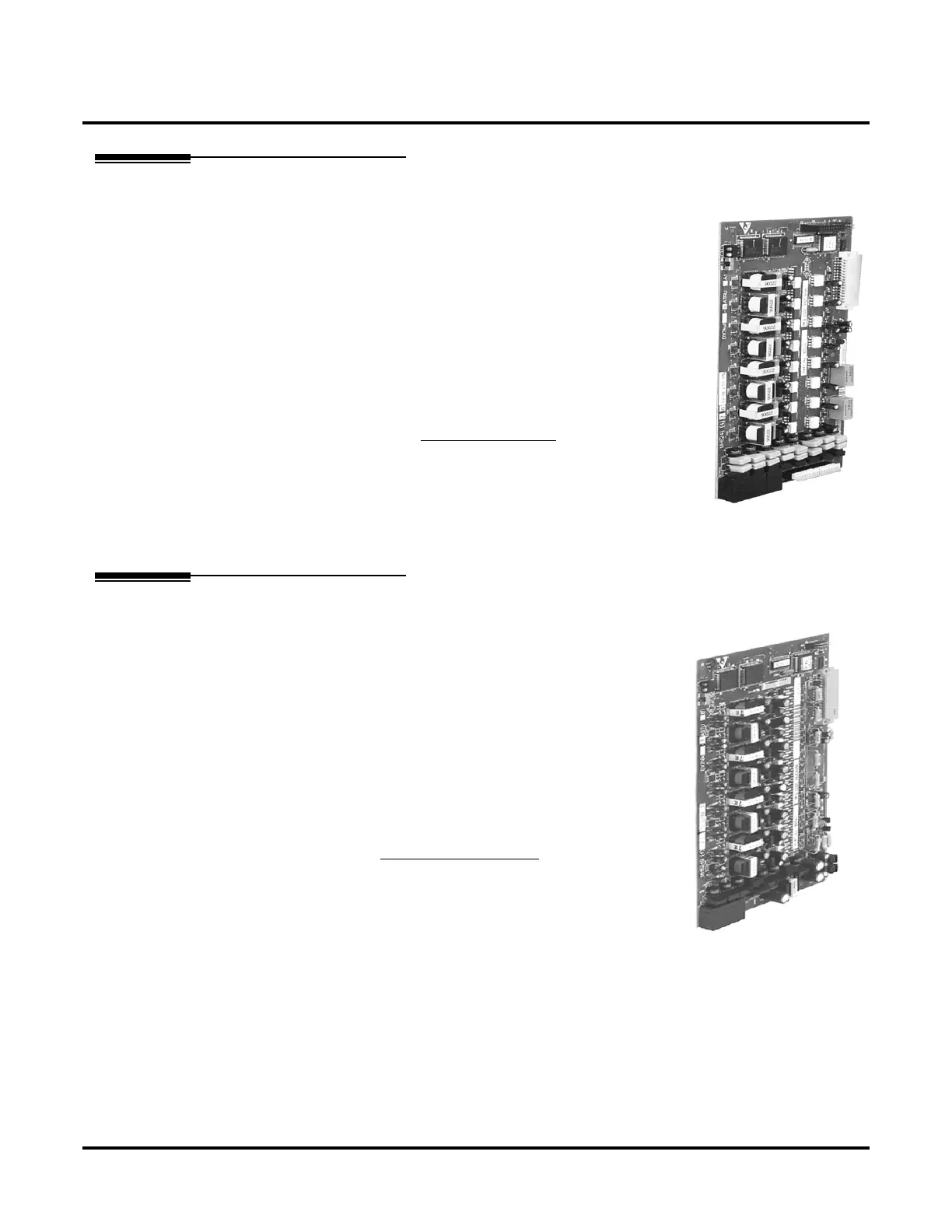

Analog Trunk Cards - 4ATRU (P/N 80010/A) and 8ATRU (P/N 80011/A)
● Four (4) or eight (8) trunks per card
● Installer-friendly 8-pin modular jacks
● Each 8-pin modular jack supports four (4) analog loop
start trunks
● Built-in sidactor (lightning) and PTC (power cross)
protection
● Two (2) power failure cut-through circuits
● No programming required to install the card, but the
trunk circuit types need to be defined in Program 1001
- Trunk Port Description
Analog Station Cards - 4ASTU (P/N 80040/A) and 8ASTU (P/N 80041/A)
● Four (4) or eight (8) analog stations per card
● Voice Mail port support
● Supports 2500 sets
- Credit card scanners
- Cordless Telephone
- Fax
● Installer-friendly 8-pin modular jacks
● Each 8-pin modular jack supports four (4) analog
stations
● No programming required to install the card
Trunk Circuit Types
00 = uninstalled 51 = loop start DTMF 52 = loop start DP
Default = 51 (all trunks set as loop start DTMF)
Extension Circuit Types
00 = uninstalled 15 = analog station
Default = 02 (all stations set as a 22-button display)
