DS1000/2000 Correspondence Course
Station Equipment
NEC America DS1000/2000 Workbook
7
Station Equipment
The following information will provide you with information on the station equip-
ment available for the DS1000/2000 Systems. Operational information for the tele-
phones can be found in the DS1000/2000 Software Manual and in the user guides
(Multibutton Feature Handbook, P/N 8000MFHxx, Multibutton Quick Reference
Guide, P/N 80000MBGxx, Soft Key Glossary, P/N 8000GLOxx, and Analog Single
Line Quick Reference Guide, P/N 80000SLTxx). The DSS Consoles and Door Box
information can be found in the DS1000/2000 Software Manual.

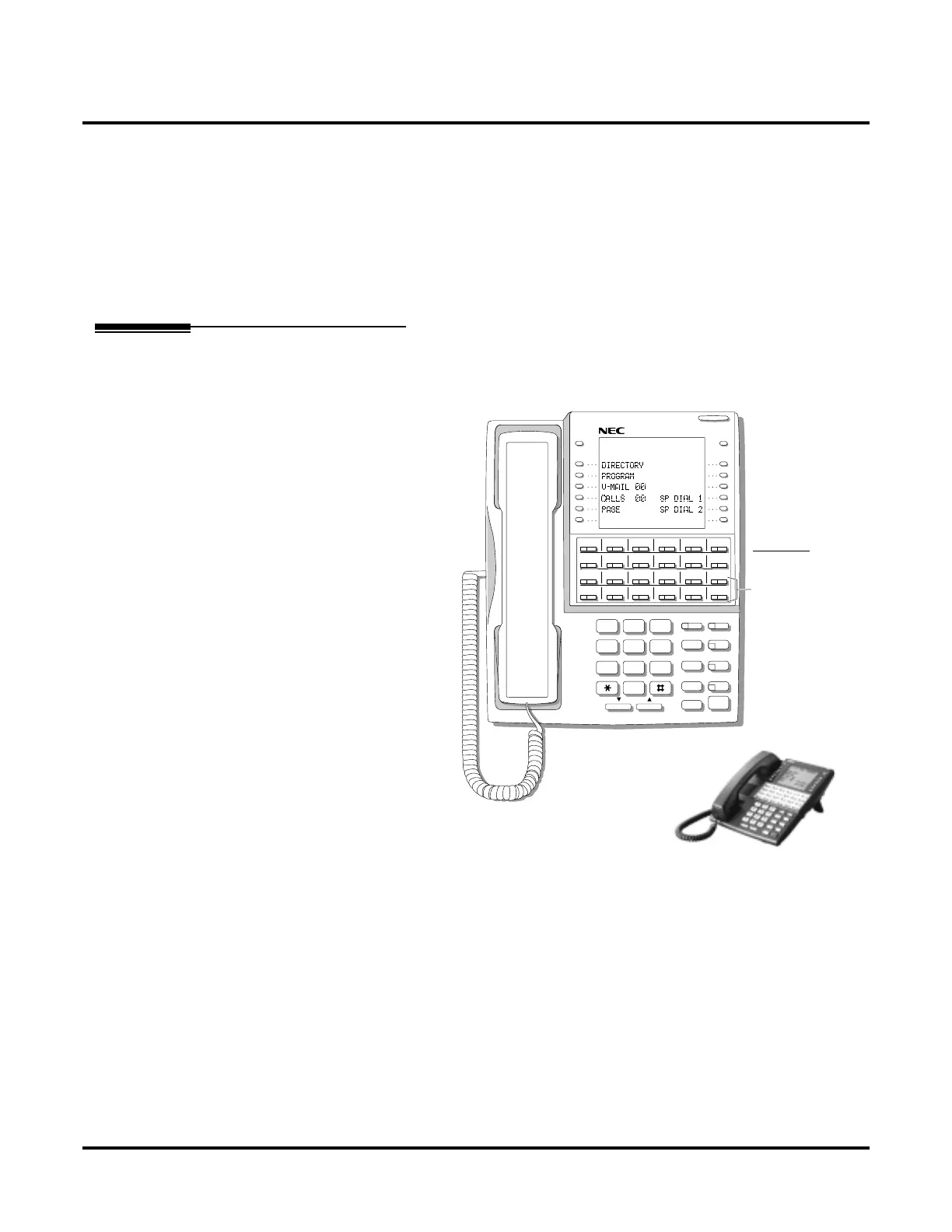

34-Button Super Display Telephone (P/N 80673)
8 line x 20 character
display
24 function keys
(dual LED)
12 interactive keys
14 fixed keys
Handsfree
Speakerphone
Built-in desk stand
Ring/Message
Lamp
U Slot
1 2 3
4 5 6
7 8 9
0
ABC DEF
MW ICM
FLASH DND
DIAL MIC
LND SPKR
CONF
HOLD
GHI JKL MNO
PQRS TUV
OPER
VOL
WXYZ
80000 - 71
CHECK CLEAR
LINE 1 LINE 2 LINE 3 LINE 4 LINE 5 LINE 6
LINE 7 LINE 8
Keys 13-24 are undefined
for non-attendants in DS2000.
Keys 7-24 are undefined for
non-attendants in DS1000.
LINE 9 LINE 10 LINE 11 LINE 12
For Attendants:
Key 11=Night Key
Key 24=Operator Call Key
