DS2000 System Hardware
NEC America DS1000/2000 Workbook ◆ 39
Circuit Caller ID Cards - 4 Circuit (P/N 92012) and 8 Circuit (P/N 80013)
● 4 circuit Caller
ID daughter
board - installs
on 4ATRU P/N
80010A only
● 8 circuit Caller
ID daughter
board - installs
on 8ATRU P/N
80011A only
● Provides Caller
ID capability for
all four or eight
trunk circuits on
the ATRU PCB
● Every ATRU
PCB in the system can have a Caller ID daughter board
● When installing Caller ID on a ATRU PCB in the last slot, you may have to
adjust your system’s ground wire connection so it won’t obstruct the daughter
board.
● If you install a P/N 92012 Caller ID PCB on an 8ATRU PCB, P/N 80011A,
you will get Caller ID service only on the first four PCB trunk circuits.
❏ Complete Questions 6-10
in the Answerbook
CN4
CN2
CN1
CN5

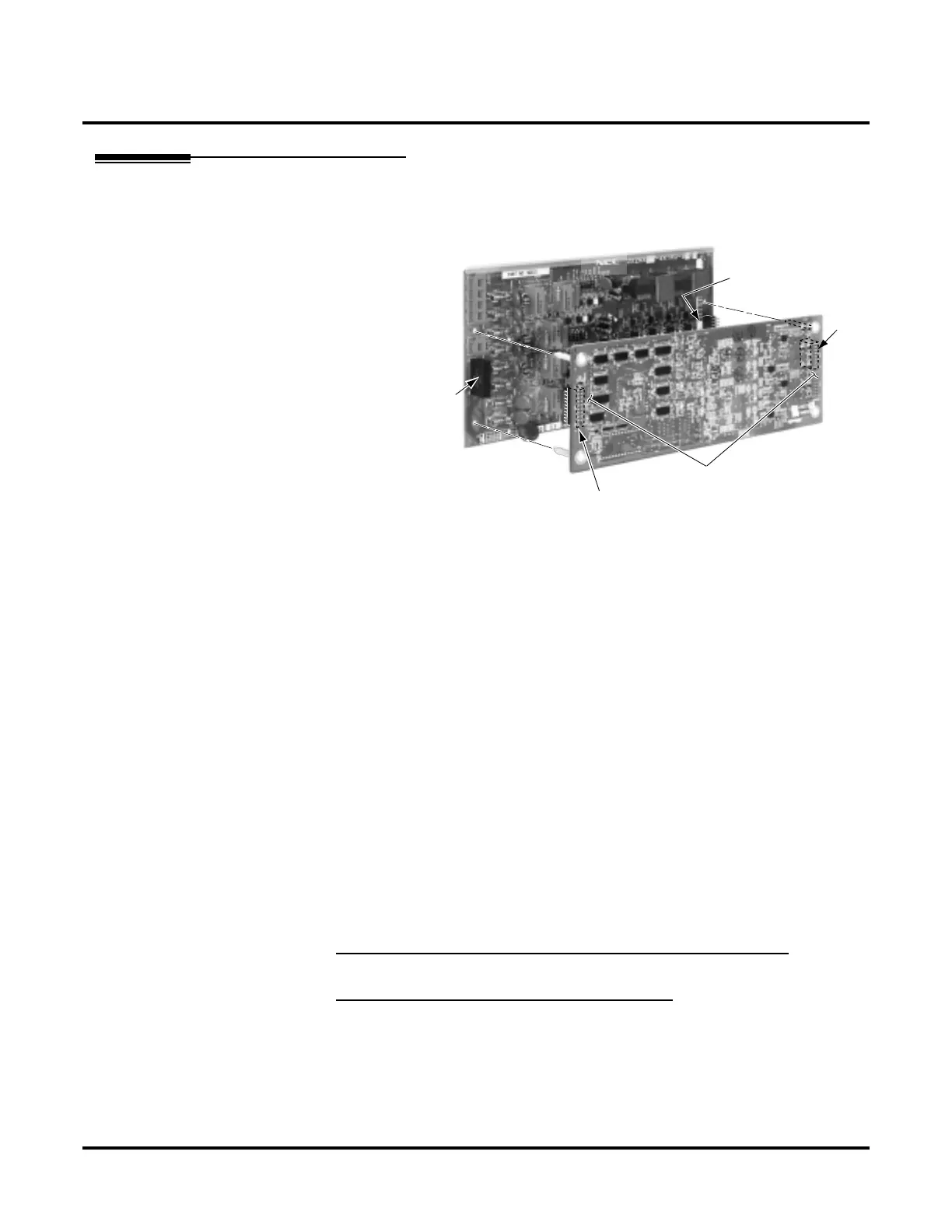

92012 - 1
Push PCB down at outside edges
until standoffs snap into place
4 Circuit Caller ID
PCB Shown
