DS1000/2000 Correspondence Course
Station Equipment
8
◆
DS1000/2000 Workbook NEC America

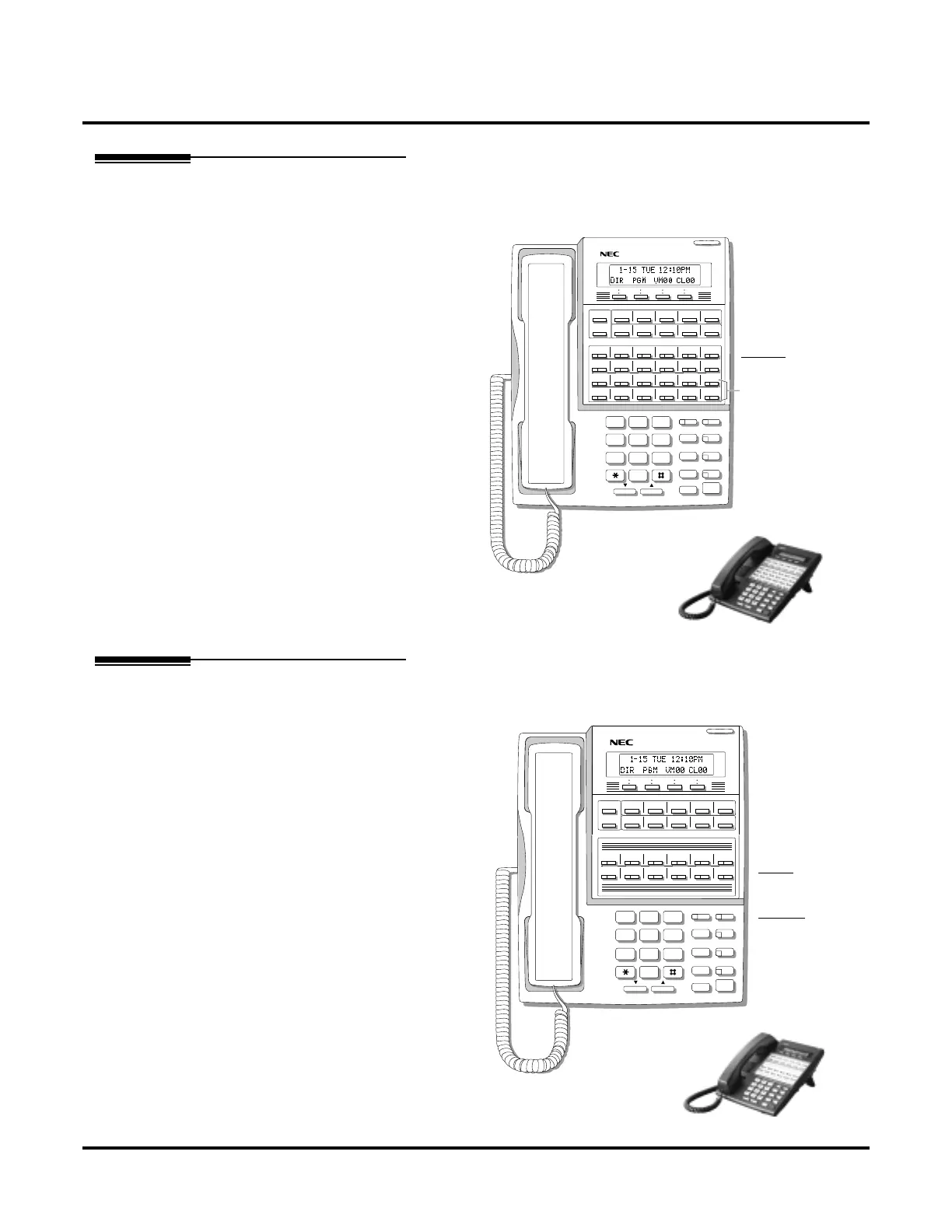

34-Button Display Telephone (P/N 80663)
●
2 line x 20 character
display
●
24 function keys
(dual LED)
●
10 Personal Speed
Dial bin keys that
can store 20 Speed
Dial bin numbers
●
14 fixed keys
●
4 interactive soft
keys
●
Handsfree
Speakerphone
●
Built-in desk stand
●
Ring/Message
Lamp
22-Button Display Telephone (P/N 80573)
●
2 line x 20 character
display
●
12 function keys
(dual LED)
●
10 Personal Speed
Dial bin keys that
can store 20 Speed
Dial bin numbers
●
14 fixed keys
●
4 interactive soft
keys
●
Handsfree
Speakerphone
●
Built-in desk stand
●
Ring/Message
Lamp
U Slot
1 2 3
4 5 6
7 8 9
0
ABC DEF
MW ICM
FLASH DND
DIAL MIC
LND SPK
CONF
HOLD
GHI JKL MNOMNO
PQRS TUV
OPER
VOL
WXYZ
CLEAR
CHECK
80000 - 72
LINE 1 LINE 2 LINE 3 LINE 4 LINE 5 LINE 6
LINE 7 LINE 8
BIN 1 BIN 2 BIN 3 BIN 4 BIN 5
BIN 6 BIN 7 BIN 8 BIN 9 BIN 10
Keys 13-24 are undefined
for non-attendants in DS2000.
Keys 7-24 are undefined for
non-attendants in DS1000.
LINE 9 LINE 10 LINE 11 LINE 12
For Attendants:
Key 11=Night Key
Key 24=Operator Call Key
U Slot
1 2 3
4 5 6
7 8 9
0
ABC DEF
MW ICM
FLASH DND
DIAL MIC
LND SPK
CONF
HOLD
GHI JKL MNOMNO
PQRS TUV
OPER
VOL
WXYZ
CLEAR
CHECK
80000 -70
LINE 1 LINE 2 LINE 3 LINE 4 LINE 5 LINE 6
LINE 7 LINE 8
LINE 9 LINE 10 LINE 11 LINE 12
BIN 1 BIN 2 BIN 3 BIN 4 BIN 5
BIN 6 BIN 7 BIN 8 BIN 9 BIN 10
For Attendants:
Key 11=Night Key
Key 12=Operator Call Key
In DS1000:
Keys 7-12 are
undefined.
