DS1000/2000 Correspondence Course
DS1000 System Installation
NEC America DS1000/2000 Workbook 47

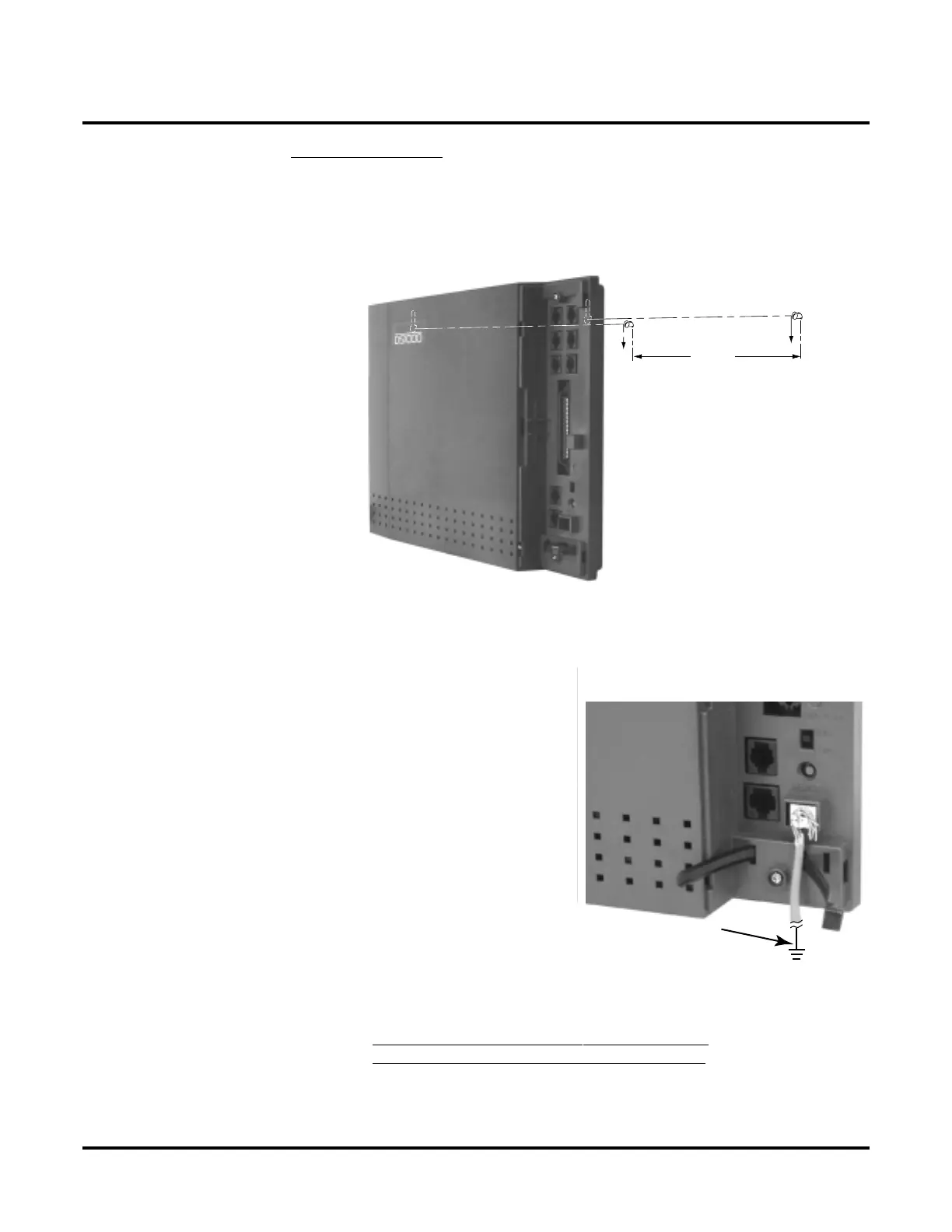

Hanging the Cabinet
1. Screw suitable fasteners 11 3/16 apart in a convenient location on the
MDF. Be sure to leave the fasteners backed out about 3/16 from the
MDF backboard.
2. Hang the cabinet as shown.
Attach the ground wire(s).
The ground connects from the sys-
tem to the ground termination using
12 AWG stranded copper wire.
You must connect your system to
a known earth ground.
1. Loosen the lug on the cabinets
ground connection.
2. Run a 12 AWG stranded copper
wire from the ground lug to a
known earth ground.
3. Firmly retighten the lug loosened
in step 1 above.
Do not plug in the power cord or reinstall the
right side panel until the cabling is complete.
80200 - 3
11 - 3/16"
To earth ground
80200 - 26
