DS1000/2000 Correspondence Course
DS1000 System Installation
NEC America DS1000/2000 Workbook 59
To install the Analog Door Box:
Door Box
Audio
1. Connect the GRN and RED lugs on the Door Box 1 modular jack to ter-
minals 1 and 2 on Analog Door Box 1 (324).
2. Connect the GRN and RED lugs on the Door Box 2 modular jack to ter-
minals 1 and 2 on Analog Door Box 2 (325).
Door Relays
1. Connect the BLK and YEL lugs on the Door Box 1 modular jack to the
relay that controls the door strike associated with Analog Door Box 1
(324).
2. Connect the BLK and YEL lugs on the Door Box 2 modular jack to the
relay that controls the door strike associated with Analog Door Box 2
(325).

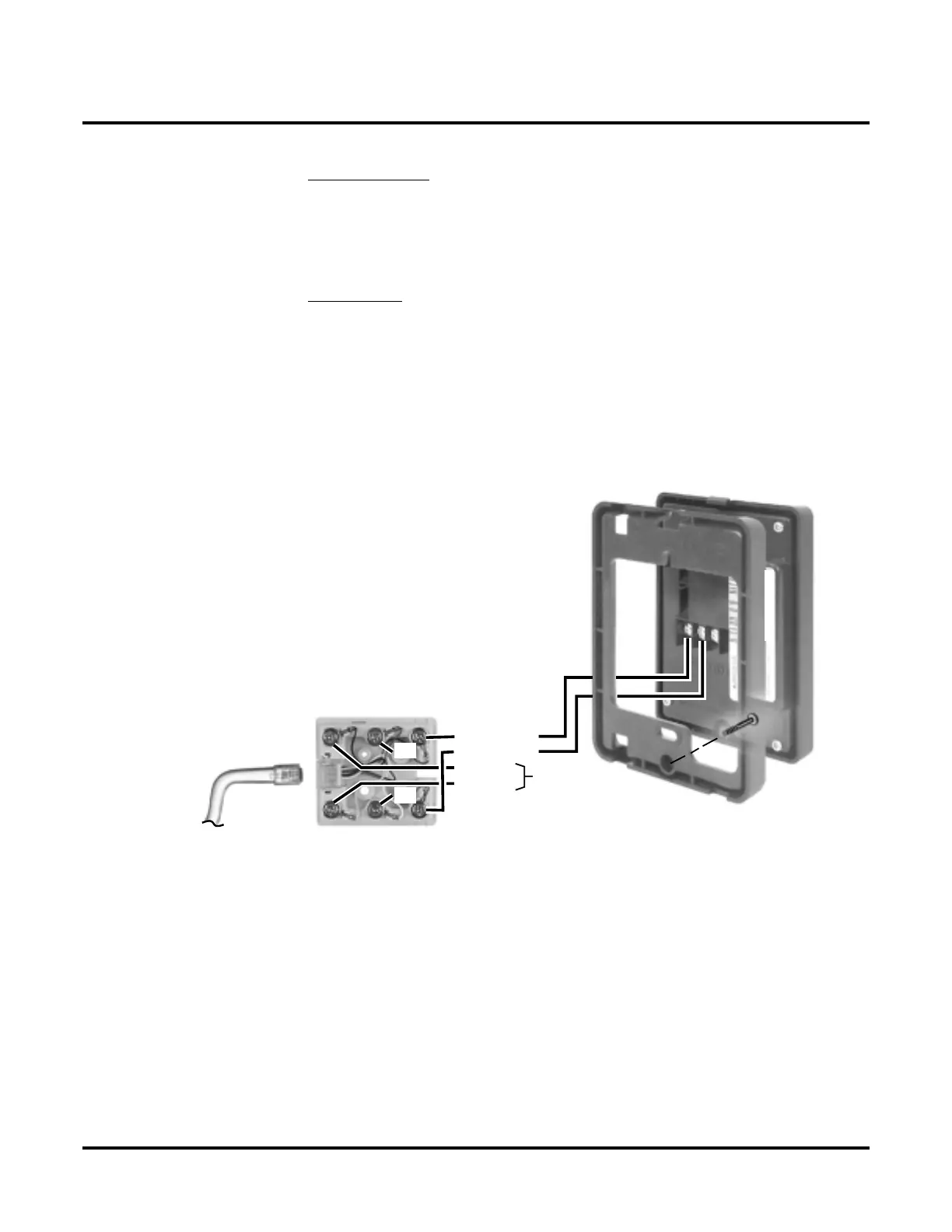

Connecting an Analog Door Box
BLK BLUE GRN
YEL
To DOOR1 in
DS1000 cabinet
WHT RED
80200 - 30
NC
NC
Door Box 1
Door Box 1
Relay
Door Box 1T
Door Box 1R
Relay 1T
Relay 1R
