NEC DS1000 Correspondence Course Workbook

DS1000/2000 Correspondence Course
DS2000 System Installation
88 ◆ DS1000/2000 Workbook NEC America
❏ Install any additional 16DSTU PCBs
as required.
The 16DSTU provides connection for 16
digital telephones.
● The first slot must be occupied by
a 16DSTU PCB.
● No programming required to
install the card, but extensions
needs to be identified by circuit
type in Program 1801 - Extension
Port Description.
To install the 16DSTU PCB:
1. Plug in additional 16DSTU PCBs as
required. See System Configuration on page 19 for more information.
2. Set the mode switch on each installed 16DSTU to RUN.
❏ Install the 4ASTU or 8ASTU PCBs as
required.
The 4ASTU PCB provides connection
for 4 analog extensions. The 8ASTU
PCB provides connection for 8 analog
extensions.
● No programming required to
install the card, but extensions
needs to be identified by circuit
type in Program 1801 - Extension
Port Description.
1. Plug the ASTU PCB as required for
your system configuration.
In U-Slot systems, see System
Configuration on page 19 for more information
An 8ASTU PCB provides analog extensions 316-323. A 4ASTU
PCB provides extensions 316-319.
2. Set the mode switch on the ASTU to RUN.
8
0
0
0
0
-
3
1

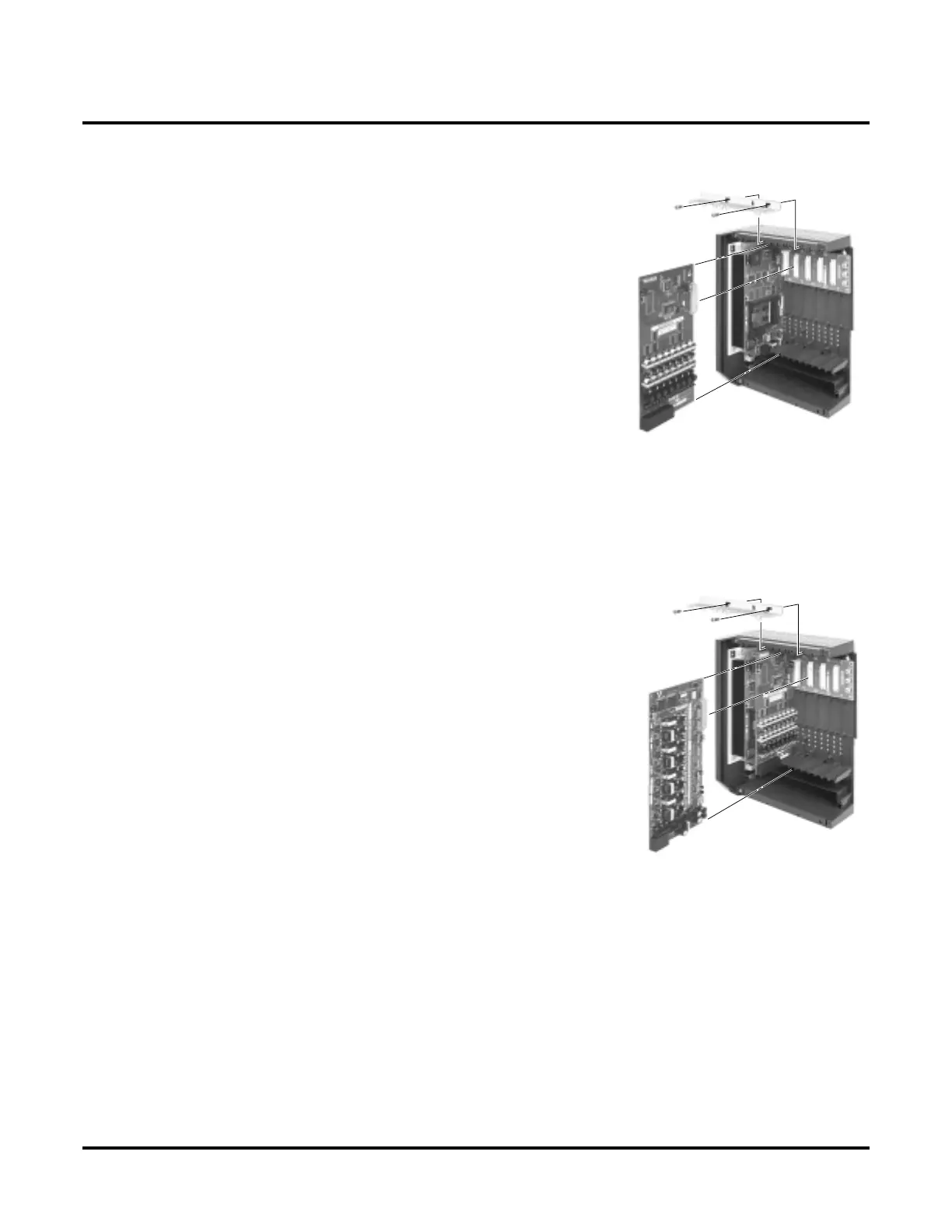

4-Slot Cabinet Shown
8000
0
- 3
1A
4-Slot Cabinet Shown
