System Configuration 4-31

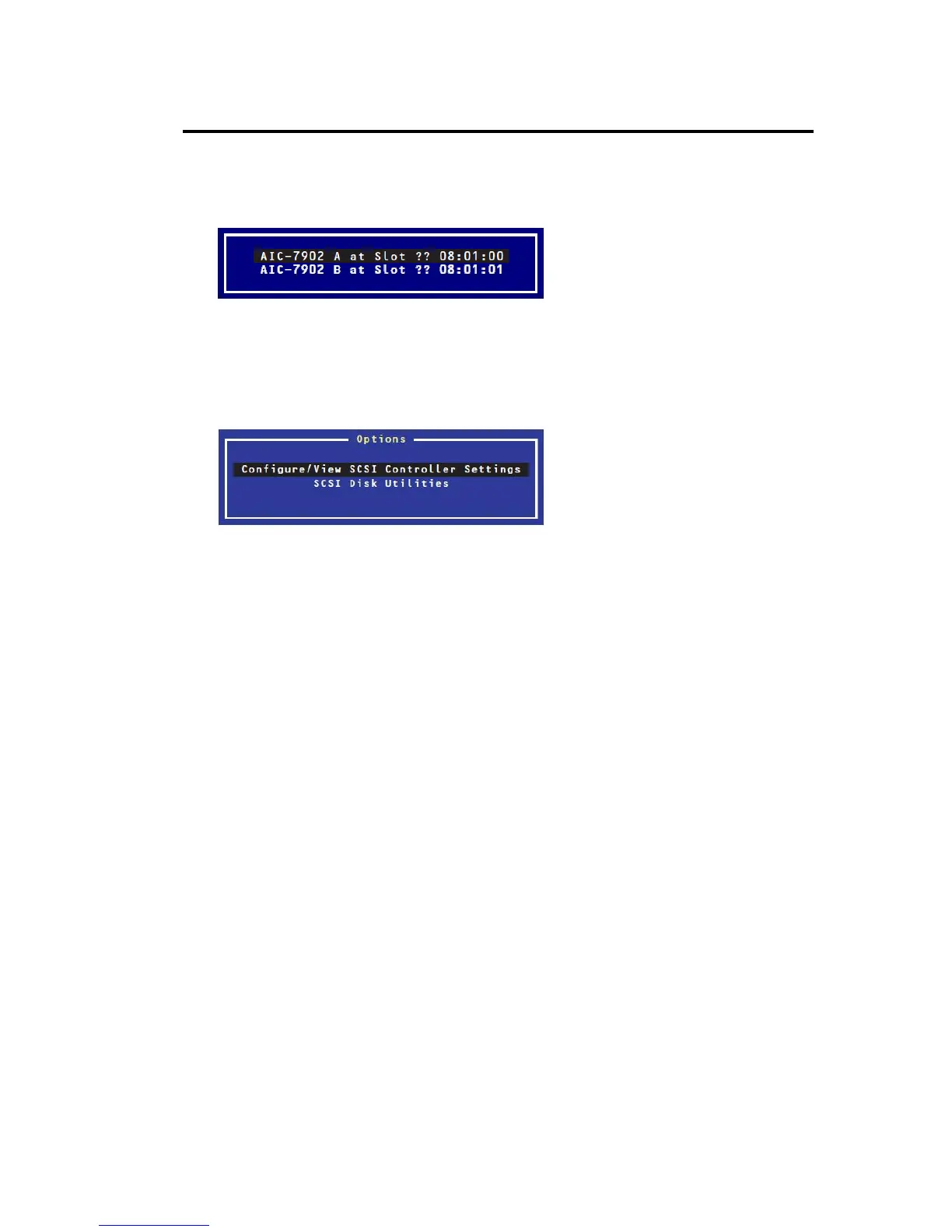

3. Use the cursor to select a channel in the “Bus:Device” box, and then press the Enter key.
The SCSI controller of the motherboard has two channels.
The channel A (08:01:00) shows the hard disk drive of ID0, ID1 and ID2 while the channel B
(08:01:01) shows the hard disk drive of ID3, ID4 and ID5.
When selection is made, the “Options” menu appears.
4. Select the Options menu and press the Enter key.
If you want to make settings of the adapter (selected channel) or the SCSI device connected to
the channel, choose “Configure/View SCSI Controller Settings.”
If you want to know or verity the format of hard disk drive or find the SCSI ID of the device
connected to the channel, select “CSI Disk Utilities.”
For more information, see the following description.
To quit SCSISelect, press the Esc until you see the closing message. (If any changes have been
made, the massage asking you whether or not to save the changes is displayed. Select Yes (save the
changes) or No (discard the changes)).
