NEC PD78052 - P00 and P07 Block Diagram; P01 to P06 Block Diagram

To Next Page

To Previous Page

135

CHAPTER 6 PORT FUNCTIONS

P-ch

PORT

PUO

P01/INTP1/TI01.

P02/INTP2

P06/INTP6

Selector

PUO0

Output Latch

(P01 to P06)

PM01-PM06

Internal bus

P00/INTP0/TI00,

P07/XT1

Internal bus

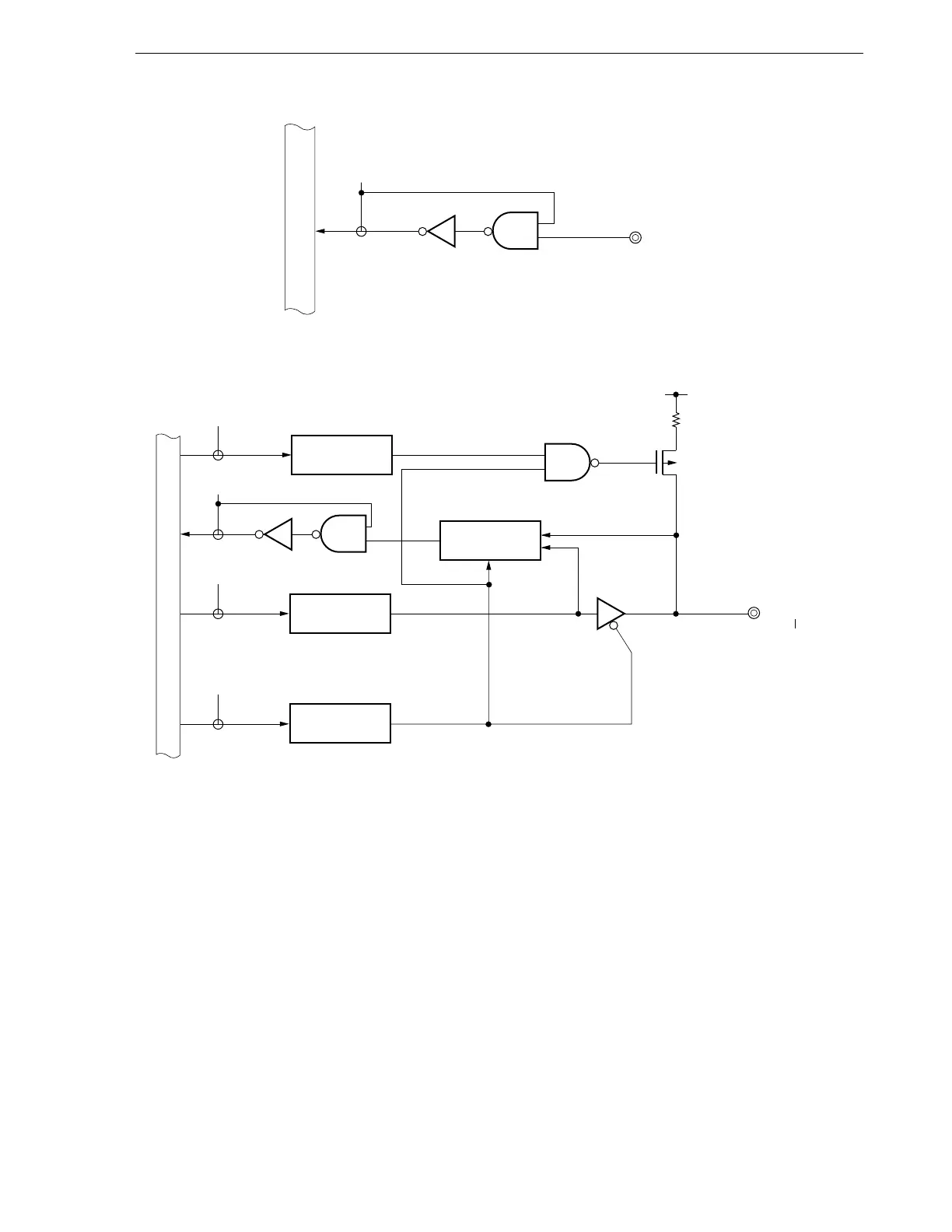

Figure 6-2. P00 and P07 Block Diagram

Figure 6-3. P01 to P06 Block Diagram

PUO : Pull-up resistor option register

PM : Port mode register

RD : Port 0 read signal

WR : Port 0 write signal
