• In case of parity error
Disable the receive buffer register (RXB) from being read for a certain time (T1 + T2 in Figure 19-15) after
the reception error interrupt request (INTSER) has occurred.

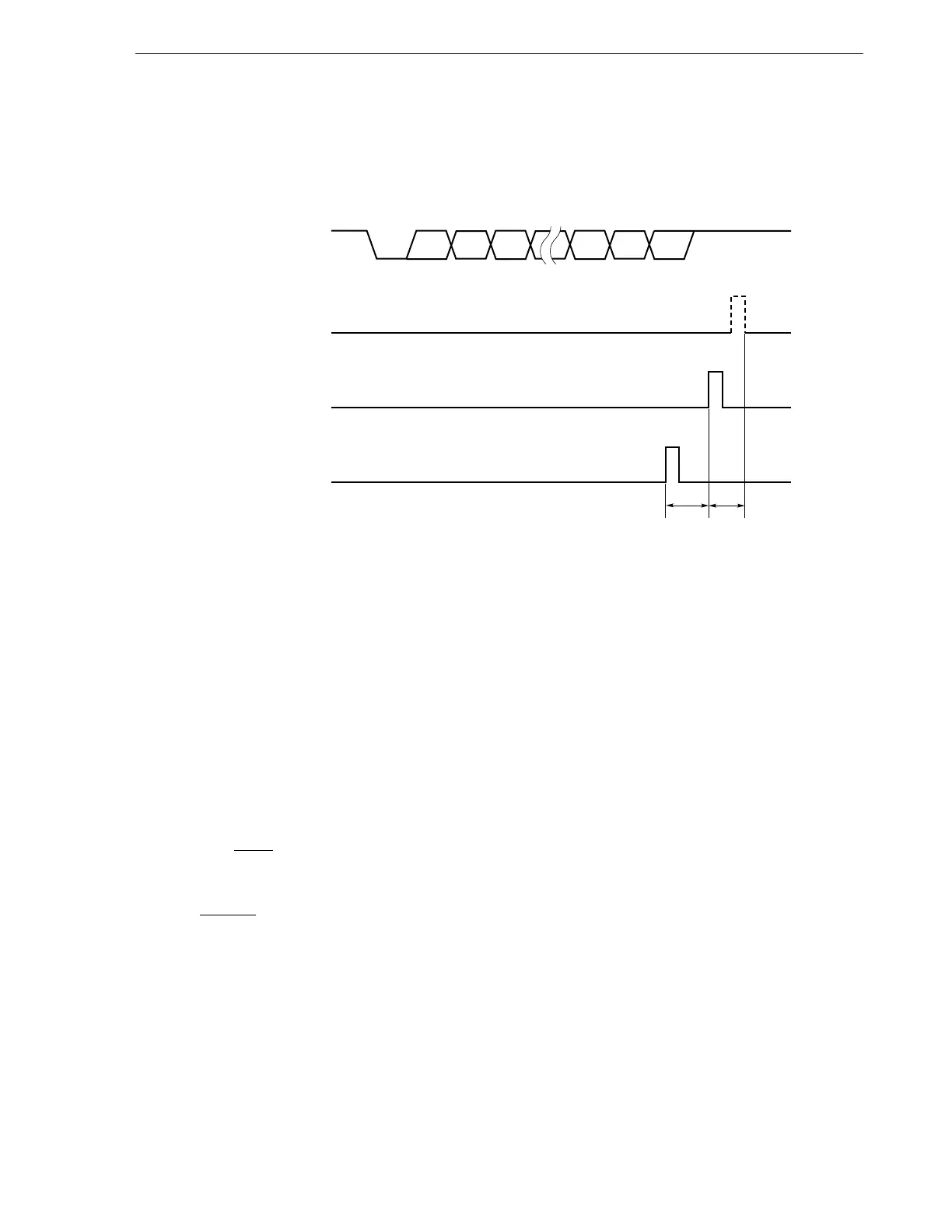

Figure 19-15. Receive Buffer Register Read Disable Period
T1 : Time of one data of baud rate selected by baud rate generator control register (BRGC) (1/baud rate)
T2 : Time of 2 clocks of source clock (f
SCK) of 5-bit counter selected by BRGC
•
Example of preventive measures
Here is an example of the above preventive measures.
[Condition]
f
X = 5.0 MHz
Processor clock control register (PCC) = 00H
Oscillation mode select register (OSMS) = 01H
Baud rate generator control register (BRGC) = B0H (2400 bps selected as baud rate)
T
CY = 0.4 µ s (tCY = 0.2 µ s)
T1 =
1
= 416.7
µ s
2400
T2 = 12.8 × 2 = 25.6
µ s
T1 + T2
= 2212 (clocks)
t
CY
D0 D1 D2 D6 D7 Parity
START
STOP
T1
T2
RxD (input)
INTSR
INTSER (on occurrence of
framing/overrun error)
INTSER (on occurrence of
parity error)
