CHAPTER 14 A/D CONVERTER
14.4.2 Input voltage and conversion results
The relation between the analog input voltage input to the analog input pins (ANI0 to ANI7) and the A/D conversion
result (the value stored in A/D conversion result register (ADCR)) is shown by the following expression.
ADCR = INT ( × 256 + 0.5)
or
(ADCR – 0.5) ×≤ V
IN < (ADCR + 0.5) ×
Where, INT( ) : Function which returns integer parts of value in parentheses.
V
IN : Analog input voltage
AVREF0 : AVREF0 pin voltage
ADCR : Value of A/D conversion result register (ADCR)

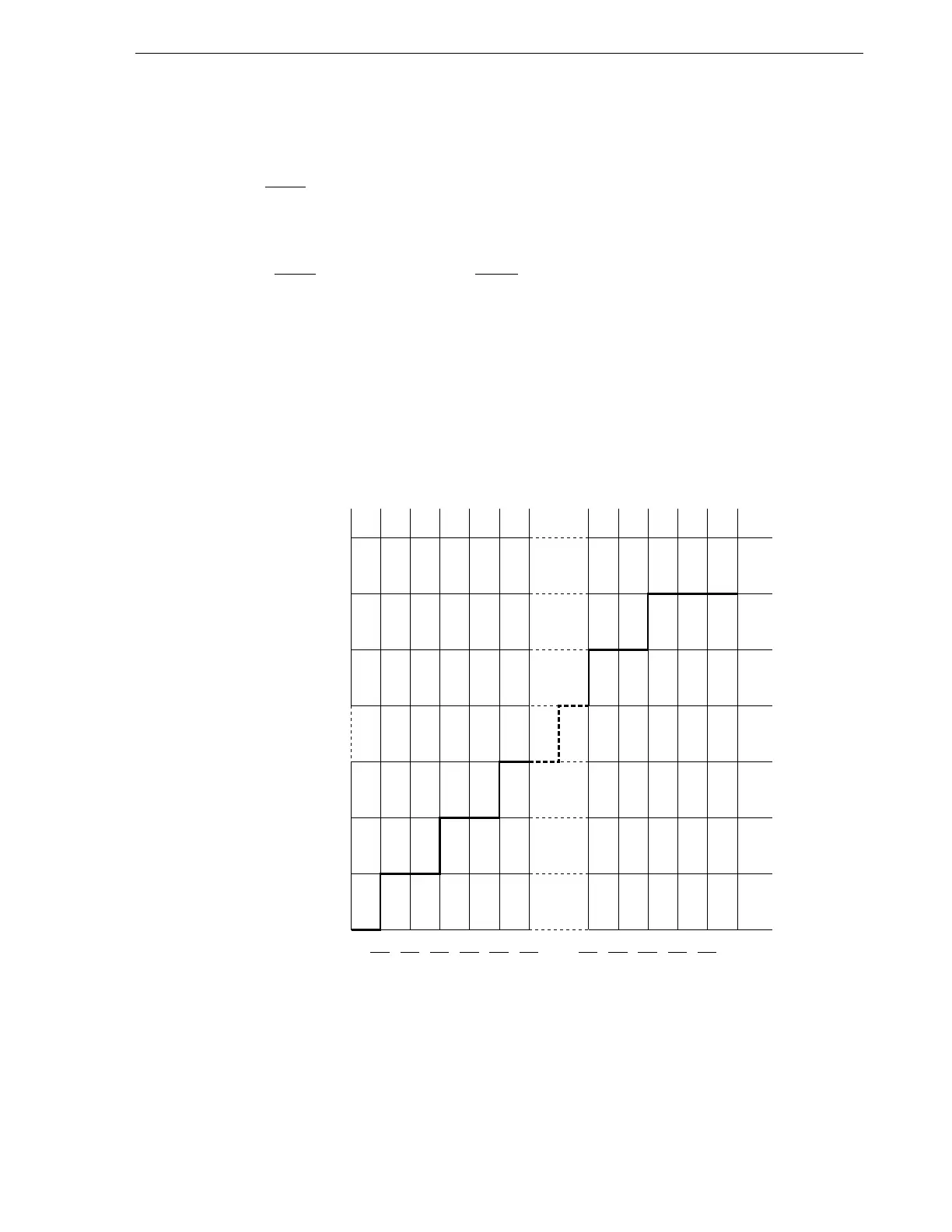

Figure 14-7 shows the relation between the analog input voltage and the A/D conversion result.
Figure 14-7. Relations between Analog Input Voltage and A/D Conversion Result
