NEC PD78052 - Operation Timing of OVF0 Flag

To Next Page

To Previous Page

214

CHAPTER 8 16-BIT TIMER/EVENT COUNTER

Count Pulse

CR00

TM0

OVF0

INTTM00

FFFFH

FFFEH FFFFH 0000H 0001H

(7) Operation of OVF0 flag

OFV0 flag is set to 1 in the following case.

The clear & start mode on match between TM0 and CR00 is selected.

↓

CR00 is set to FFFFH.

↓

When TM0 is counted up from FFFFH to 0000H.

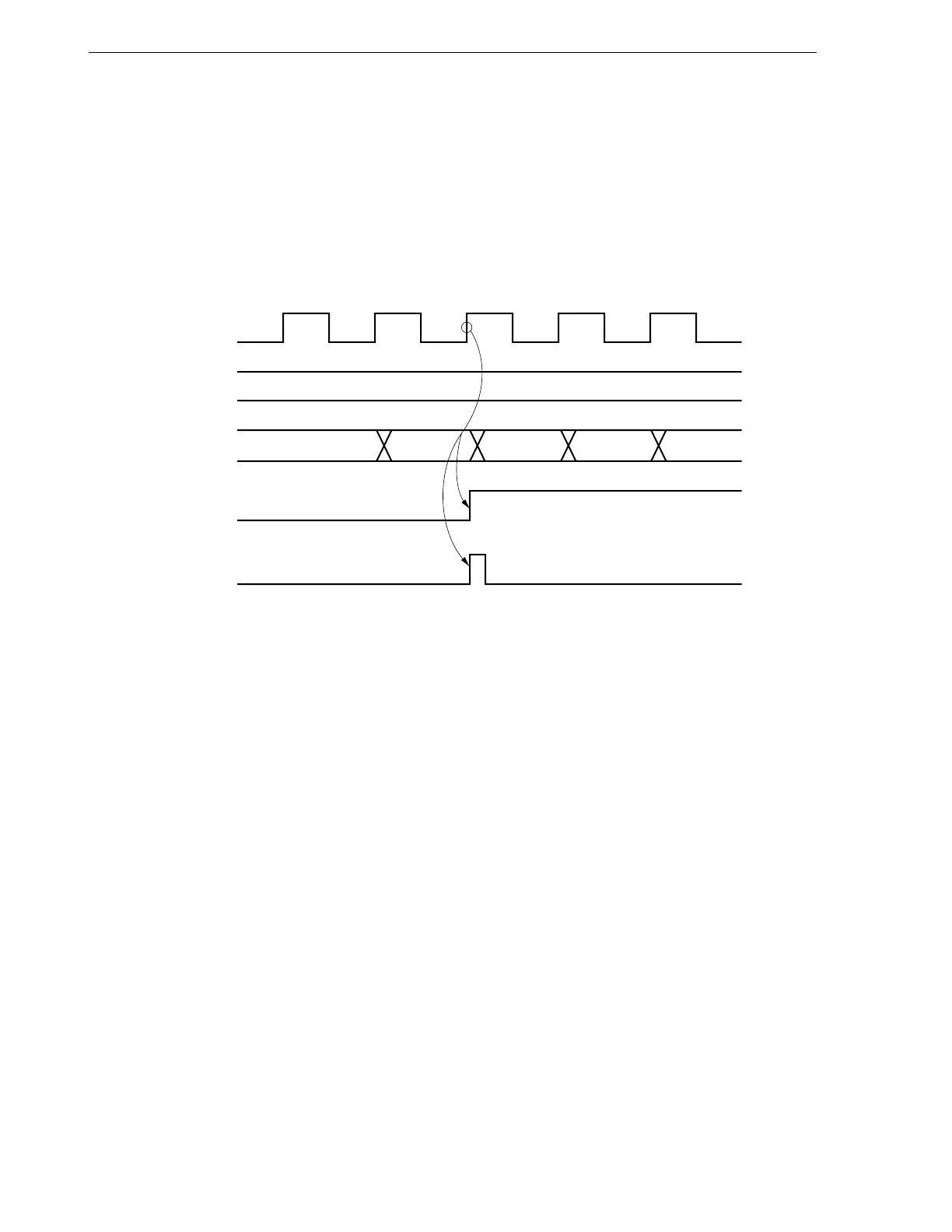

Figure 8-38. Operation Timing of OVF0 Flag
