NEC PD78052 - P60 to P63 Block Diagram; P64 to P67 Block Diagram

To Next Page

To Previous Page

145

CHAPTER 6 PORT FUNCTIONS

P-ch

PORT

PUO

Selector

PUO6

Output Latch

(P64 to P67)

PM64-PM67

Internal bus

P64/RD,

P65/WR,

P66/WAIT,

P67/ASTB

PORT

Selector

Output Latch

(P60 to P63)

PM60-PM63

Internal bus

P60-P63

Mask Option Resistor

Mask ROM products

only. PROM versions

have no pull-up resistor.

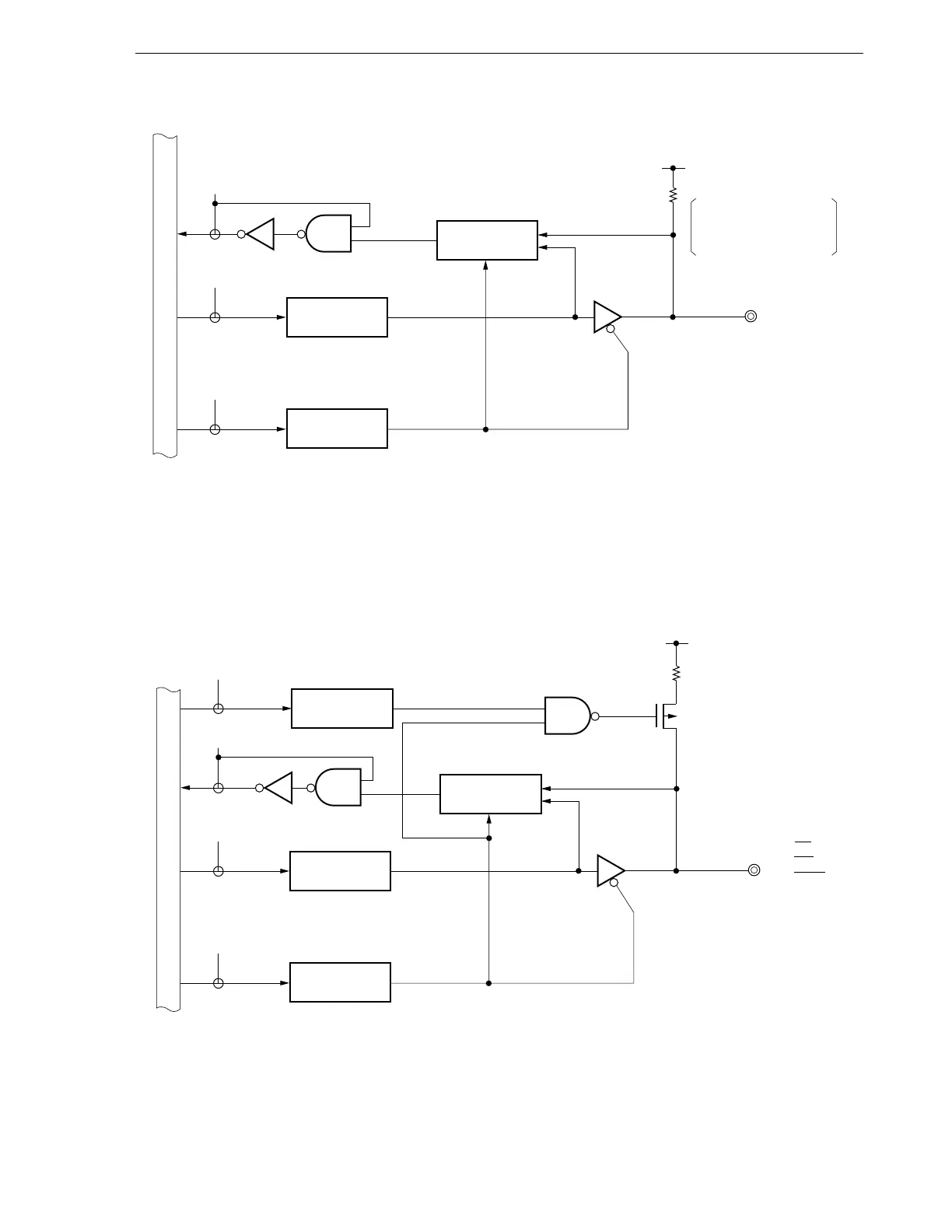

Figure 6-13. P60 to P63 Block Diagram

PM : Port mode register

RD : Port 6 read signal

WR : Port 6 write signal

Figure 6-14. P64 to P67 Block Diagram

PUO : Pull-up resistor option register

PM : Port mode register

RD : Port 6 read signal

WR : Port 6 write signal
