557

CHAPTER 26

PD78P054, 78P058

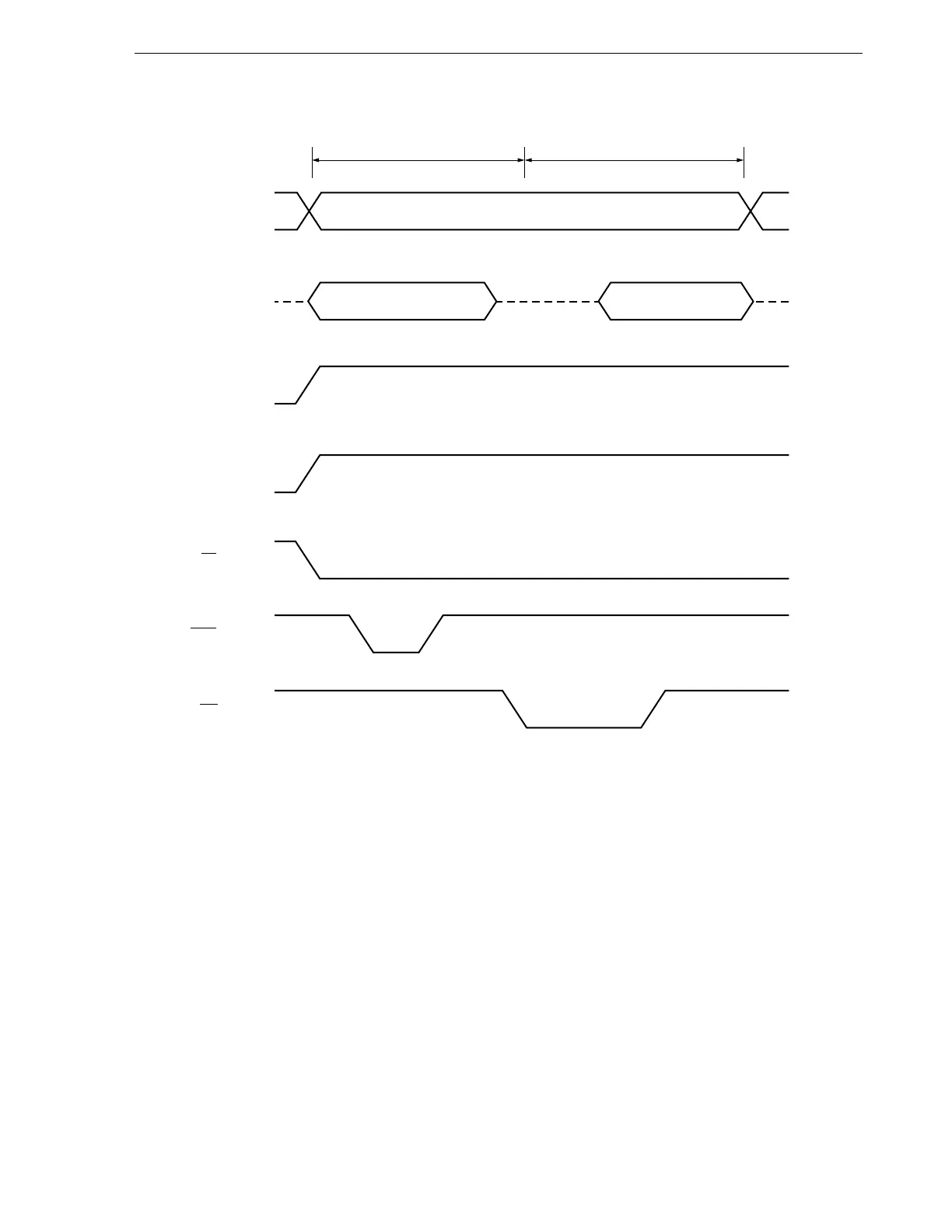

Figure 26-7. Byte Program Mode Timing

Cautions 1. Be sure to apply V

DD before applying VPP, and remove it after removing VPP.

2. V

PP must not exceed +13.5 V including overshoot voltage.

3. Disconnecting/inserting the device from/to the on-board socket while +12.5 V is being applied

to the VPP pin may have an adverse affect on device reliability.

A0-A16

D0-D7

Program

Hi-Z

Program Verify

Data Input Data Output

+1.5

PGM
