222

CHAPTER 9 8-BIT TIMER/EVENT COUNTERS 1 AND 2

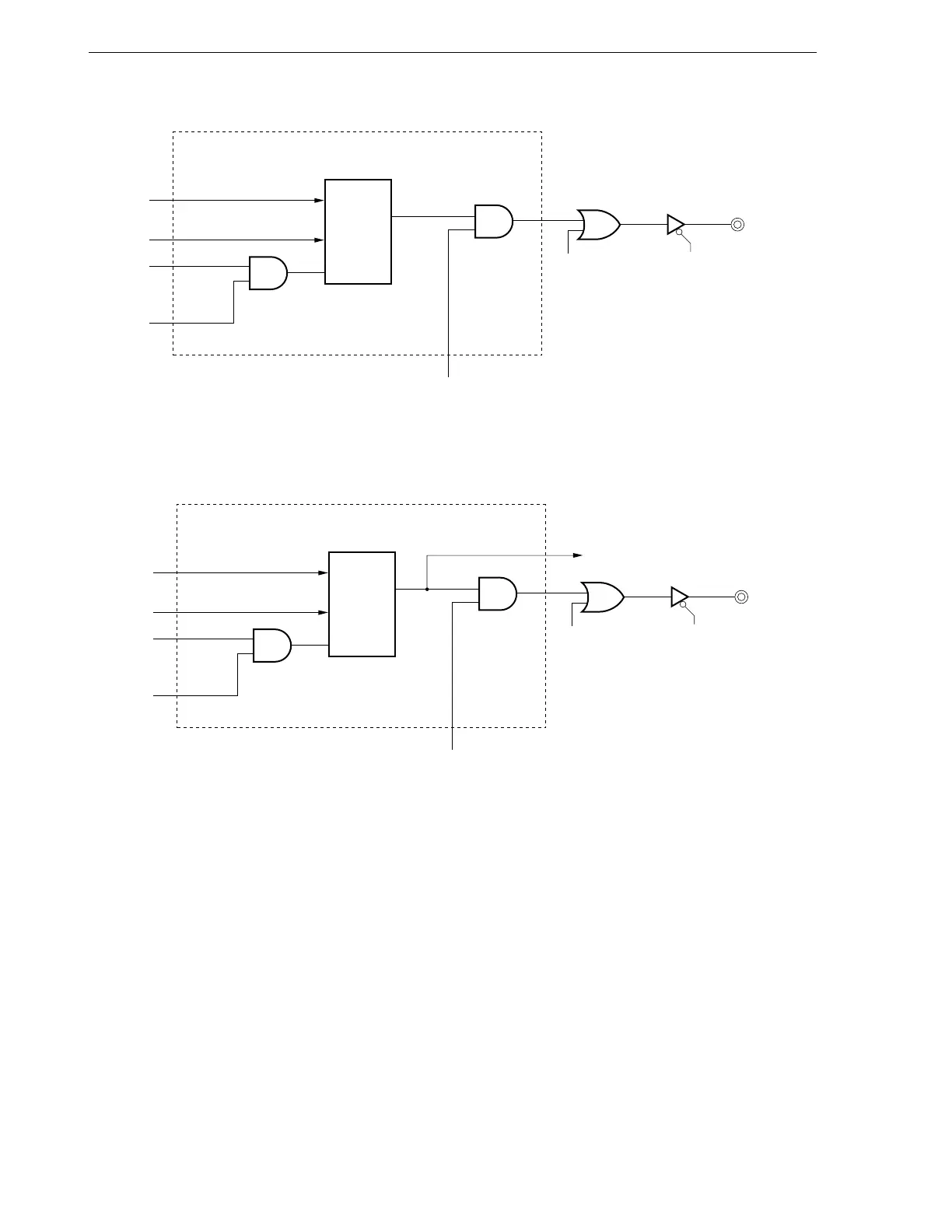

Figure 9-2. Block Diagram of 8-Bit Timer/Event Counter Output Control Circuit 1

Remark The section in the broken line is an output control circuit.

Figure 9-3. Block Diagram of 8-Bit Timer/Event Counter Output Control Circuit 2

Remarks 1. The section in the broken line is an output control circuit.

2. f

SCK : Serial clock frequency

LVR2

LVS2

TOC15

INTTM2

INV

Level F/F

(LV2)

SCK

P32

Output Latch

PM32

TOE2

TO2/P32

LVR1

LVS1

TOC11

INTTM1

INV

P31

Output Latch

TOE1

PM31

TO1/P31

Level F/F

(LV1)
