NEC PD78052 - Program Execution Flow; Program Transition Diagram (When One Place Is Corrected)

To Next Page

To Previous Page

544

CHAPTER 25 ROM CORRECTION

Correction place

Internal ROM

JUMP

FFFFH

F7FFH

F7FDH

xxxxH

0000H

(1)

(2)

(3)

BR !JUMP

Correction program

25.6 Program Execution Flow

Figures 25-9 and 25-10 show the program transition diagrams when the ROM correction is used.

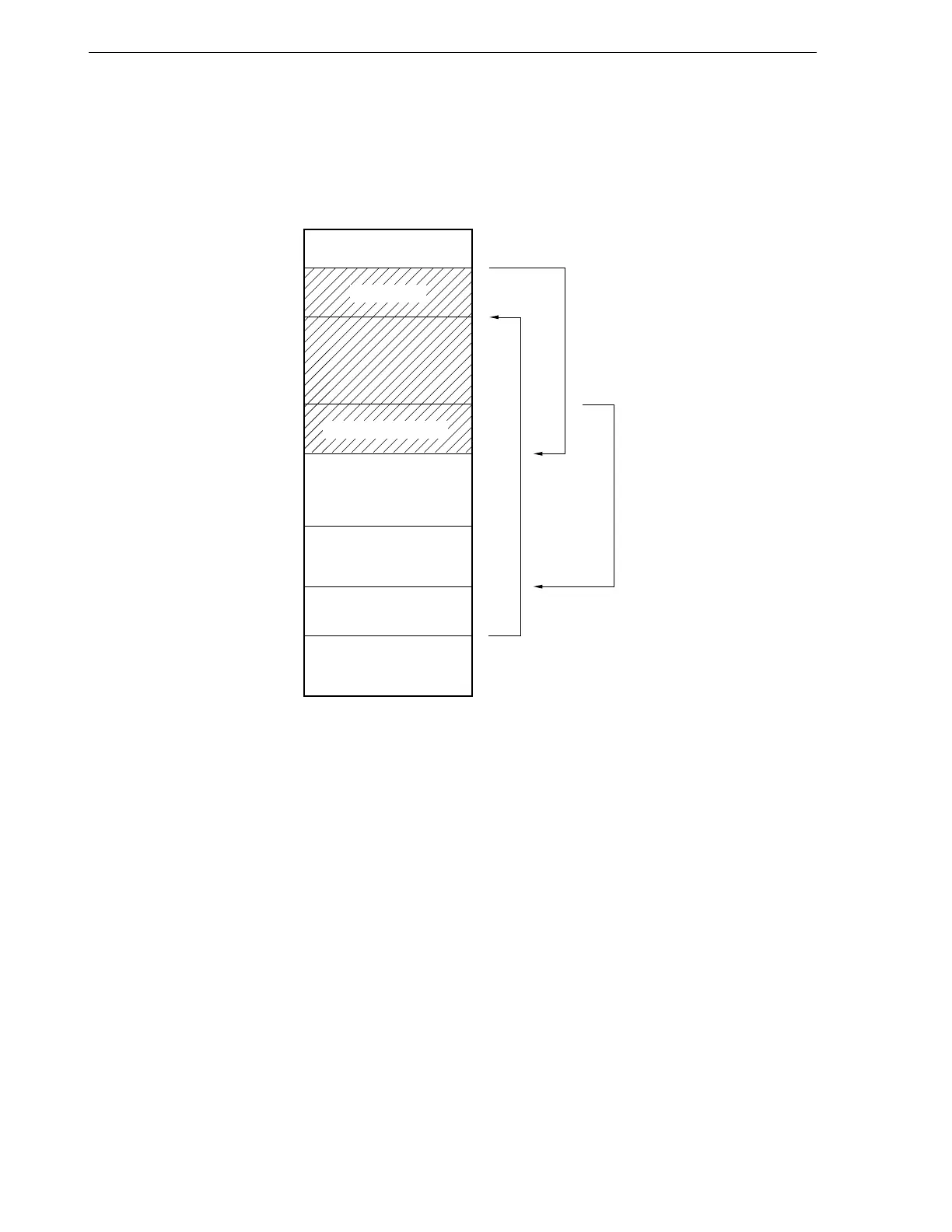

Figure 25-9. Program Transition Diagram (when one place is corrected)

(1) Branches to address F7FDH when fetch address matches correction address

(2) Branches to correction program

(3) Returns to internal ROM program

Remark Area filled with diagonal lines : Internal expansion RAM

JUMP : Correction program start address
