180

CHAPTER 8 16-BIT TIMER/EVENT COUNTER

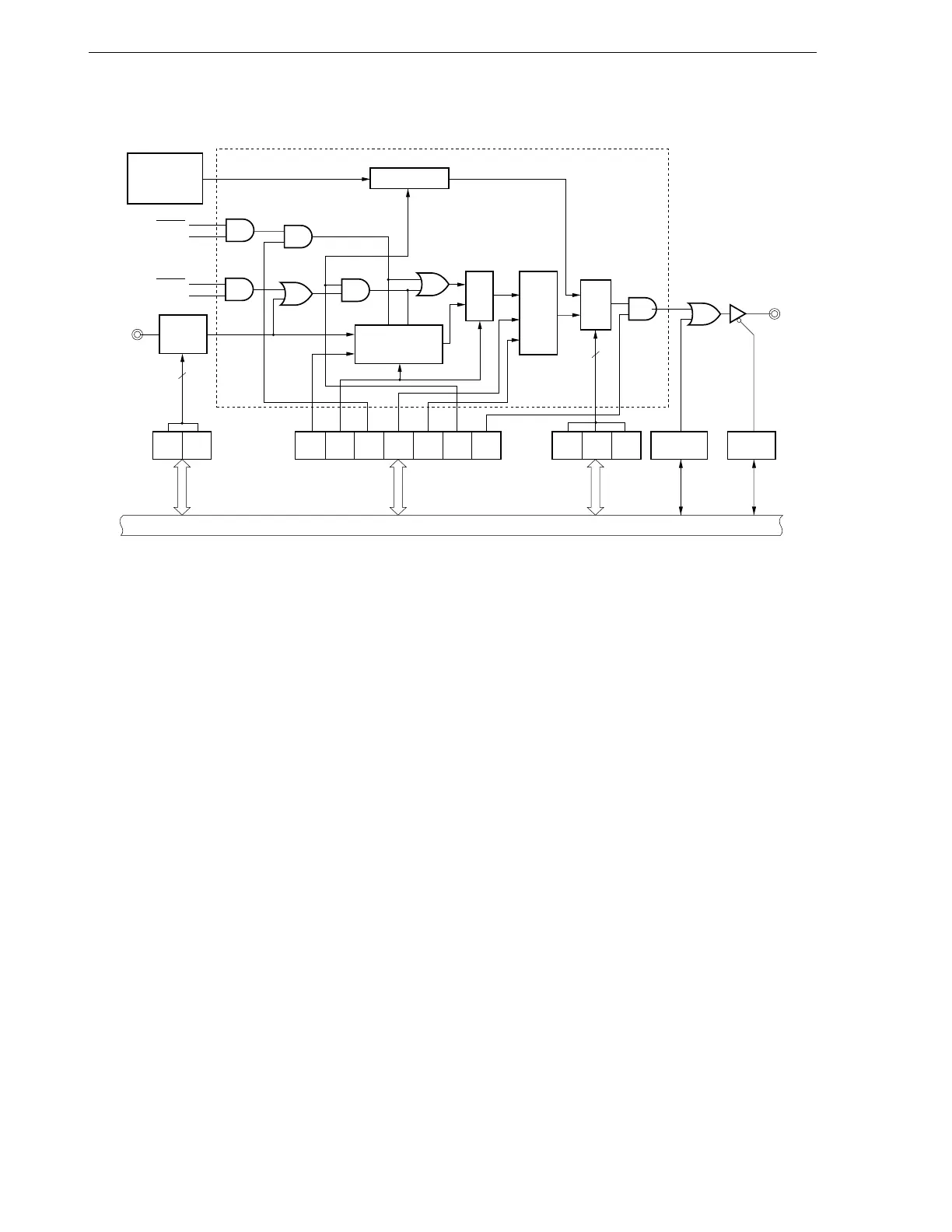

Figure 8-2. 16-Bit Timer/Event Counter Output Control Circuit Block Diagram

Remark The circuitry enclosed by the dotted line is the output control circuit.

PWM Pulse

Output Control

Circuit

Edge

Detection

Circuit

TI00/P00/

INTP0

OSPT

16-Bit Timer Output

Control Register

OSPE TOC04 LVS0 LVR0 TOC01 TOE0

Selector

INV

Level

Inversion

CRC02

INTTM01

CRC00

INTTM00

One-Shot Pulse

Output Control

Circuit

ES11 ES10

External Interrupt

Mode Register 0

16-Bit Timer Mode

Control Register

TMC03 TMC02 TMC01

P30 Output

Latch

PM30

Port Mode

TO0/P30

Internal Bus
