UX5000 IP Data Maintenance
6 - 16 Data Maintenance Tool
5. Set every item on the Download screen, and click the [Run] button.
1. Specified Terminal
Specify the extension number or IP address of the terminal to
which the data is uploaded.
✎ To enter Extension Number, both the PC running this tool and the
terminal must be connected to the same segmented network.
2. User authentication
Specify an ID and password to log into the terminal.
ID: USER
Password: 0000 (Default)
3. Network setting of this computer
Select the IP address of the PC on which this tool is running.
The following screen appears after the [Run] button is clicked.
✎ When download is cancelled, the file transfer to the terminal may be completed
and then the file may be updated depending on the timing.

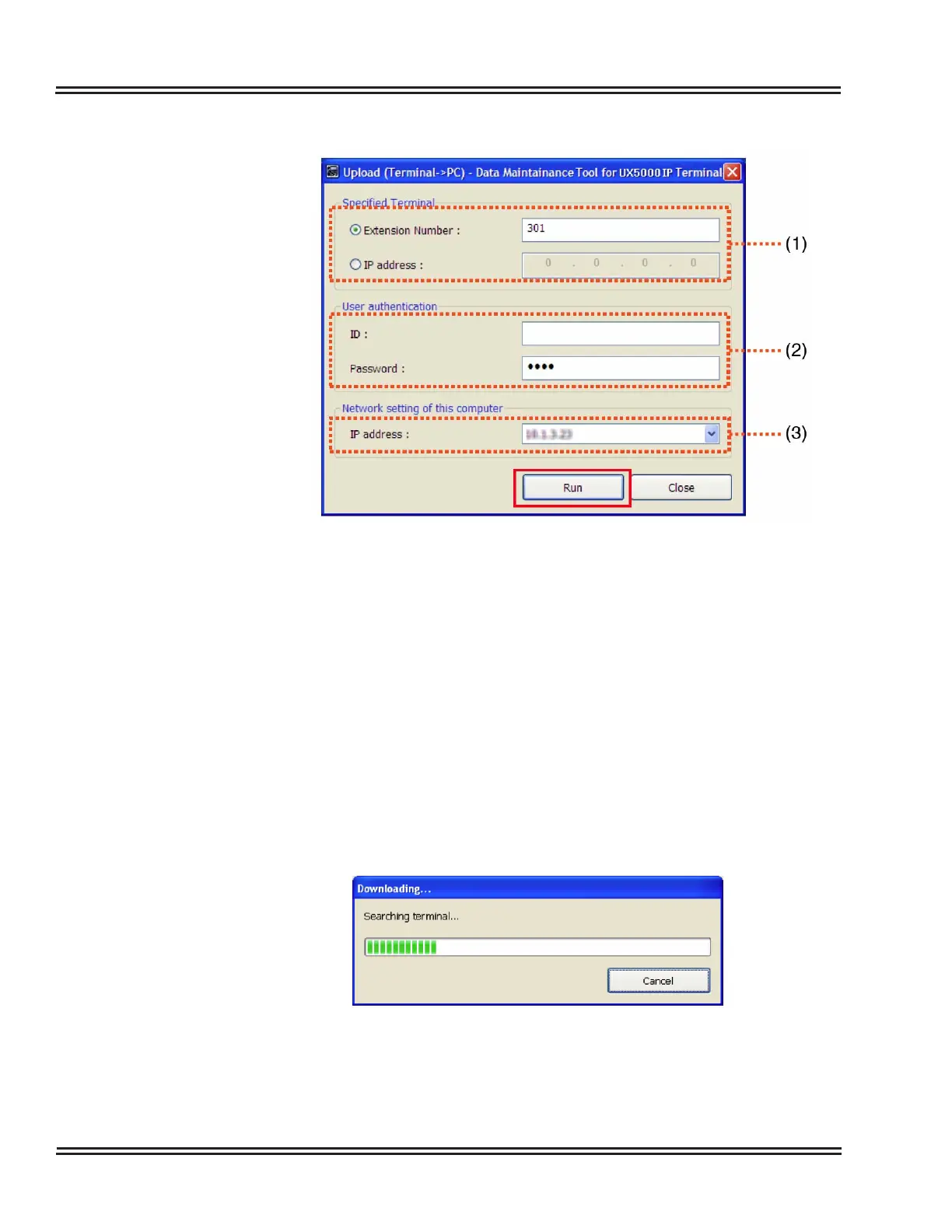

Figure 6-21 Upload Selection Screen
Figure 6-22 Download Progress Screen
To Next Page
