UX5000 IP Phone Manager
UX5000 IP Resource Manual 1 - 11
Click the “Execute” button to finish the import.
4. Export
The IP Phone Manager will allow an active list of terminals to be exported
in CSV format for later import or to save a current database for
examination. All terminal data is exported, not just the terminals checked
in the main screen. Using an exported file with the Auto Configuration
application allows for multiple terminal-specific entry instead of editing a
single configuration used for all terminals. The exported CSV file will also
contain NAT settings. This information is not displayed in the IP Phone
Manager application.
4.1 Terminal Data
When performing a search, the following information is retrieved. The
information displayed in the window is determined by the ListCtrl setting
(page 1-5). The following items are available:

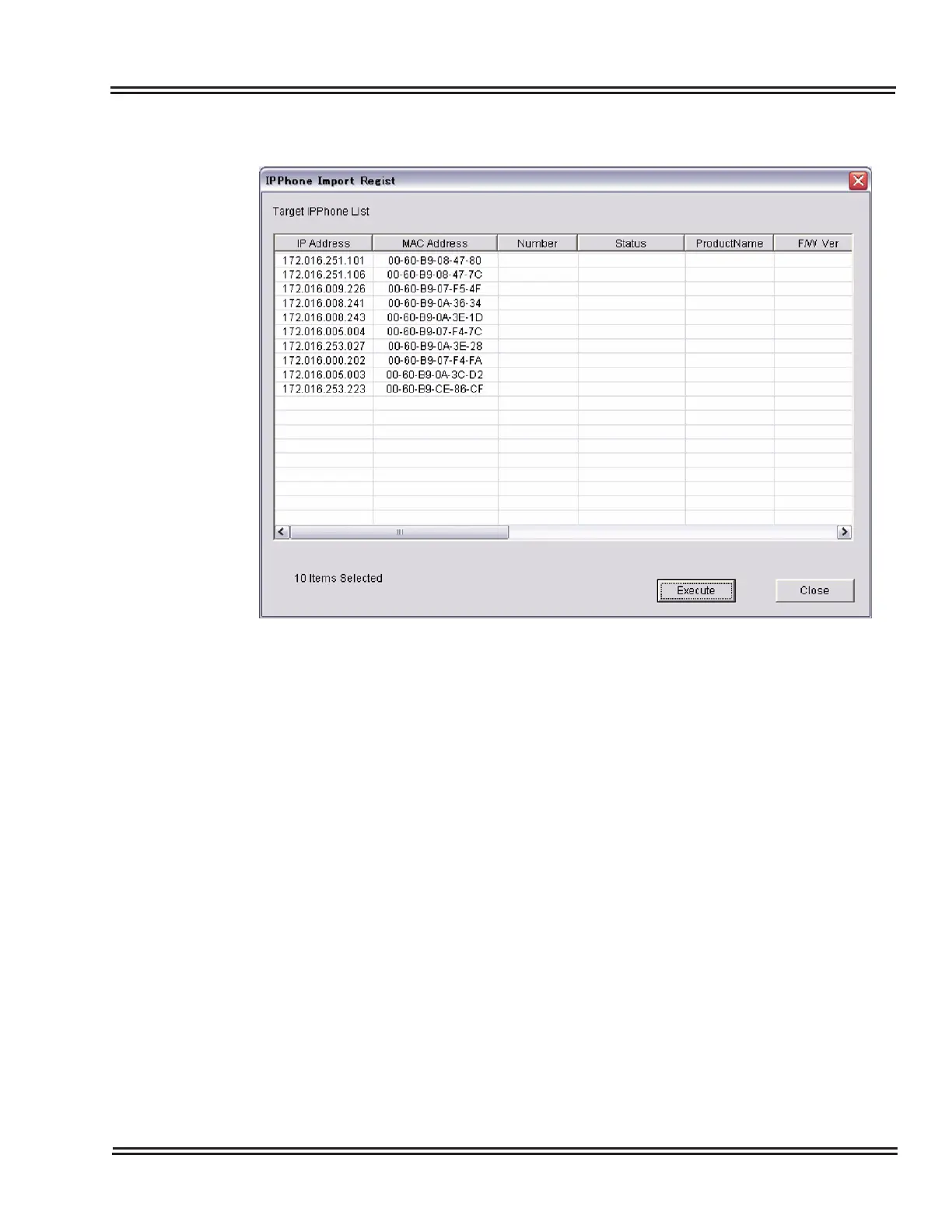

Figure 1-9 Import Process
