UX5000 IP Phone Manager
UX5000 IP Resource Manual 1 - 29
The details of the default (fixed) entries cannot be modified, however, new
terminal entries created with the Edit button will permit the entry to be
modified.
The following screen provides a sample of the Download Boot & Program
option. For this download, 4 IP terminals were selected and the Simultaneous
Download setting has an entry of 2. After clicking the Execute button, the
status for the terminals changes. Two terminals indicate “Downloading” while
the other two indicate “Waiting”. As the download completes (you can refer to
the percentage completed for each process in the bottom of the window), the
status changes to “Saving”. Once the save process is finished, the status
changes to “Complete” and the terminal(s) will automatically reset. Since the
terminals are reset, if further action is required, you must reconnect to the
terminals again.

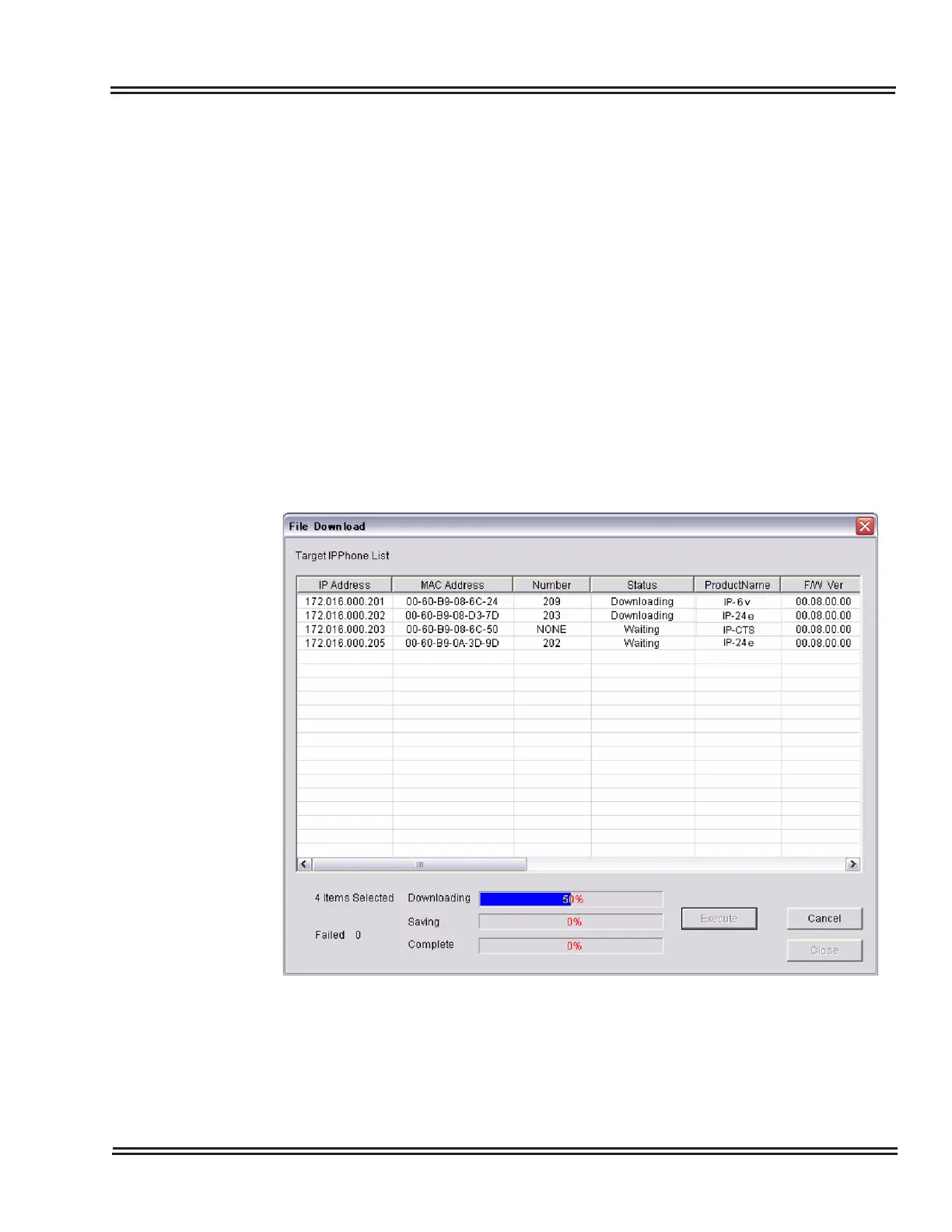

Figure 1-25 Download Process Screen
