NETGEAR GS752TP User Manual

Configure Quality of Service
151
GS752TP, GS728TP, and GS728TPP Gigabit Smart Switches

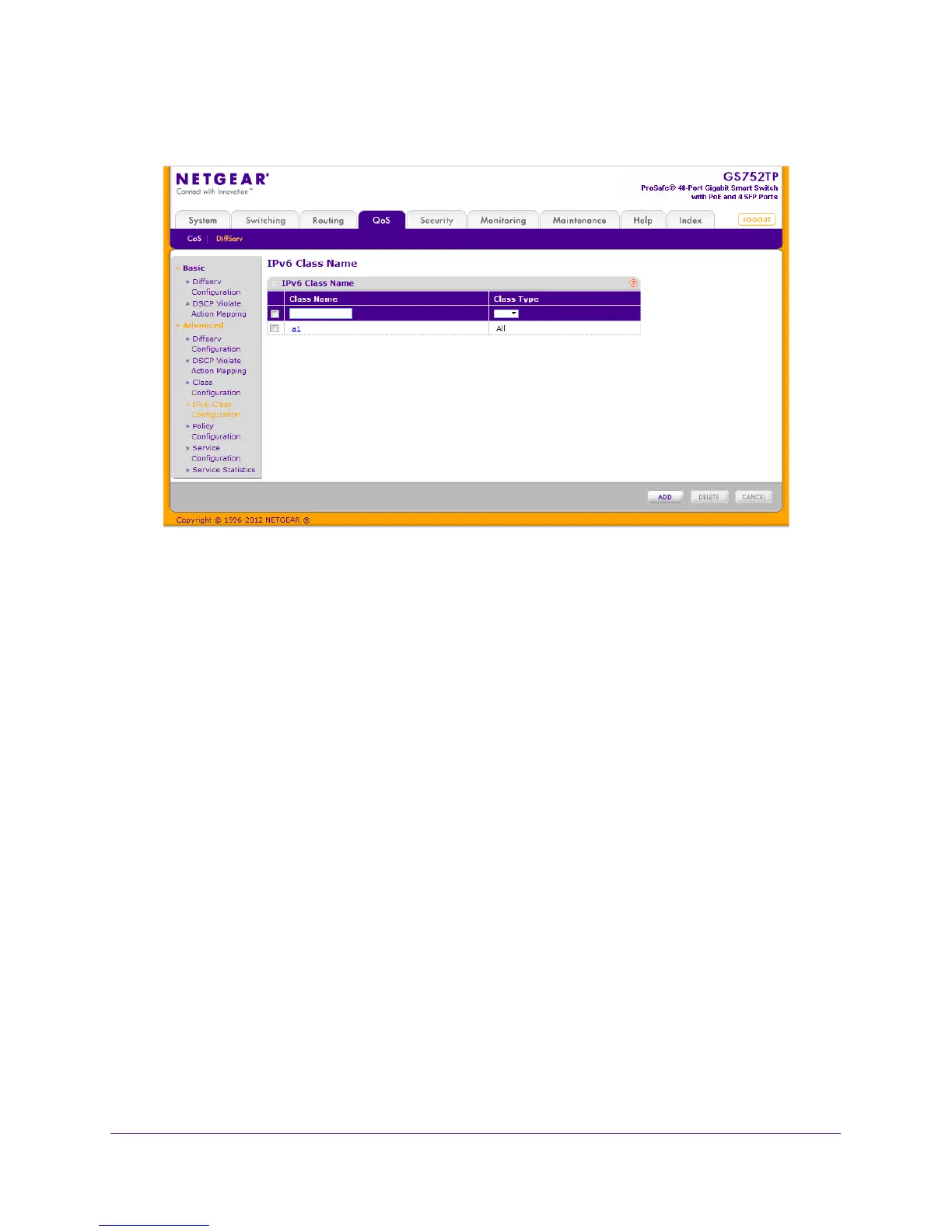

The following screen displays:
2. Enter the new class name.
3. Select the class type, and click Add.
The switch supports only the Class Type value All, which means all the various match
criteria defined for the class must be satisfied for a packet match.
All signifies the logical
AND of all the match criteria.
4. Click APPLY to save the class. Configuration changes take ef
fect immediately.
5. To configure this class, proceed to To configure an IPv6 class:
on page 150.
 To configure the class match criteria:
1. In the IPv6 Class Configuration screen, select the name of the class.

NETGEAR GS752TP Specifications

General

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Number of multicast groups filtered	1024
Fiber optic connector	SFP
SFP module slots quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	48
10G support	-
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Copper ethernet cabling technology	1000BASE-T, 100BASE-T, 10BASE-T
DHCP features	DHCP client
MAC address table	8000 entries
Packet buffer memory	8 MB
Number of static routes	32
Supported network protocols	IPv4, IPv6, TFTP, SNTP, TACACS+
Power consumption (typical)	384 W
Safety	CE, CSA, UL
Product color	Gray
Electromagnetic compatibility	CE, FCC, Class A EN 55022, Class A C-Tick, EN 50082-1, EN 55024, CCC
Mean time between failures (MTBF)	220447 h
Heat dissipation	1750.70 BTU/h
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 55 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Total Power over Ethernet (PoE) budget	15.4 W
Power over Ethernet plus (PoE+) ports quantity	8
Cables included	AC

Weight and Dimensions

Depth	316 mm
Width	440 mm
Height	43 mm
Weight	5100 g
