NETGEAR GS752TP User Manual

Configure Quality of Service
152
GS752TP, GS728TP, and GS728TPP Gigabit Smart Switches

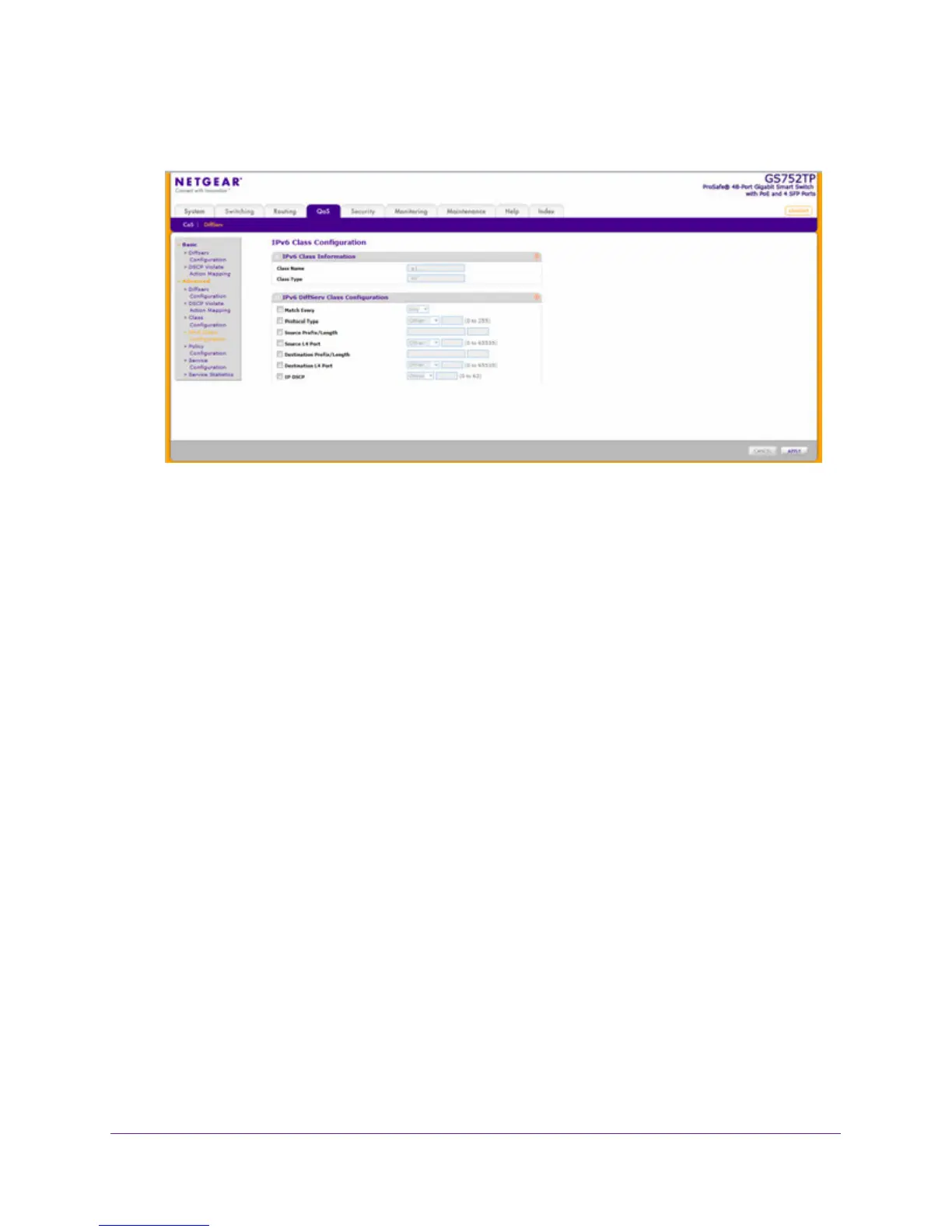

The following screen displays:
2. Click a class name (which is a hyperlink) for an existing class.
When you click a class name, the configuration part of the Class Configuration screen is
displayed. In this part of the screen, you define against which values traffic is checked
when this class is applied.
3. To define the criteria to associate with a DiffServ class, select one or more of the following
check boxes and enter the following data:
• Match Every
. Select
All to add a match condition to the specified class definition
whereby all packets are considered to belong to the class. In this case, no other field
can be configured.
• Protocol Type. Select a Layer 4 protocol. If you select Other, enter a protocol
number in the field that appears.
• Source Prefix/Length
. Enter a valid source IPv6 prefix. A prefix is always specified
with the prefix length. The valid range for a prefix is 0 to
FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF
. The valid range for a prefix length is
0–128.
• Source L4 Port. Select a keyword for the known source Layer 4 ports. If you select
Other
, enter a protocol number in the field that appears.
• Destination Prefix/Length. Enter a valid destination IPv6 prefix to compare against
an IPv6 packet. A prefix is always specified with the prefix length. The valid range for
a prefix is FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF
. The valid range for a
prefix length is 0–128.
• Destination L4 Port. Select a known destination Layer 4 ports. If you select Other
,
enter a protocol number in the field that appears.
• IP DSCP. Select a known DSCP value. If you select Other, enter a protocol number in
the field that appears.
4. Click APPLY to save the class. Configuration changes take ef
fect immediately.

NETGEAR GS752TP Specifications

General

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Number of multicast groups filtered	1024
Fiber optic connector	SFP
SFP module slots quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	48
10G support	-
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Copper ethernet cabling technology	1000BASE-T, 100BASE-T, 10BASE-T
DHCP features	DHCP client
MAC address table	8000 entries
Packet buffer memory	8 MB
Number of static routes	32
Supported network protocols	IPv4, IPv6, TFTP, SNTP, TACACS+
Power consumption (typical)	384 W
Safety	CE, CSA, UL
Product color	Gray
Electromagnetic compatibility	CE, FCC, Class A EN 55022, Class A C-Tick, EN 50082-1, EN 55024, CCC
Mean time between failures (MTBF)	220447 h
Heat dissipation	1750.70 BTU/h
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 55 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Total Power over Ethernet (PoE) budget	15.4 W
Power over Ethernet plus (PoE+) ports quantity	8
Cables included	AC

Weight and Dimensions

Depth	316 mm
Width	440 mm
Height	43 mm
Weight	5100 g
