ProSafe Gigabit Quad WAN SSL VPN Firewall SRX5308 Reference Manual
Virtual Private Networking Using IPsec Connections 5-43
v1.0, April 2010

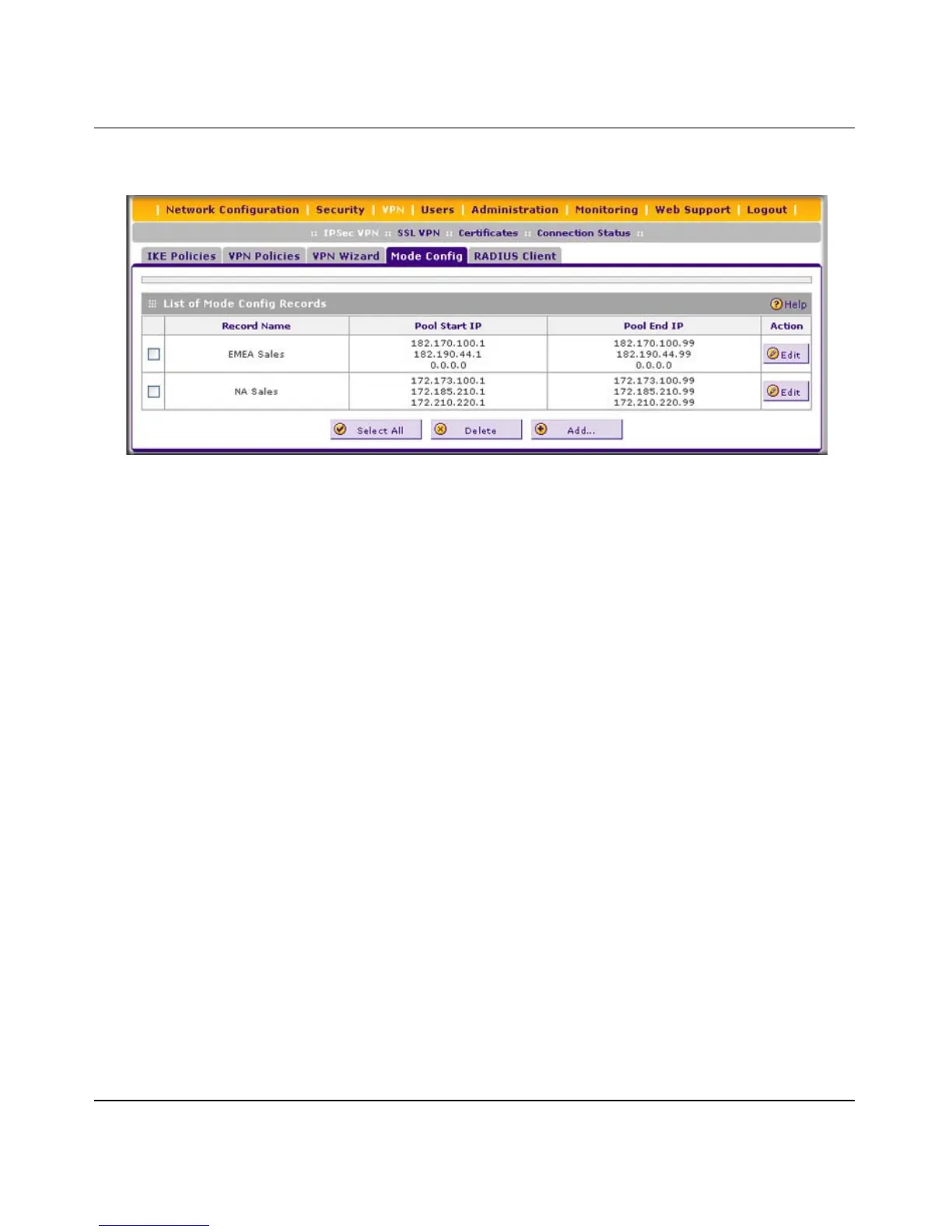

2. Click the Mode Config submenu tab. The Mode Config screen displays.
As an example, the screen shows two Mode Config records with the names EMEA Sales and
NA Sales:
• For EMEA Sales, the screen shows a first pool (182.170.100.1 through 182.170.100.99)
and second pool (182.190.44.1 through 182.190.44.99).
• For NA Sales, the screen shows a first pool (172.173.100.1 through 172.173.100.99), a
second pool (172.185.210.1 through 172.185.210.99), and a third pool (172.210.220.1
through 172.210.220.99).
3. Under the List of Mode Config Records table, click the Add table button. The Add Mode
Config Record screen displays (see Figure 5-26 on page 5-44).
Figure 5-25
