NETGEAR SRX5308 - ProSafe® Quad WAN Gigabit SSL VPN Firewall

ProSafe Gigabit Quad WAN SSL VPN Firewall SRX5308 Reference Manual
Virtual Private Networking Using SSL Connections 6-15
v1.0, April 2010
3. In the Add New Resource section of the screen, specify information in the following fields:
• Resource Name. A descriptive name of the resource for identification and management
purposes.
• Service. From the Service drop-down list, select the type of service to which the resource
applies:
– VPN Tunnel. The resource applies only to a VPN tunnel.
– Port Forwarding. The resource applies only to a port forwarding.
– All. The resource applies both to a VPN tunnel and to port forwarding.
4. Click the Add table button. The new resource is added to the List of Resources table.
To delete one or more network resources:
1. Select the check box to the left of the network resource that you want to delete, or click the
Select All table button to select all VPN policies.
2. Click the Delete table button.
Editing Network Resources to Specify Addresses
After you have defined a resource on the Resources screen, you can assign an IP or network
address and a port or port range to the resource.

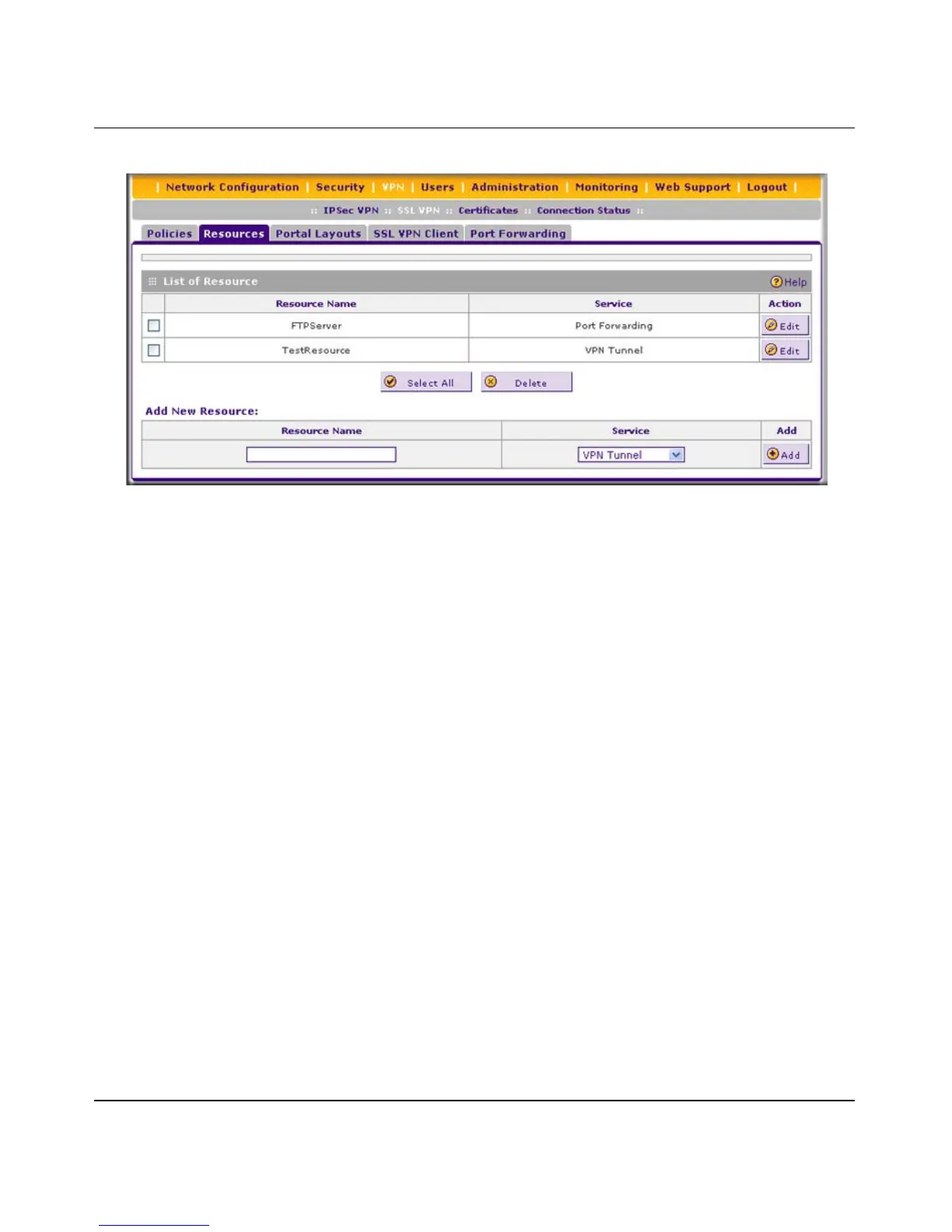

Figure 6-5
