NETGEAR SRX5308 - ProSafe® Quad WAN Gigabit SSL VPN Firewall

ProSafe Gigabit Quad WAN SSL VPN Firewall SRX5308 Reference Manual
Virtual Private Networking Using SSL Connections 6-19
v1.0, April 2010
2. Make your selection from the following Query options:
• Click Global to view all global policies.
• Click Group to view group policies, and choose the relevant group’s name from the drop-
down list.
• Click User to view user policies, and choose the relevant user’s name from the drop-down
list.
3. Click the Display action button. The List of SSL VPN Policies table displays the list for your
selected Query option.
Adding a Policy
To add an SSL VPN policy:

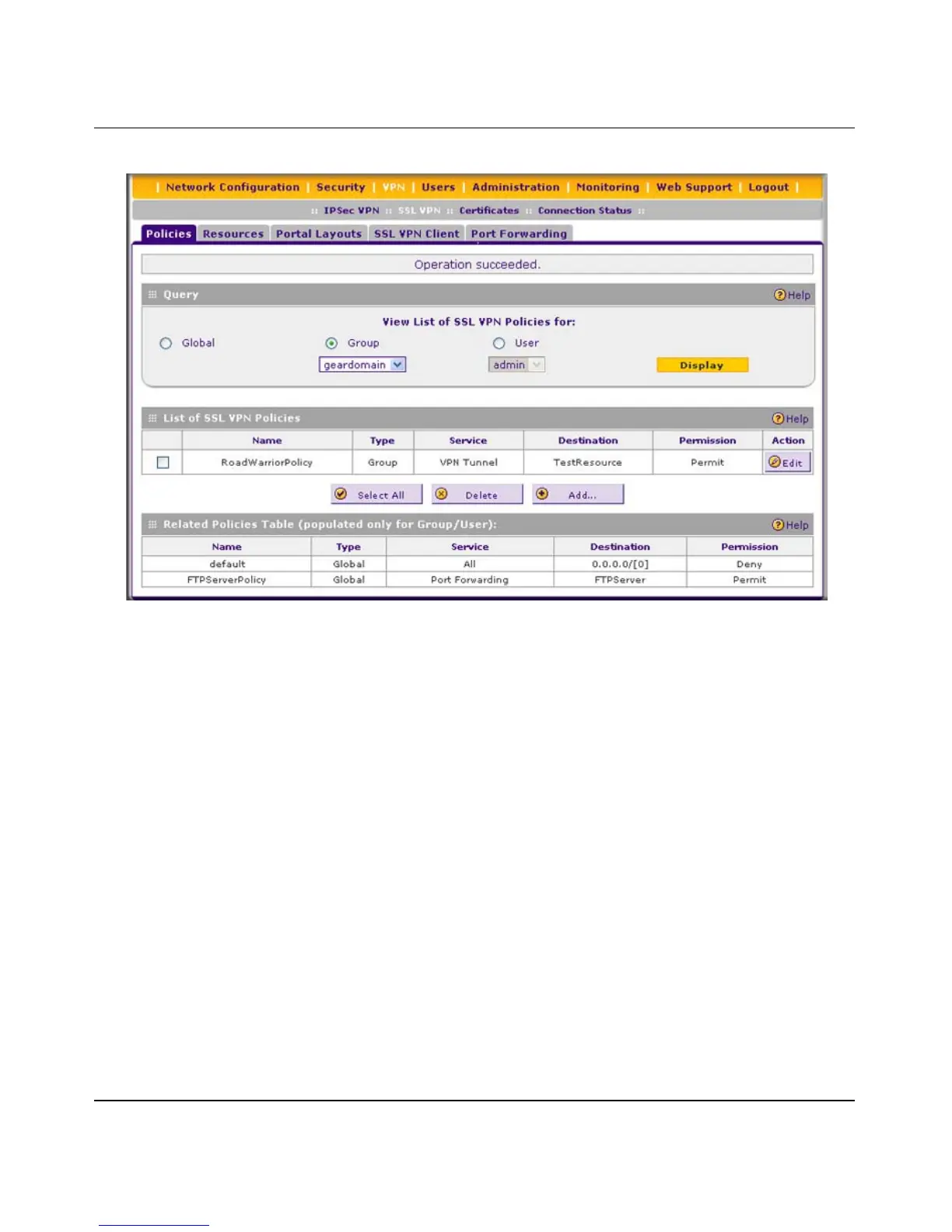

1. Select VPN > SSL VPN from the menu. The SSL VPN submenu tabs display, with the
Policies screen in view (see Figure 6-7, which shows some examples).
2. Under the List of SSL VPN Policies table, click the Add table button. The Add Policy screen
displays (see Figure 6-8 on page 6-20).
Figure 6-7
