Viewing the VPN Firewall IPsec VPN Connection Status
To review the status of current IPsec VPN tunnels:
Select VPN > Connection Status from the menu. The VPN Connection Status submenu tabs
display, with the IPSec VPN Connection Status screen in view. (Figure 5-18 shows an IPsec SA as
an example.)
The Active IPSec SAs table lists each active connection with the information that is described in
Table 5-8 on page 5-19. The default poll interval is 5 seconds. To change the poll interval period,
enter a new value in the Poll Interval field, and then click Set Interval. To stop polling, click
Stop.

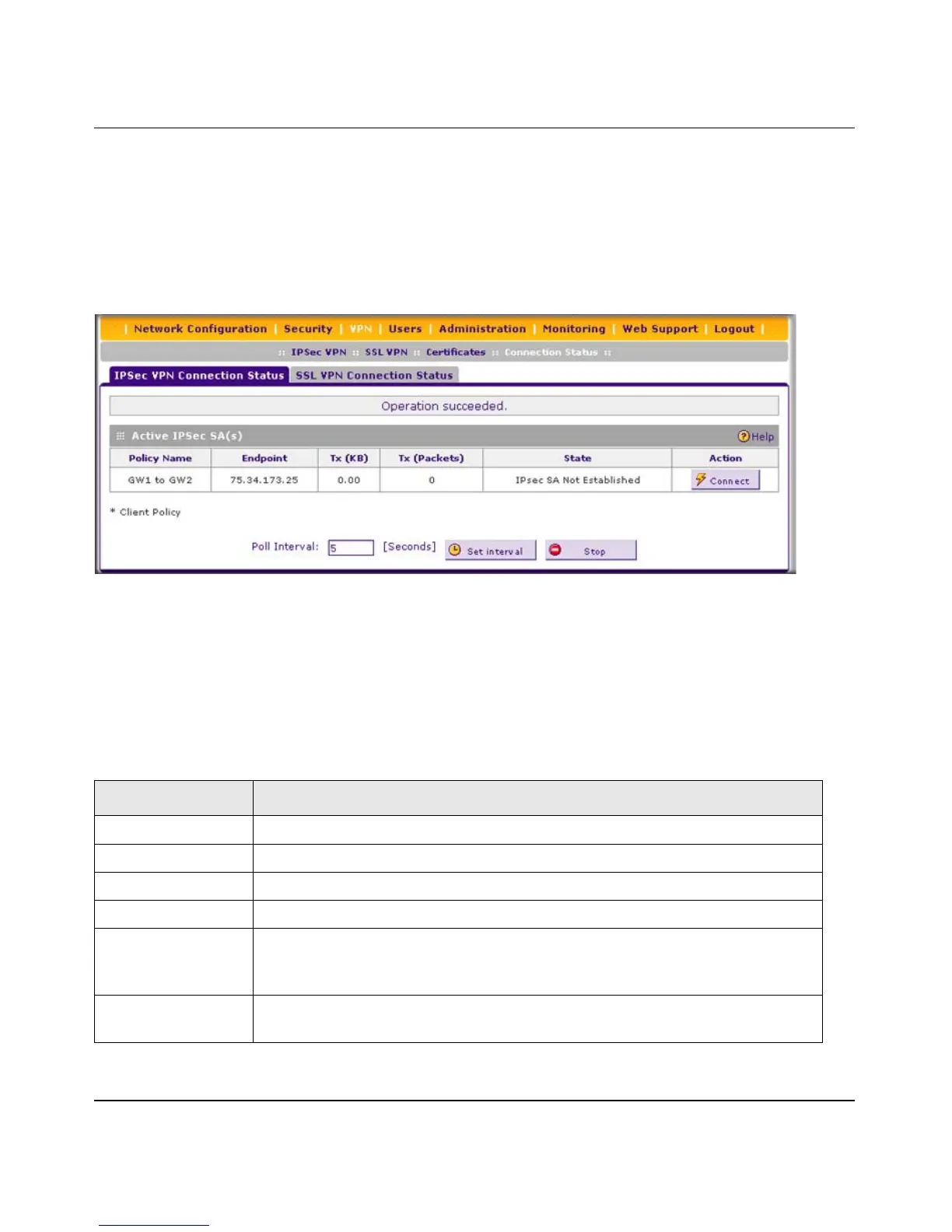

Figure 5-18
Table 5-8. IPsec VPN Connection Status Information
Item Description (or Subfield and Description)
Policy Name The name of the VPN policy that is associated with this SA.
Endpoint The IP address on the remote VPN endpoint.
Tx (KB) The amount of data that is transmitted over this SA.
Tx (Packets) The number of IP packets that are transmitted over this SA.
State The current status of the SA. Phase 1 is the authentication phase and Phase 2 is
key exchange phase. If there is no connection, the status is IPsec SA Not
Established.
Action Click the Connect table button to build the connection, or click the Disconnect
table button to terminate the connection.
