ProSafe Gigabit Quad WAN SSL VPN Firewall SRX5308 Reference Manual
Monitoring System Access and Performance 9-11
v1.0, April 2010
Viewing the Detailed Status Screen
To view the Detailed Status screen:
1. Select Monitoring > Router Status. The Status tabs display, with the Router Status screen in
view (see Figure 9-4).
2. Click the Detailed Status submenu tab. The Detailed Status screen displays. (Because of the
large size of the screen and to avoid duplication of information, Figure 9-5 on page 9-12
shows parts of the screen.)

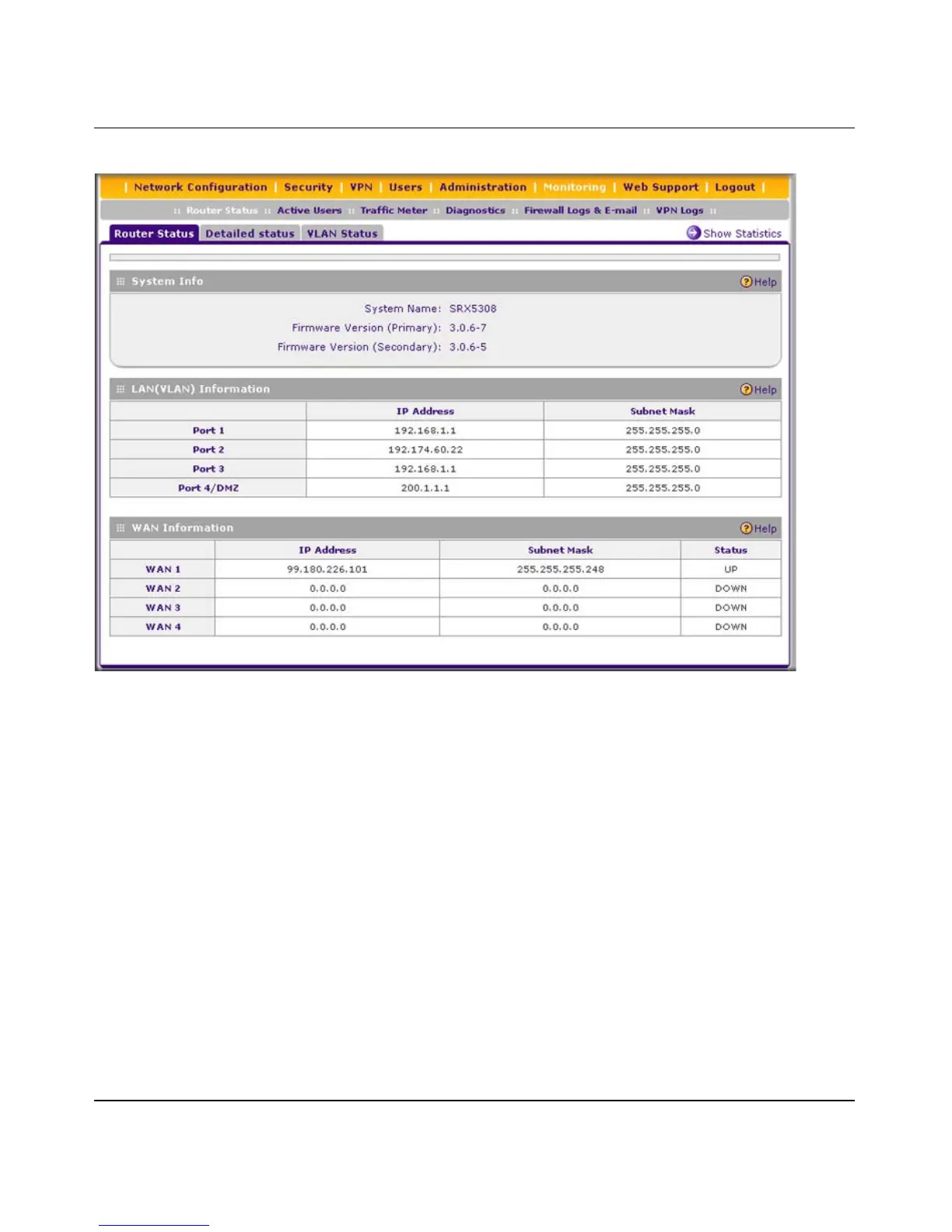

Figure 9-4
