6.4 Software for reading files
FRA5087
6.4 Software for reading files
The software “DSPL5090.EXE”, which has a capability of reading out the file produced by the
FRA5087 and of displaying the read-out data in the form of the Bode diagram on the PC screen
can be downloaded from the NF Corporation website at http://www.ntcorp.co.jp.
This software operates under Windows95 and up (i.e., this does not operate under Windows3.1
and previous versions to it).
Important functions of this software are the following:
・To read out data files as measured by the FRA5087 from the USB flash drive.
・To store the read-out data in the CSV format file.
・To display the read-out data in the form of Bode diagram in the screen.
・To print (plot) the Bode diagram of the read-out data.
An example is illustrated in the Figure below, where a Bode diagram is shown, which was
obtained through the use of DSPL5090, based on the data file saved in a USB flash drive that was
originated from the FRA5087 measurement data.

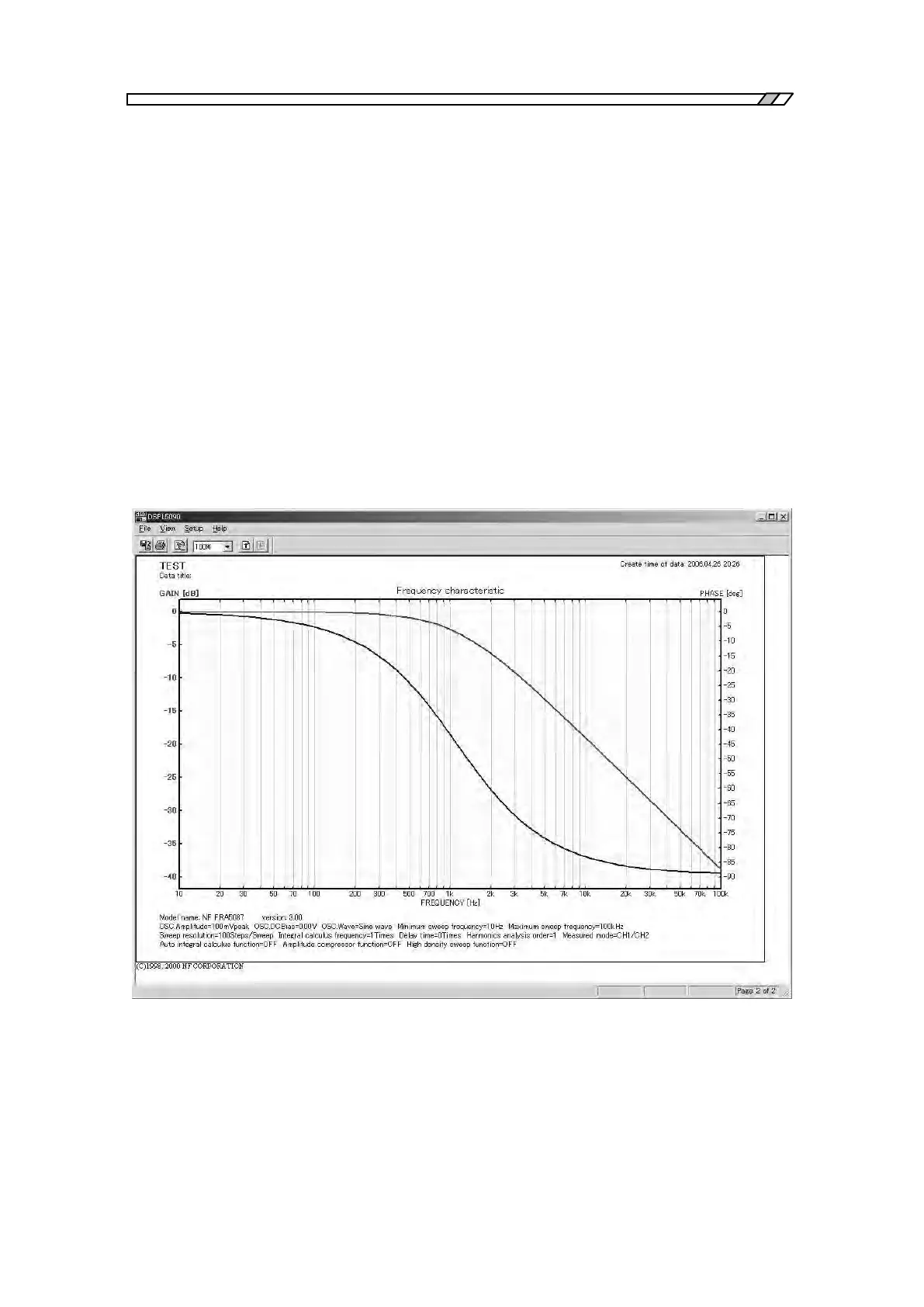

Fig. 6-3 Example of graph display by DSPL5090
