8.5 Performance test

FRA5087

8-7

8.5.5 Oscillator distortion

Oscillator sine wave distortion is tested.

a) Setting

FRA5087 Distortion meter

Output waveform Sinusoidal wave Noise distortion (THD) measuring mode

Output voltage

AC 10 Vpeak

DC bias 0 V

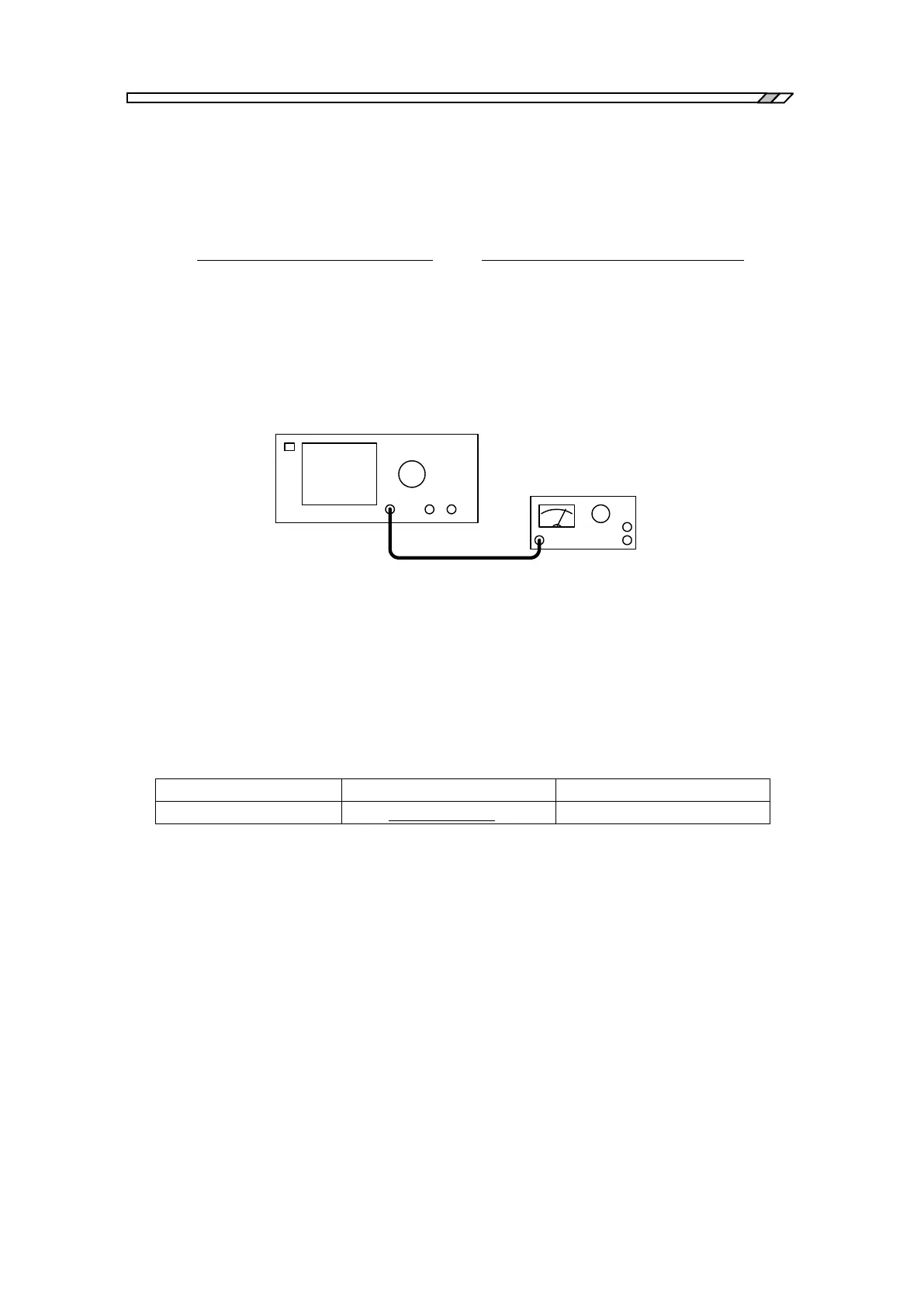

b) Connection

FRA5087

Distortion meter

BNC-BNC

Coaxial cable

OSC CH1 CH2

c) Procedure

Set the oscillator frequency as follows and read the distortion meter indication. Set the

distortion meter lowpass filter (LPF) to 100 kHz.

Oscillator frequency: 10 kHz

d) Judgment

Oscillator frequency

Distortion (THD)

Tolerance

10 kHz

 0.2 %

THD: Total harmonic distortion
