8.5 Performance test

FRA5087

8-9

8.5.7 Analyzer IMRR

IMRR at 60 Hz is tested.

a) Setting

FRA5087 oscillator FRA5087 analyzer

Frequency 60 Hz Integration 100 cycles

Output waveform Sinewave Measuring mode CH1, CH2

Output voltage Display mode X axis : logF

AC 10 Vpeak Y1 axis : dBR

DC bias 0 V Y2 axis : 

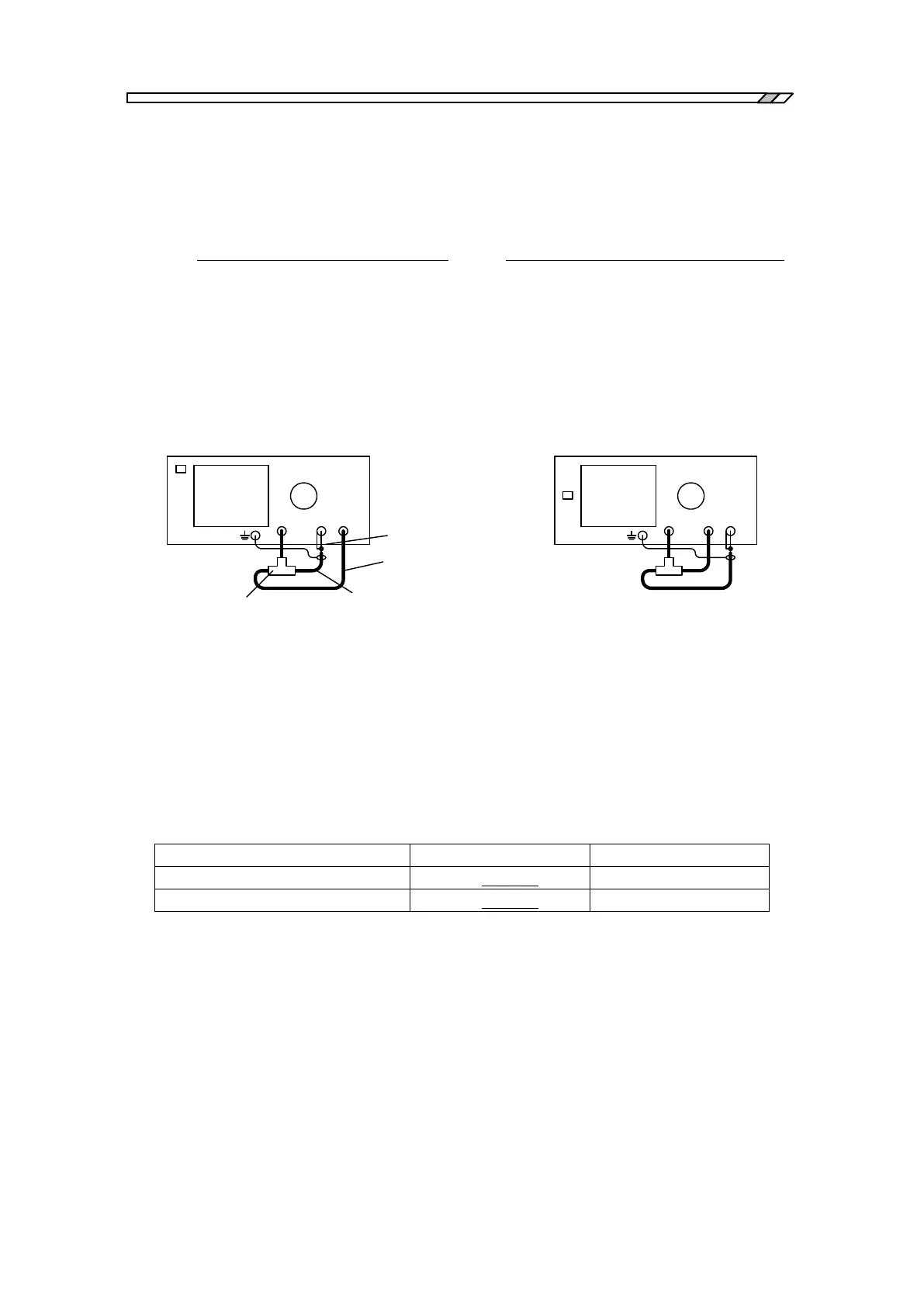

b) Connection

FRA5087

BNC-BNC

coaxial cable

BNC T-type

divider

BNC-alligator clip

coaxial cable

BNC shorting

plug

OSC CH1 CH2

FRA5087

OSC CH1 CH2

CH1 IMRR measurement CH2 IMRR measurement

c) Procedure

Set the analyzer mode as follows. Conduct Single measurement with FRA5087.

Read the dBR measuring results from the LCD screen.

Analyzer mode for CH1 IMRR measurement: CH2/CH1

Analyzer mode for CH2 IMRR measurement: CH1/CH2

d) Judgment

Connection

Measured value

Tolerance

CH1 (analyzer mode: CH2/CH1)

dBR= dB

More than 120 dB

CH2 (analyzer mode: CH1/CH2)

dBR= dB

More than 120 dB
