NF FRA5087 - Analyzer Dynamic Range

8.5 Performance test
FRA5087
8-10
8.5.8 Analyzer dynamic range
The dynamic range is tested.
a) Setting
FRA5087 oscillator FRA5087 analyzer
Sweep upper limit frequency 10 MHz Integration 2,000 cycles
Sweep lower limit frequency 10 Hz Measuring mode CH1, CH2
Output waveform Sinewave Display mode X axis : logF
Output voltage Y1 axis: dBR
AC 10 Vpeak
DC bias 0 V

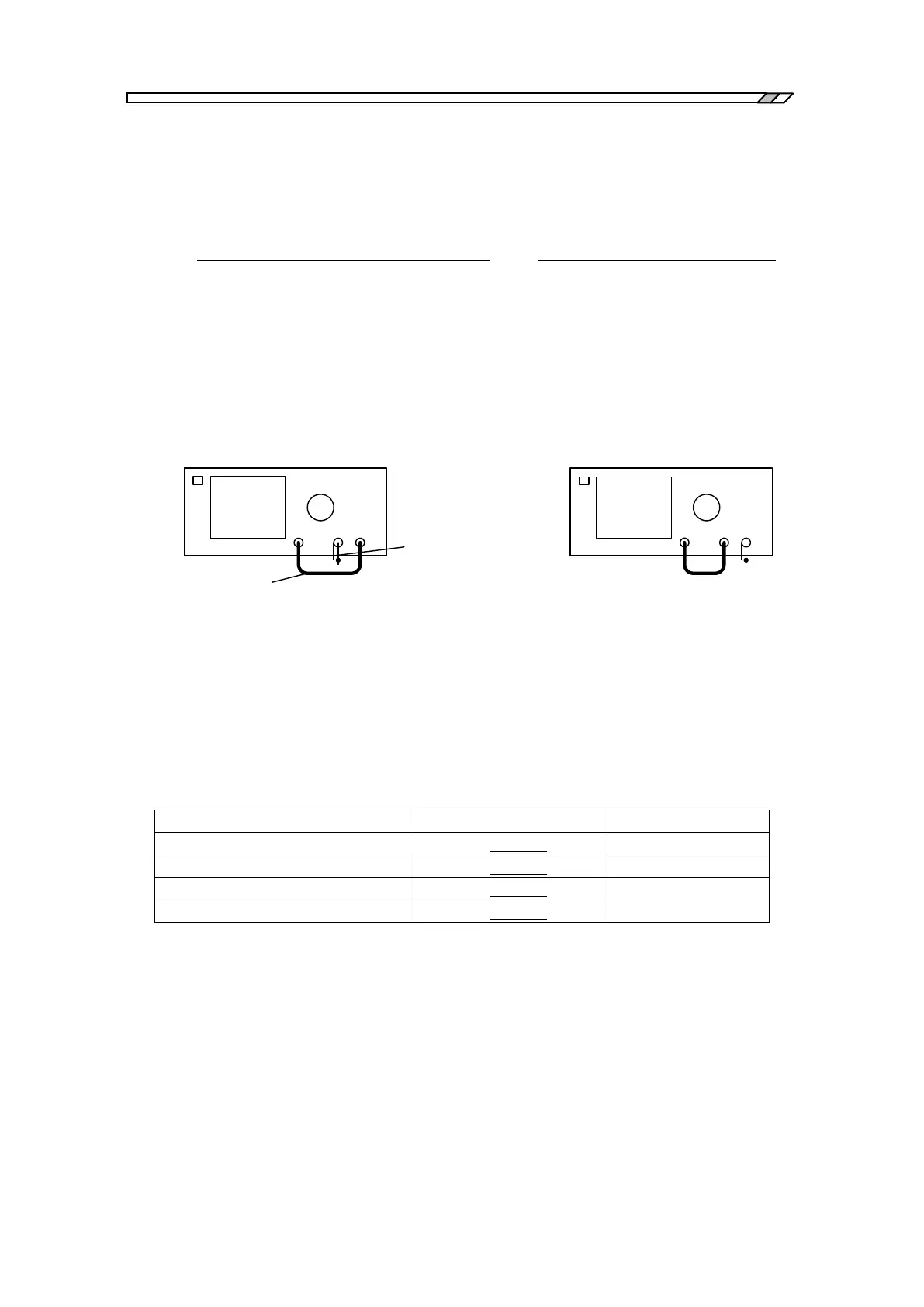

b) Connection
FRA5087
BNC-BNC
coaxial cable
BNC
shorting plug
OSC CH1 CH2
FRA5087
OSC CH1 CH2
CH1 dynamic range measurement CH2 dynamic range measurement
c) Procedure
Set the analyzer mode as follows and sweep with the FRA5087.
Read the minimum dBR measuring results from the LCD screen.
Analyzer mode for measuring CH1 dynamic range: CH2/CH1
Analyzer mode for measuring CH2 dynamic range: CH1/CH2
d) Judgment
Connection
Minimum measured value
Tolerance
CH1 (10 Hz to 1 MHz)
dBR= dB
140 dB typ
CH2 (10 Hz to 1 MHz)
dBR= dB
140 dB typ
CH1 (1 MHz to 10 MHz)
dBR= dB
80 dB typ
CH2 (1 MHz to 10 MHz)
dBR= dB
80 dB typ
