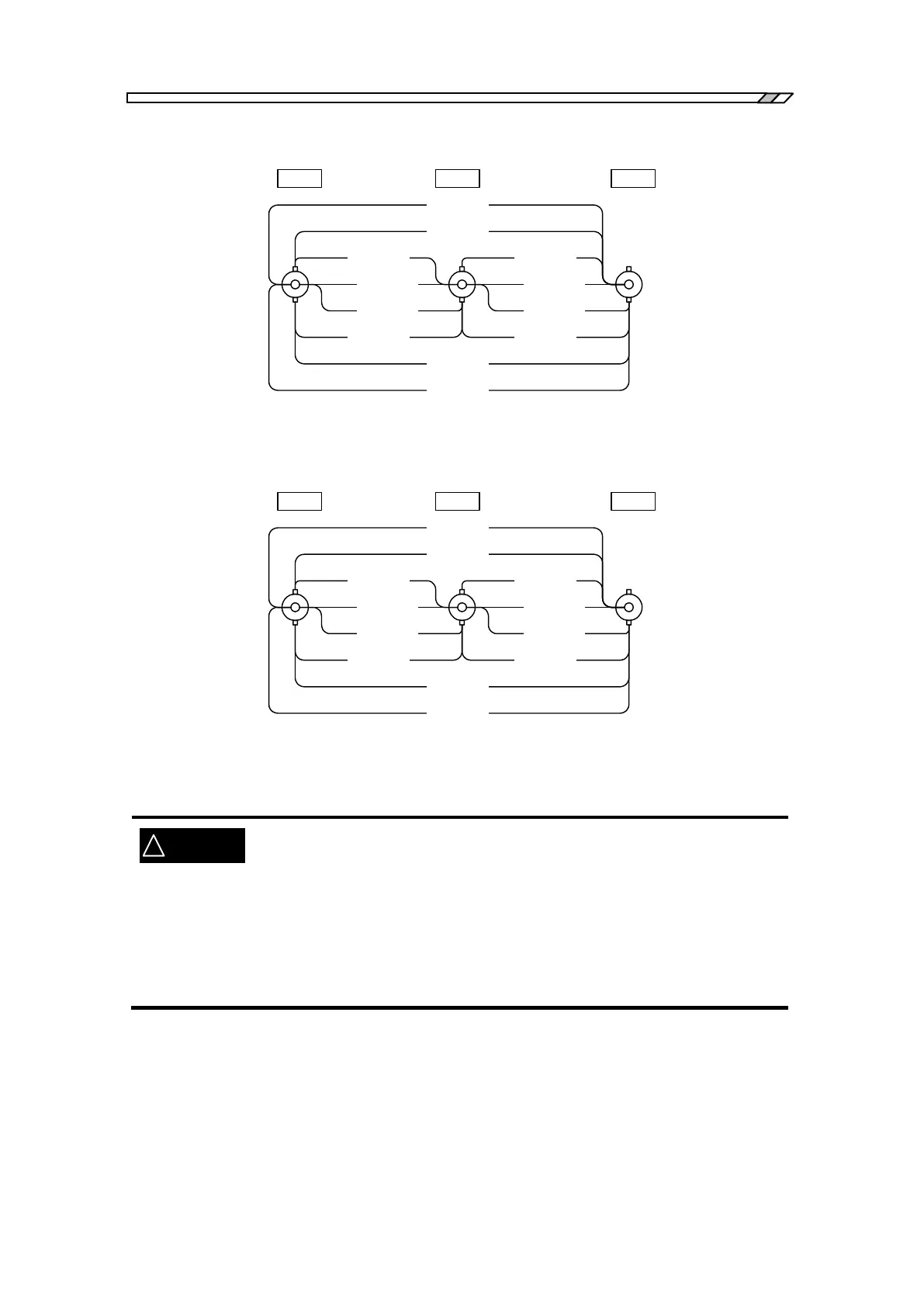

3.4 Insulation breakdown voltages of input and output voltages

FRA5087

3-20

OSC CH1 CH2

250Vrms

Fig. 3-3 Oscillation section-analysis section inputs isolation voltage specifications

(when accompanying BNC cable is used)

OSC CH1 CH2

30Vrms

Fig. 3-4 Oscillation section-analysis section inputs isolation voltage specifications

(when a cable other than the accompanying cable is used)

WARNING

！

 Do not apply excessive voltages between insulated signal terminals. You

could be suffered from electric shocks, if excessive voltages are applied

between these terminals leading to dielectric breakdown.

 You could be suffered from electric shocks when you measure high voltage

circuit signals. Use accessory coaxial cables of the insulation type by all

means, so that you cannot directly touch metallic portions of the BNC

connectors at the analyzer input terminals.
