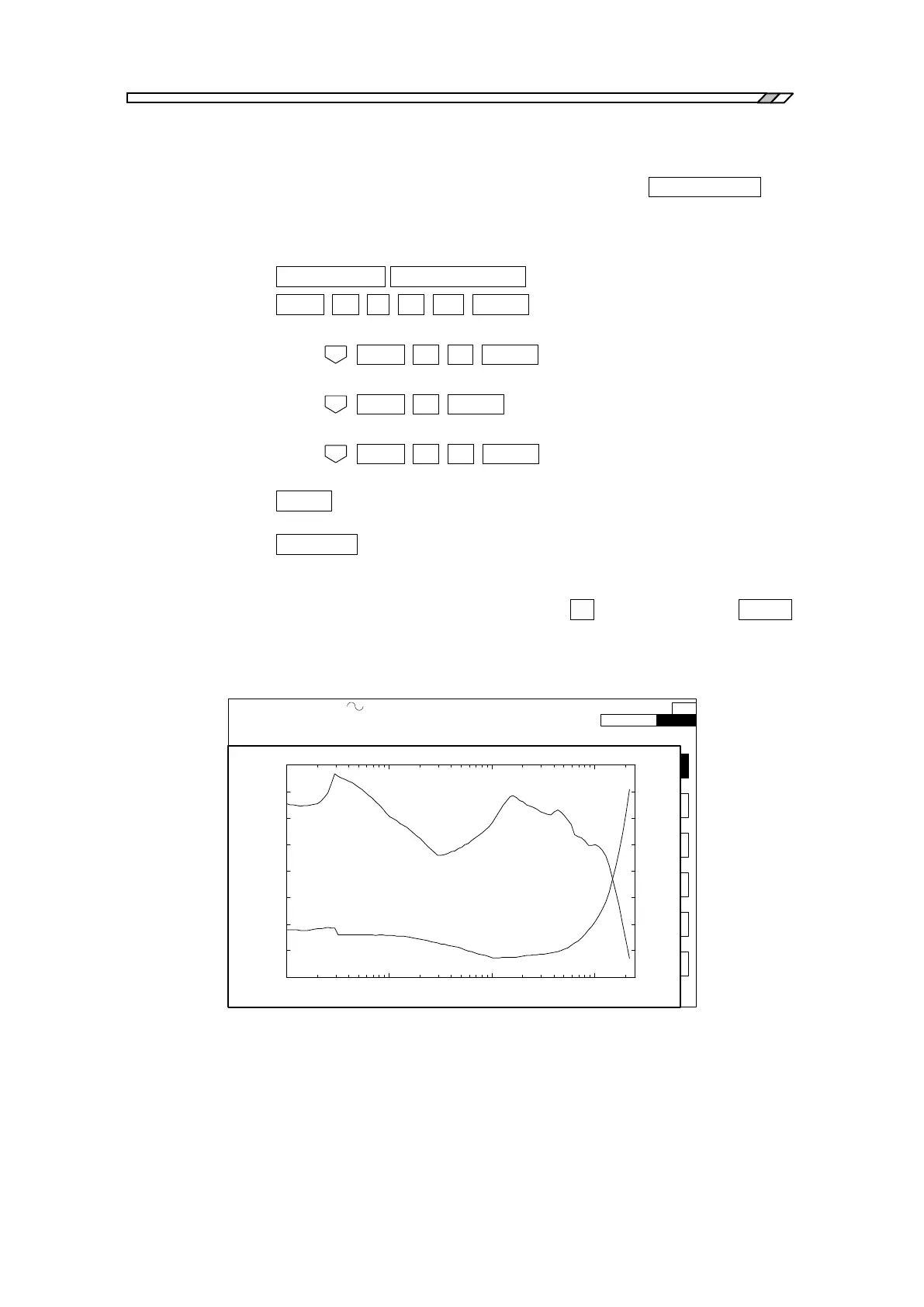

3.5 Examples of basic operations
FRA5087
2) Setting FRA5087
Execute the key entries by the following sequence. Using the BASIC SETUP key
facilitates the important item settings, and allows you to observe the current setting
condition at a glance.
・Sweep maximum frequency setting (2.2 MHz)
BASIC SETUP CURSOR TO TOP(function keys)
OPEN 2 . 2 M ENTER
・Sweep minimum frequency setting (1 kHz)
ITEM OPEN 1 k ENTER
・AC amplitude setting (7 Vpeak)
ITEM OPEN 7 ENTER
・Integration cycle setting (10 cycles)
ITEM OPEN 1 0 ENTER
・Deleting menu
CLEAR
・Setting oscillator output “on”
AC/DC ON
3) Sweep measurement ･･･ Press either the SWEEP UP key or the SWEEP DOWN
key.
When you start measurement, the measurement data start to come out gradually as a
graph on the display.
OSC: 2.2000000000MHz 7.00 Vpeak DC 1.00 V INTEG: 10cycle HMNC: 1
SWP: 100steps/sweep CPRSN:OFF SLSWP:OFF ANAL:CH1/CH2 EQL:OFF
SWEEP STOP
1
2
3
4
5
6
PHASE[deg]
FREQUENCY(Hz)
GAIN[dB]
1k 10k 100k 1M
-20m
-10m
0
m
10m
20m
30m
40m
50m
60m
1k 10k 100k 1M
-0.08
-0.07
-0.06
-0.05
-0.04
-0.03
-0.02
-0.01
0
