4.2 Sweep
4-36 WF1946B

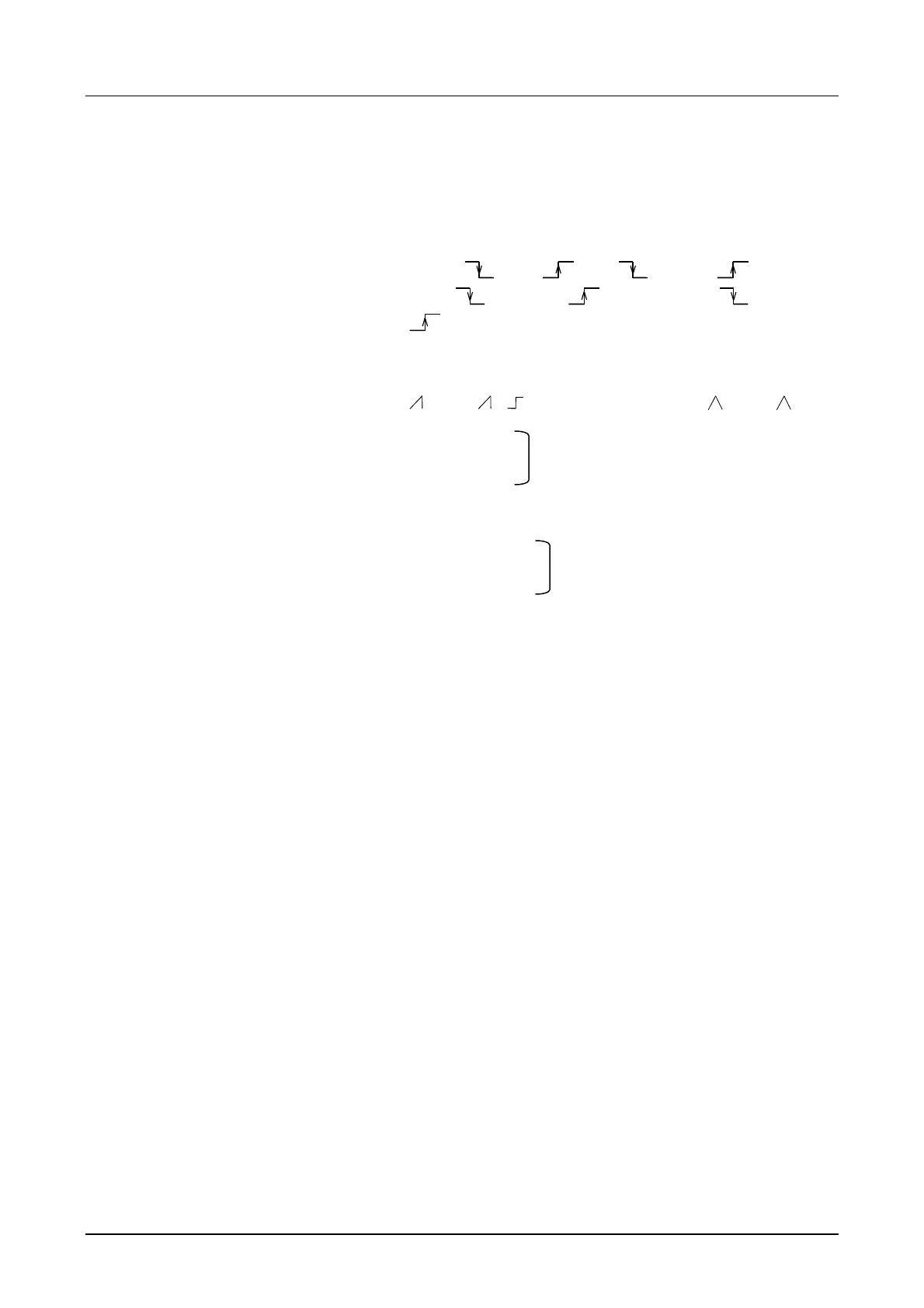

 Summary of the sweep setting items
• The following summarizes the items that need to be set during a sweep operation (in the SWEEP menu).
TYPE (sweep target) [FREQ, AMPTD, OFFSET, PHASE, DUTY]
SOURCE (trigger source) CH1: [EXT
, EXT , INT [s], INT [s]]
CH2: [EXT CH2
, EXT CH2 , EXT CH1, INT [s],
INT
[s]]
* Set when the sweep mode is SINGLE or GATED
MODE (sweep mode) [SINGLE, CONT, GATED]
FUNCTION (sweep waveform) [LIN , LOG , , LIN SIN, LOG SIN, LIN , LOG ]
START (sweep start value)/STOP (sweep stop value)
or Sweep range setting
CENTER (sweep center value)/SPAN (sweep width)
TIME (sweep time) [s]
STOP-LEVEL
Set when the sweep mode is GATED
PHASE (phase when oscillation starts) * ENTRY menu
MARKER (Marker value)
MKR→CTR (Copying of the marker value to the center value)
OPER-COMMON (simultaneous sweep operation of both channels) [OFF, ON]
• Sweep operations
• Main operation
START (sweep start)
STOP (sweep end/sweep start state)
*For subsequent operation when the sweep has been completed, the state is reset to the sweep start state.
PAUSE (sweep pause/restart)
• In the SWEEP menu
START-STATE (sweep start state)
STOP-STATE (sweep stop state)
