NF WF1946B - Sweep Value and Z-MARKER;SYNC;X-DRIVE Outputs

4.2 Sweep
4-40 WF1946B

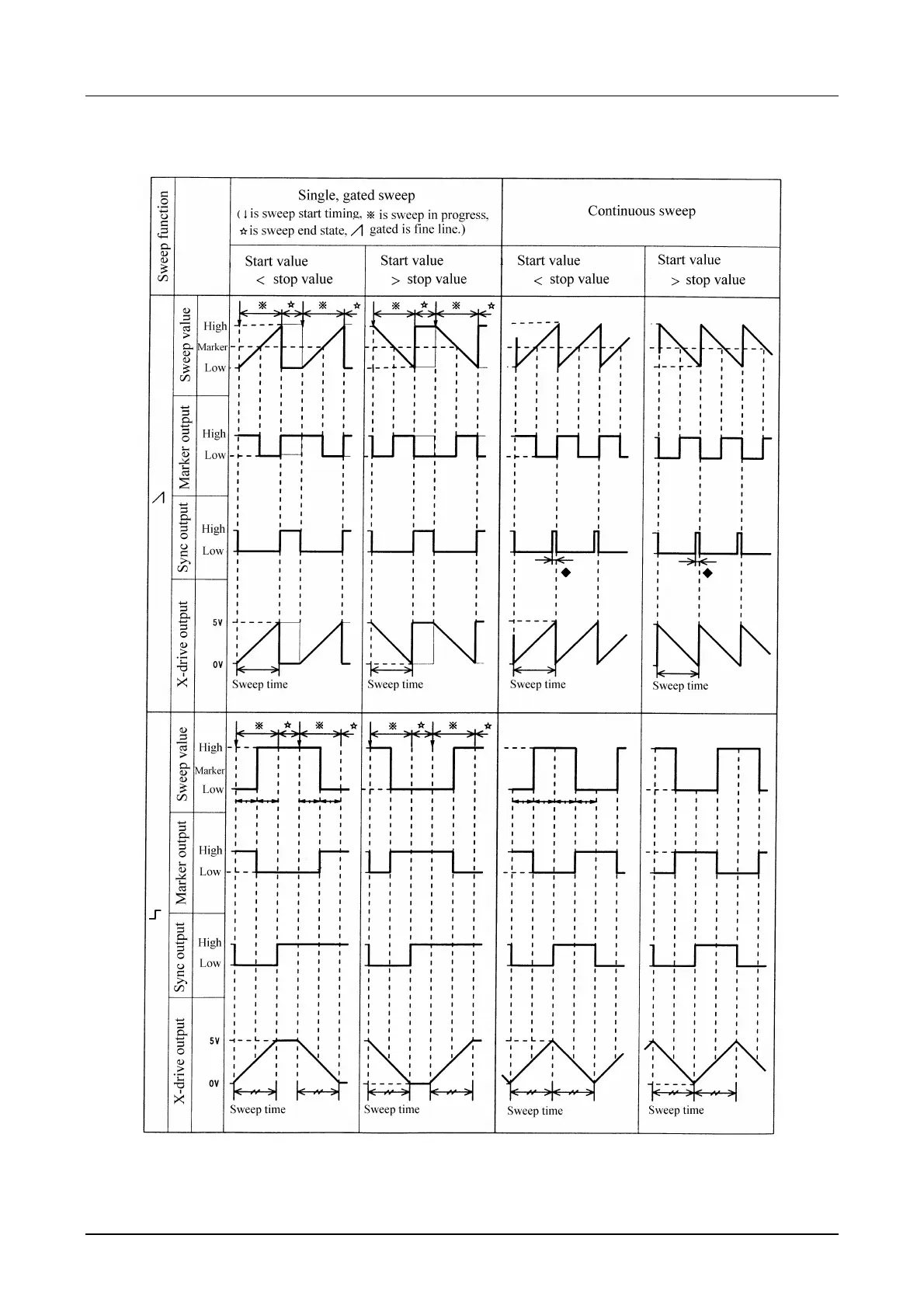

 Sweep value and Z-MARKER/SYNC/X-DRIVE outputs
◆ Approximately 200 to 250 µs when the oscillation mode of both CH1 and CH2 is sweep or modulation,
approx. 100 to 125 µs at other times.
