3.2 Input and output connections
3-6 WF1946B

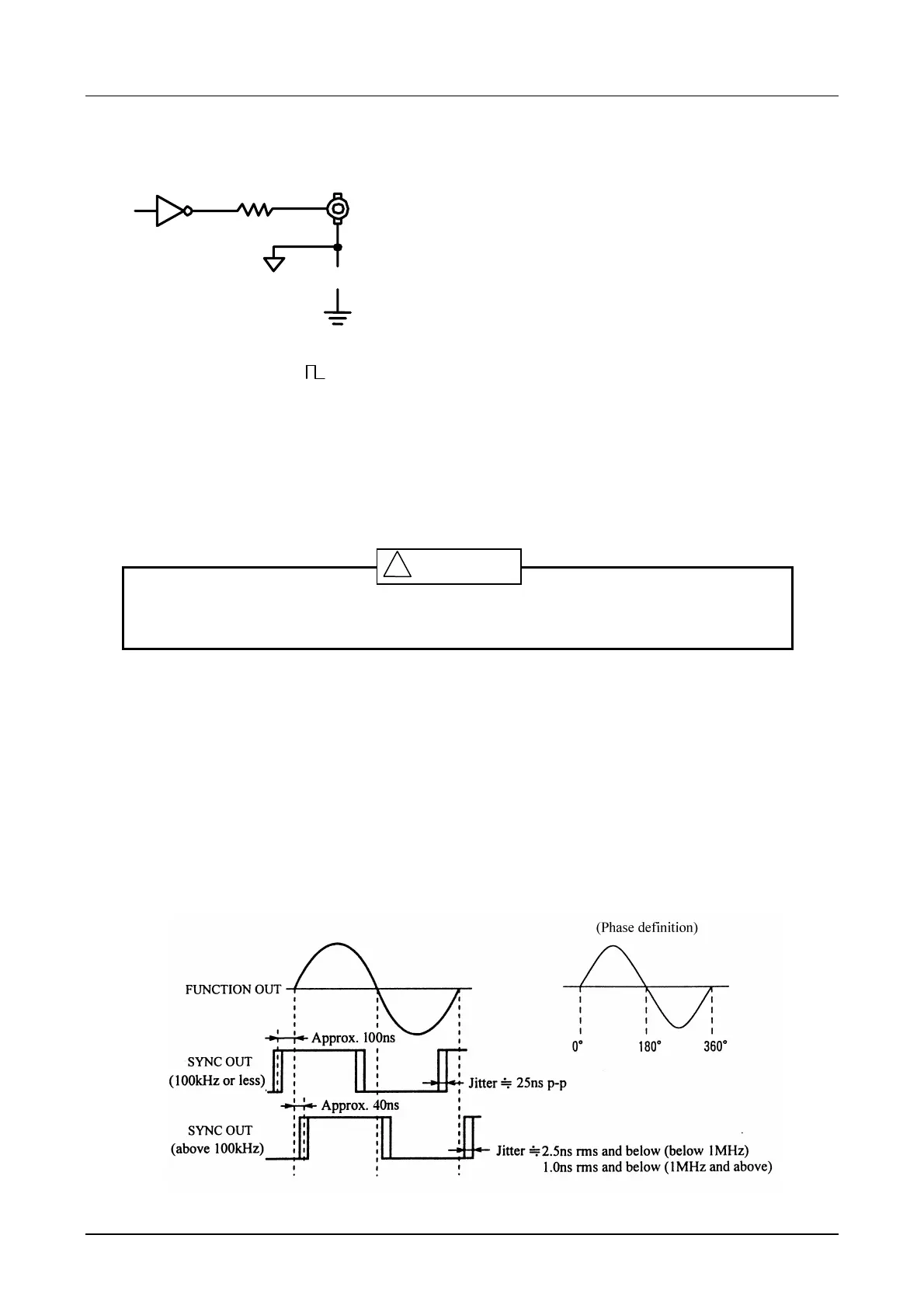

Sync signal output (SYNC OUT)
50Ω
SYNC OUT
±42 Vpeak
Output waveform :
Output voltage : 0 V/+5 V (open)
Output impedance: 50 Ω, unbalanced
Load impedance: More than 45 Ω
Status at output off : High impedance
Ground : Connected to signal ground (floating from chassis)
Avoid shorting the output or applying an external signal. The unit can be damaged.
・
Output connection note
The SYNC OUT impedance is 50 Ω. By using coaxial cable with 50 Ω characteristic impedance for
connection to other equipment, waveform disturbance can be reduced. Although 50 Ω termination is
possible, the high level voltage is reduced by about half.
・
Waveform and sync signal output relationship (Waveform phase definition)
(1) Continuous oscillation mode (NORMAL)
① Sinewave
