NF WF1946B - Rear Panel

3.1 Panel description
3-4 WF1946B

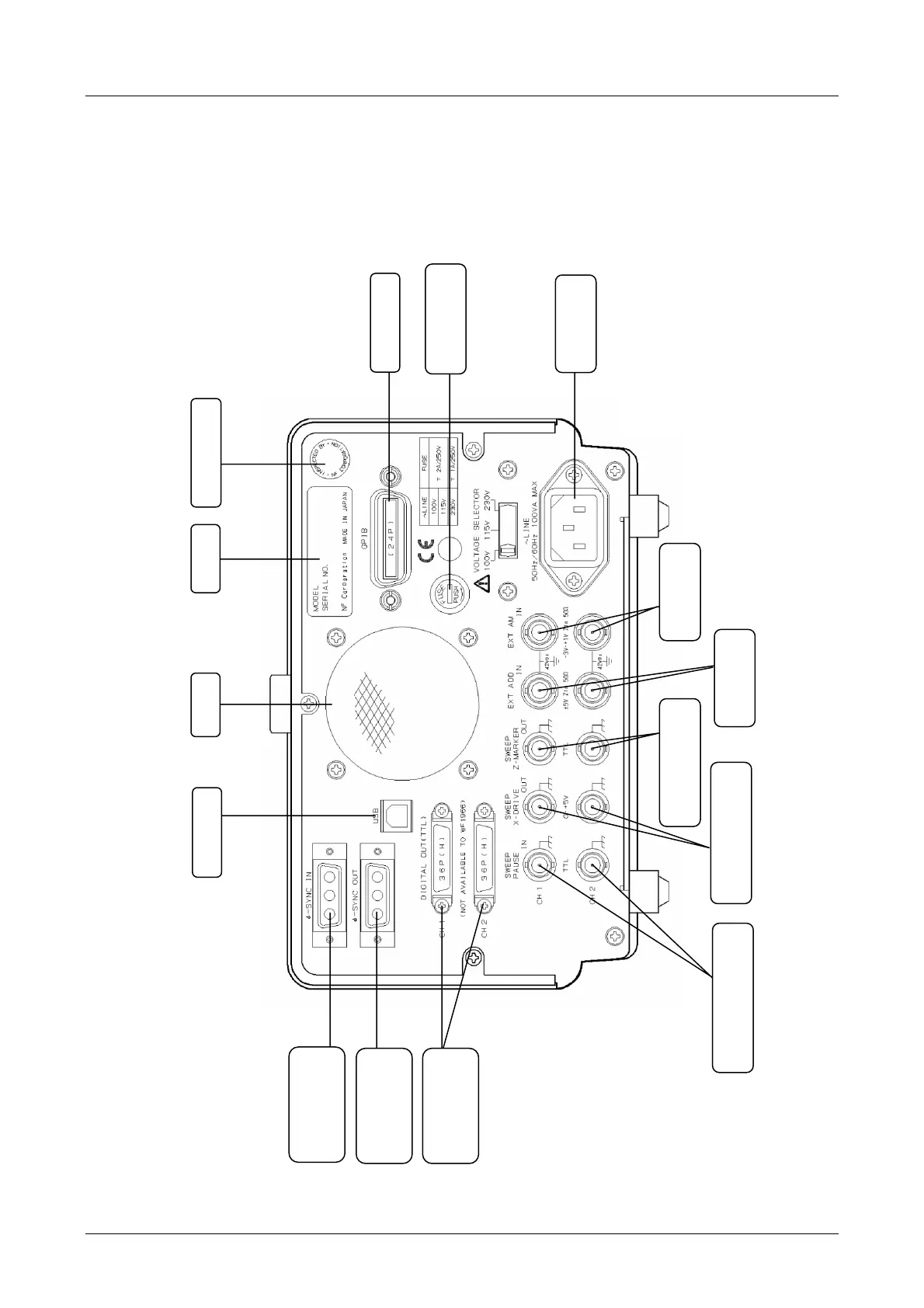

 Rear panel
Inspection label
Nameplate
Fan exhaust
USB connecter
Sync transfer input (1991 option,
p
a
g
e 3-12
)
Sync transfer output (1991 option,
p
a
g
e 3-12
)
Digital output (1992A option, page 3-14)
GPIB connector
Fuse holder (page 2-6)
Power supply input (page 2-4)
External AM input (page 3-12)
External add input (page 3-11)
Sweep X-DRIVE output (page 3-10)
Sweep stop/restart input (page 3-10)
Sweep marker output (page 3-11)
