4.3 Modulation
WF1946B 4-55

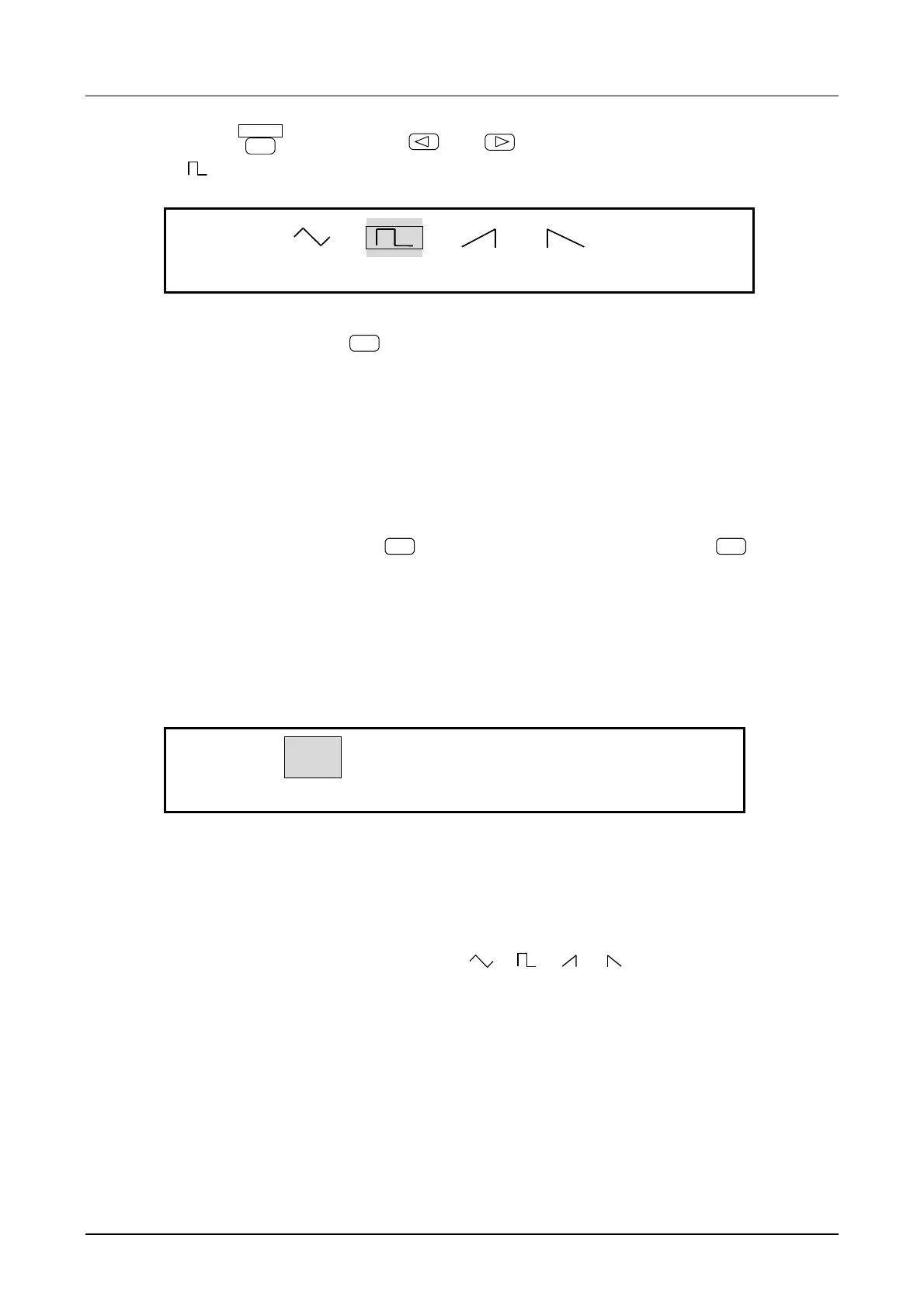

② Press the
ENTER
key, then use the and keys to produce the following display
(
flashes).
ＳＩＮ
ＰＭ：ＴＹＰＥ ＤＥＶＩＡＴＩＯＮ ＦＲＥＱ ＦＵＮＣＴＩＯＮ
③ After selecting, press the
EXIT
key to release the function setting mode.
The above completes phase modulation setting.
Other operations:
• When the oscillation mode is changed to modulation (MODU), modulation occurs at the setting at that
time point.
To stop modulation : Press the
STOP
key. Resume modulation by pressing the
START
key.
• During modulation, if the oscillation mode of the other channel is changed, modulation stops.
• To start or stop modulation of both channels simultaneously on a manual operation or via
remote control (GPIB or USB), set both channels to sweep mode and set OPER-COMMON to on.
ＯＦＦ ＯＮ
ＰＭ：
3
ＦＵＮＣＴＩＯＮ ＯＰＥＲ－ＣＯＭＭＯＮ
• Setting items at phase modulation (MODU menu)
TYPE: PM
DEVIATION (phase deviation) [deg]
FREQ (modulation frequency) [Hz]
FUNCTION (modulation waveform) [SIN,
, , , ]
OPER-COMMON (operation in both channels) [OFF, ON]
